Description

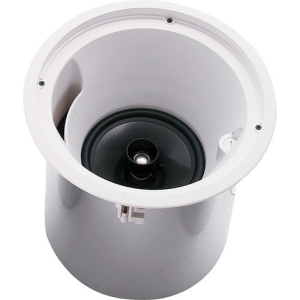

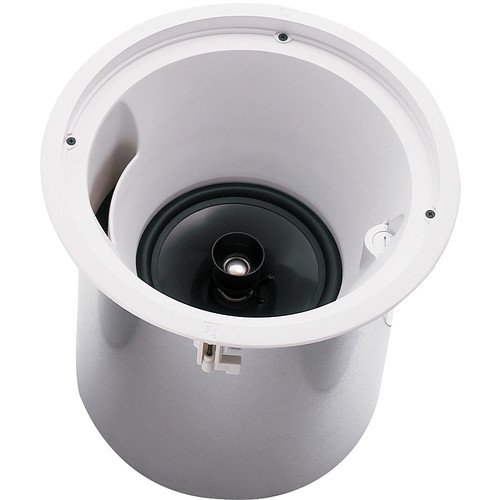

The Electro-Voice EVID C8.2HC is an advanced coaxial installation speaker perfect for environments with high ceilings. This passive 8″ speaker is designed to provide clear and robust voice and music reproduction, ensuring high-quality audio experiences in expansive spaces. It features dual integrated waveguides to deliver a 75° coverage pattern, making it ideal for high-ceiling installations. With a continuous power capacity of 75W and dual power options for 70V, 100V, or 8-Ohm systems, this speaker caters to a wide range of audio needs.
Features
- 8″ two-way coaxial installation speaker suitable for high ceilings
- Dual integrated waveguides for 75° coverage pattern
- Enhanced frequency response for background music or announcements
- Waveguide-coupled titanium-coated dome tweeter for smooth high-frequency dispersion
- Low-loss transformer for 70V/100V or 8-Ohm bypass operation
- Baffle wattage selector for easy tap selection
- Overload protection for full-bandwidth
- Integrated ported enclosure for optimized bass
- Durable powder-coated perforated grille
- Tile bridge for safe drop ceiling installation
Specifications
| Active or Passive |
Passive |
| LF Driver |
8″ / 20 cm Polypropylene Cone in Waveguide |
| HF Driver |
1″ / 2.5 cm Titanium-Coated Mylar Dome Tweeter |
| Frequency Range |
50 Hz to 20 kHz (-10 dB) |
| Coverage Pattern |
75° Nominal above 1 kHz |
| Power Capacity |
75W Continuous / 300W Peak at 8 Ohms, up to 60W at 70/100V |
| Maximum SPL |
112 dB Continuous / 118 dB Peak |
| Axial Sensitivity |
93 dB SPL (1 W / 1 m) |
| Nominal Impedance |
8 Ohms (Transformer Bypass) |
| Transformer Taps |
70V: 7.5, 15, 30, 60W; 100V: 15, 30, 60W; Bypass: 8 Ohms |
| Crossover |
Frequency: 2.6 kHz, Slope: 12 dB/Octave |
| Construction Material |
Baffle: UL 94V-O Rated ABS, Backcan: Zinc-Plated Steel, Grille: Powder-Coated Steel |
| Inputs |
Removable 4-Pin Euroblock with Screw Terminals and Loop-Thru |
| Max Wire Gauge |
12 AWG |
| Safety Rating |
UL 1480, UL 2043 |
| Cutout Diameter |
12.7″ / 32.2 cm |
| Dimensions |
12.6 x 11.9″ / 32.0 x 30.3 cm |
| Weight |
13.2 lb / 6 kg |
Packaging Info
| Package Weight |
40.85 lb |
| Box Dimensions (LxWxH) |
34 x 18 x 17″ |
