Audio Processor

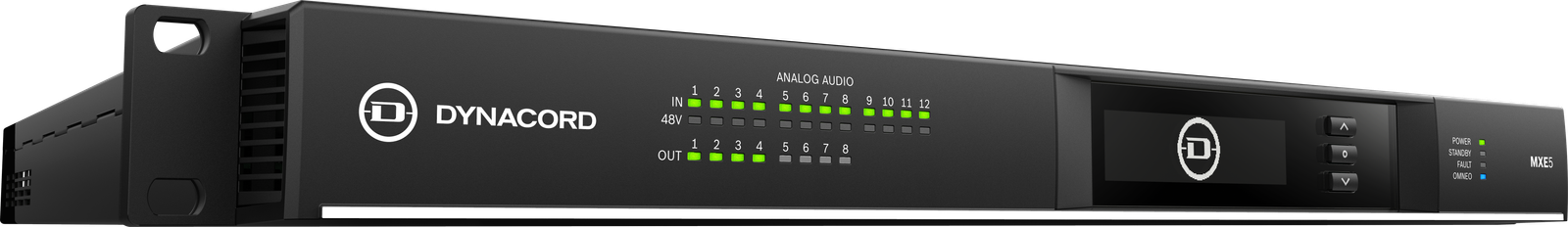

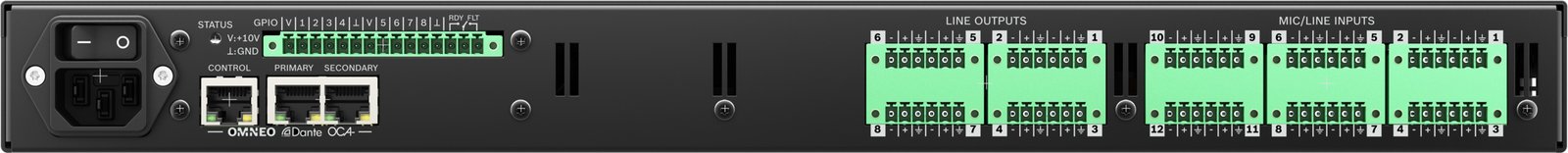

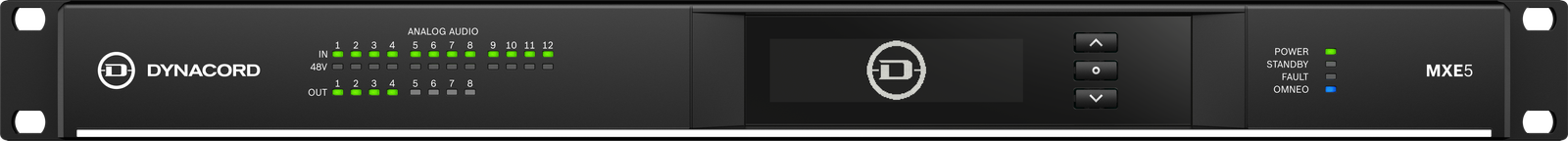

Dynacord MXE5 Audio Matrix Mix Engine 24×24 with Dante Networking

Dynacord

AED 18438 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: MXE5 Categories: , , Brand:

The MXE5, part of the MXE matrix mix engine series, features a 24 x 24 crosspoint audio matrix for routing and mixing, including 12 analog mic/line inputs, eight line outputs, and 24 Dante audio channels. It also acts as a communication hub for IP peripherals, managing system-wide commands effectively.

Description

MXE5 Matrix Mix Engine

The MXE5 is the first member of the MXE matrix mix engine series. This 24 x 24 crosspoint performance audio matrix offers both routing and mixing functionalities, equipped with 12 analog mic/line inputs, eight line outputs, and 24 Dante audio channels. It serves as a communications hub for all IP-based peripherals, providing comprehensive supervision of all system-wide commands.

Features

  • Delivers the highest audio quality for both background music (BGM) and live performances
  • System-wide control and supervision for a wide range of applications
  • Advanced feature set provides professional audio mixing and routing capabilities
  • Complete integration with SONICUE sound system software

Specifications

Specification Details
Matrix size 24 x 24
Sampling rate 48 kHz / 96 kHz
Dante in/out 24/24
Analog inputs 12 mic/line
Analog outputs 8
Max. input/output level + 22 dBu
Signal to noise ratio (inputs/outputs) > 118 dB
Signal processing 32/40-bit floating point
THD+N < 0.002 %
Latency (analog in/out, 48 kHz / 96 kHz) < 0.45 ms / < 0.22 ms
Control ports 8 GPIO
Dimensions (w x h x d) 483 x 43.5 x 471 mm (19″, 1 RU)
Weight 6.0 kg (13.2 lbs)
