Description

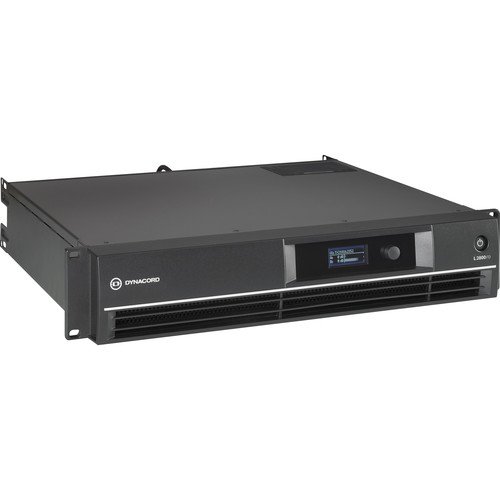

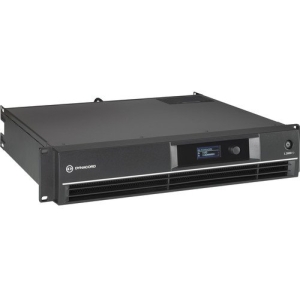

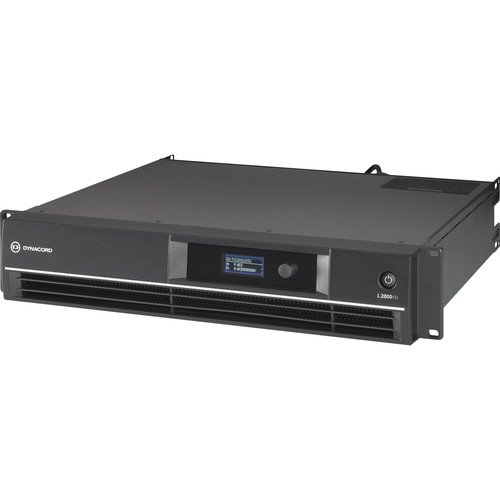

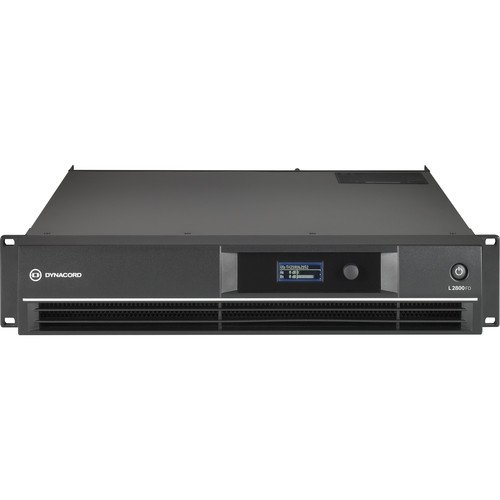

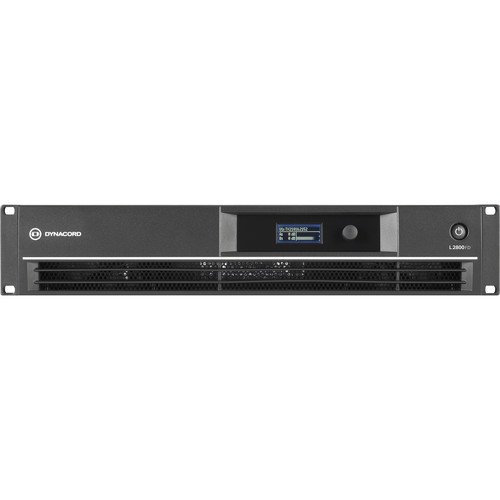

Dynacord L2800FD L-Series FIR-Drive Power Amplifier
The Dynacord L2800FD L-Series FIR-Drive Power Amplifier is engineered to deliver 2800W of high performance to meet the rigorous demands of live sound environments. Designed for performing musicians and sound engineers, it excels in music clubs, community halls, performance centers, and sports venues. With SpeakOn connectors and advanced DSP capabilities, it ensures optimal audio quality and reliable operation.
Key Features
- 2800W power output with sophisticated protection circuitry
- FIR Drive technology for professional speaker processing
- Robust power supply and linear amp design for demanding environments
- SpeakOn connectors for secure and convenient wiring
- On-board DSP with multi-band PEQs, limiters, and delay per channel
- True channel grouping control with additional DSP capabilities
- Control software supporting up to 16 amp channels simultaneously
- Engineered in Germany for uncompromised reliability
Specifications
Specification |
Details |
Load Impedance |
2 Ohms, 2.7 Ohms, 4 Ohms, 8 Ohms |
Maximum Output Power |
2300 W (2 Ohms), 1400 W (4 Ohms), 700 W (8 Ohms) |
Voltage Gain |
32.0 dB (ref 1 kHz) |
Frequency Response |
10 Hz to 21 kHz (±1 dB) |
Signal-to-Noise Ratio (SNR) |
> 107 dB (A-weighted) |
Cooling |
Front-to-rear, 3-stage fans |
Dimensions |
3.5 x 19.0 x 18.2″ / 88.9 x 482.6 x 462.3 mm |
Weight |
35.7 lb / 16.2 kg |
Power Specifications
Specification |
Details |
Power Requirement |
120 VAC, 60 Hz |
Power Consumption |
700 W (1/8 maximum output power @ 4 Ohms) |
Mains Fuse |
T20AH |
