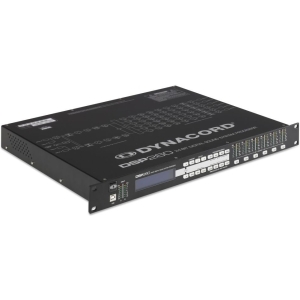

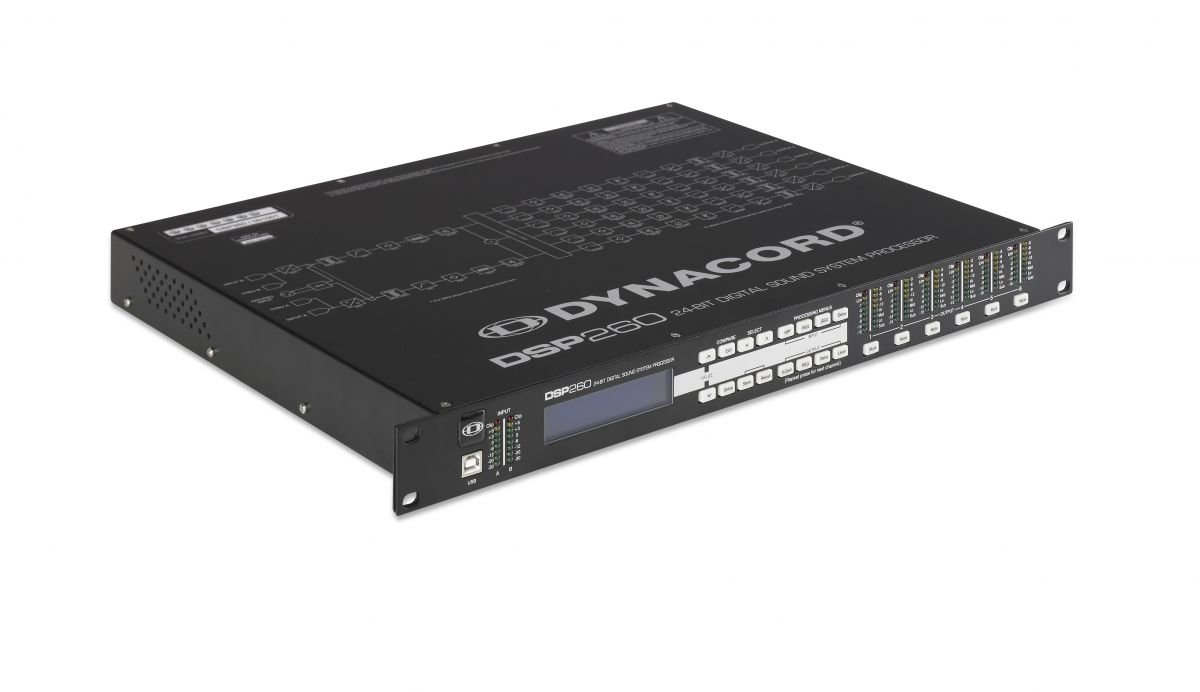

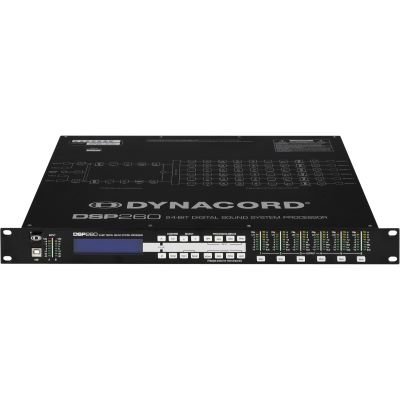

Dynacord DSP 260 2-In 6-Out Digital Sound System Processor

DSP 260 Digital 2-in-6 Sound System Manager

The DSP 260 digital sound system manager by DYNACORD, upholds a legacy of digital signal processing innovation. Built on modern hardware, this advanced system manager simplifies the construction of active multi-way systems with its blend of trusted and new algorithms, all offered at a competitive price point.

Utilizing 24-bit sigma-delta AD/DA converters alongside a 32-bit floating-point signal processor, the DSP 260 achieves a dynamic range of 111 dB. The system features two analog inputs, a digital stereo input in AES/EBU format, and a -6 dB pad switch to safeguard against overloads when interfacing with high-output mixing desks. Equipped with six electronically balanced, individuallly mutable outputs on XLR sockets, and front-panel LED level meters for all inputs and outputs, this manager ensures complete control and monitoring of your audio setup.

Users have the flexibility to configure systems directly on the device via built-in controls and display, or through intuitive PC-based editing software. Supporting various system configurations such as 3-way stereo and 4-way mono, the DSP 260 also comes with factory presets compatible with DSP-244 loudspeaker systems.

The DSP offers comprehensive digital signal processing with parametric and graphic EQs, delays, crossovers, and limiters per output channel. Its RS-232 interface facilitates master/slave operations of multiple units and GPI switching. Additionally, a USB interface provides straightforward connectivity and control using a PC.

With a variable parameter lockout feature, you can restrict access to certain settings, ensuring secure operation – a valuable feature for rentals. The DSP 260 stands out for its combination of extensive features, excellent audio performance, and attractive pricing, making it suitable for a range of professional applications.

Key Features
