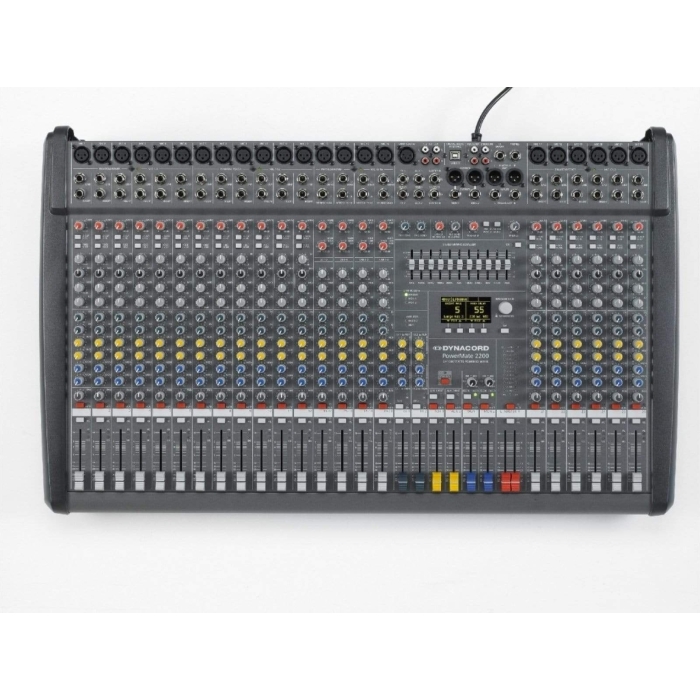

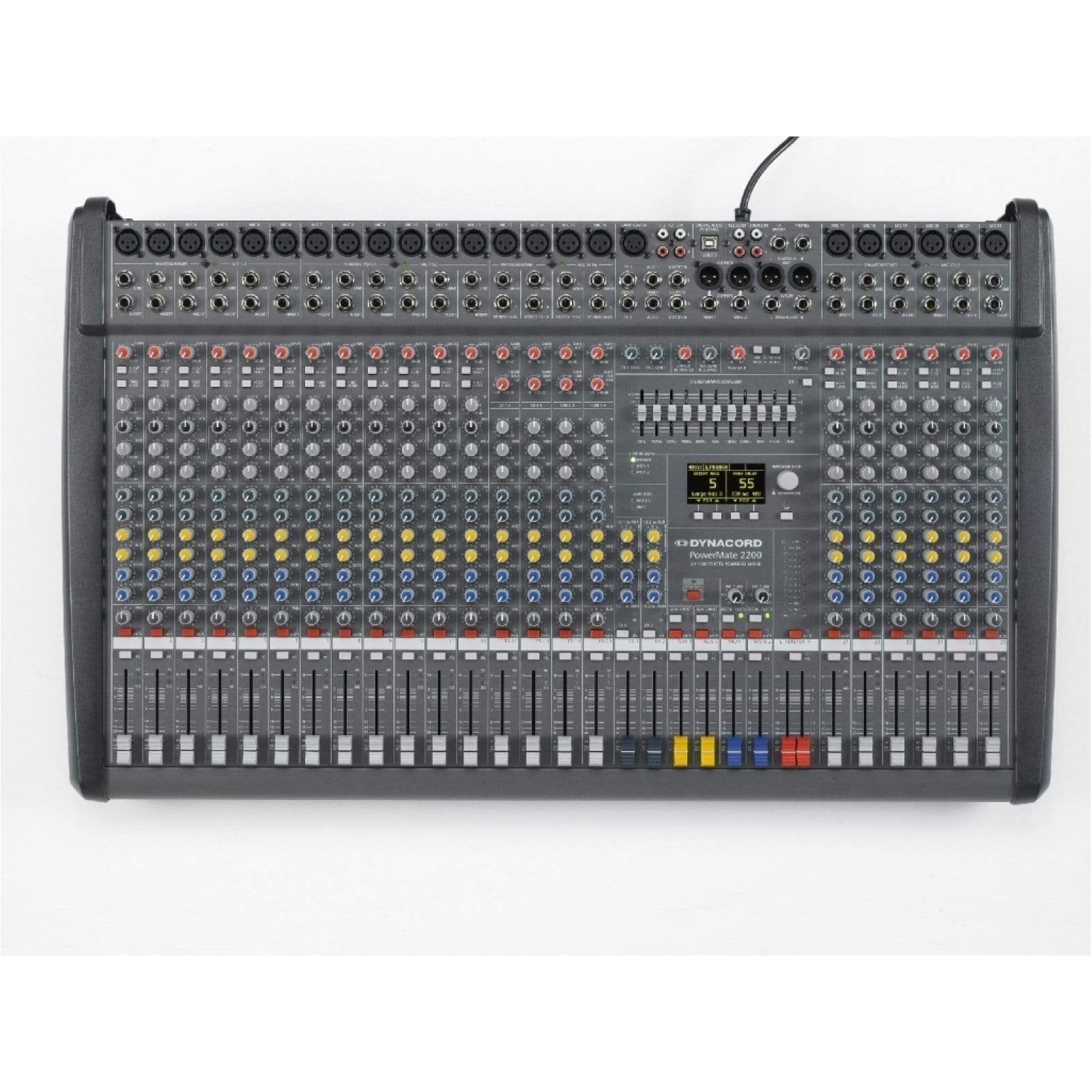

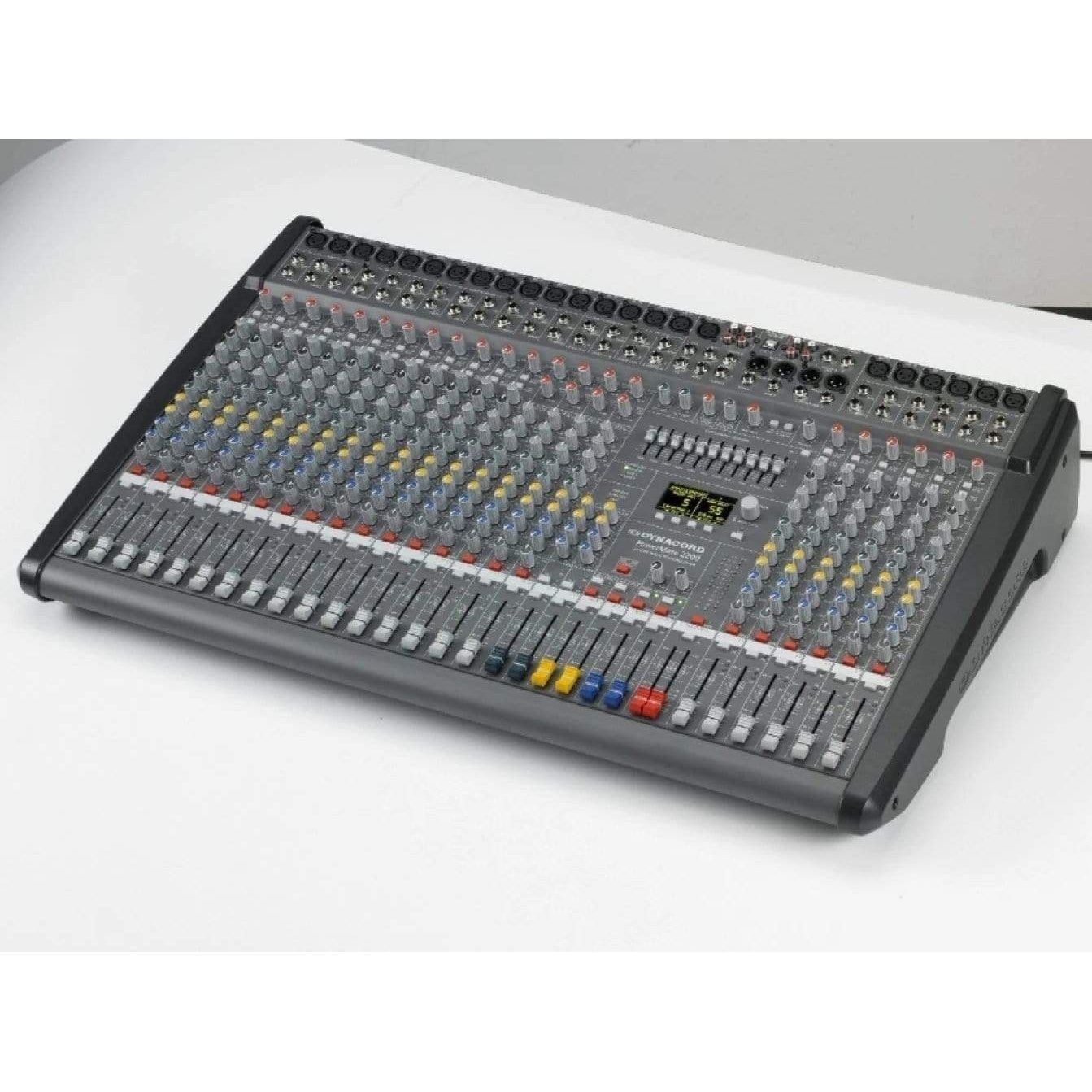

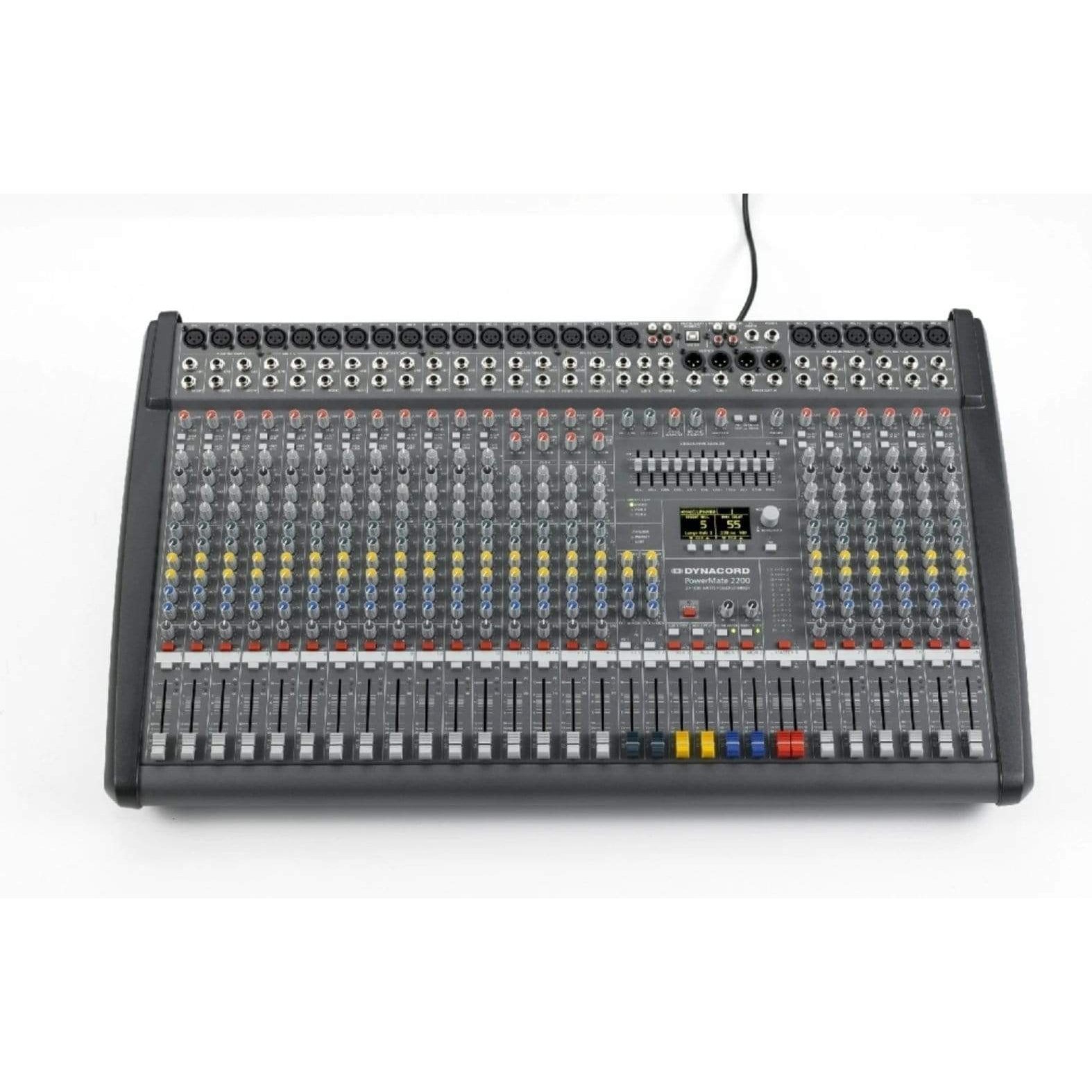

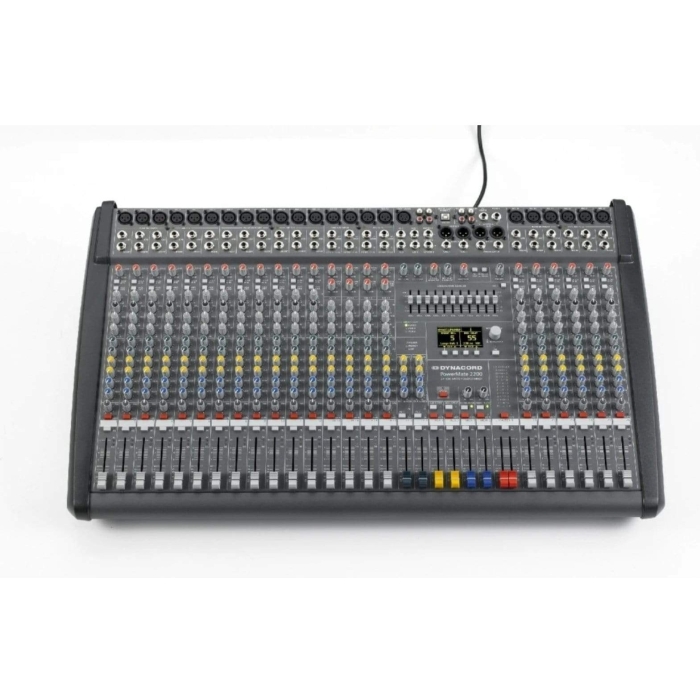

Dynacord CMS 2200-3 18-Channel Mixing Console

The Professional CLASS “D” power mixer caters to the most demanding users with 22 shared microphone inputs, 4 stereo inputs via 6.3mm jack, USB, or RCA, and 6 AUX channels. It features two 24-bit effect processors with OLED displays and 100 effects each, delivering RMS power of 2x 450W at 8 Ohms. The mixer is equipped with three-band equalizers on the first six inputs and stereo inputs, an eleven-band graphic equalizer on output, and extensive low-frequency filters. Comprehensive protections, USB and MIDI interfaces are included, with an optional LID-2200 lid for transport and protection. Made in Germany.
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
Description
The Professional CLASS “D” Power Mix is designed for the most demanding users. It includes 22 microphone inputs (channels 13-20 are shared), and four stereo inputs (with 8 x 6.3mm jacks, USB, or RCA). The mixer also features six auxiliary inputs and dual 24-bit effect processors with OLED displays, offering an extensive library of 100 effects each. With RMS power output of 2 x 450W at 8 Ohms, a three-band equalizer on the first six inputs, another three-band equalizer on stereo inputs, and an eleven-band graphic equalizer on the output, you can tailor the sound to your specific needs. All the necessary protections are included, such as thermal, current, load, and reverse power protections on output connectors. A USB (2.0 to 4 channels simultaneously) and MIDI interface make connectivity easy. For transport, it can be equipped with an optional LID-2200 cover (not included). Proudly made in Germany.
Specifications
Number of Channels | 2 |
RMS Output 8 Ohm (THD 0.1%) | 2 x 450 watts |
RMS Output 4 Ohm (THD 0.1%) | 2 x 900 watts |
RMS Output 2 Ohm (THD 0.1%) | Cannot |
Mono Bridge RMS 8 Ohm (THD 0.1%) | Cannot |
Analog XLR Inputs Symmetrical | 22 |
Analog Jack Inputs Symmetrical | 26 |
Analog Outputs – Terminals | No |
Analog Outputs – Speakon | Yes |
Effect Processor | 2 |
Graphic Equalizer (Output) | Yes – 11 bands |
Power Network | Yes |
Battery Power | No |
Power Input | 2 A |
Net Width (Without Cover) | 818.5 mm |
Net Height (Without Cover) | 155 mm |
Net Depth (Without Cover) | 498.5 mm |
Net Weight (Without Cover) | 18 kg |
Analog RCA Inputs | 6 |
Analog Inputs Jack Nesym. | No |
Analog Inputs | 18 |
Mono Channel Equalizer | 3-band parametric |
Equalizer Stereo Channel | 3-way |
Cooling | Active |
