Stage Monitors

DB Technologies FMX-12 2-Way Coaxial Active Stage Monitor

AED 4012.05 inc VAT.

The MX-12 is a 12-inch powered stage monitor featuring a versatile 2-way wedge design, with a coaxial configuration and custom horn that offer precise, adaptable sound dispersion. Advanced DSP with linear phase FIR filters ensures clear, intelligible audio, while eight onboard presets allow for quick EQ adjustments suited to various stage environments.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: FMX 12 Categories: , , Brand:

Description

MX-12 is a versatile 12-inch powered 2-way wedge stage monitor designed to offer exceptional customization for on-stage requirements. Its coaxial configuration, custom horn design, and advanced DSP with linear phase FIR filters deliver clear and intelligible sound. The FMX-12’s precise horn provides a dispersion pattern of 60° horizontal and 90° vertical, easily reversible by rotating the horn to suit user preferences. The integrated DSP offers eight presets to optimize EQ across various stage environments.

Features

  • Active 2-way stage monitor with 600W RMS power
  • Coaxial acoustic design
  • Advanced DSP with linear phase FIR filters

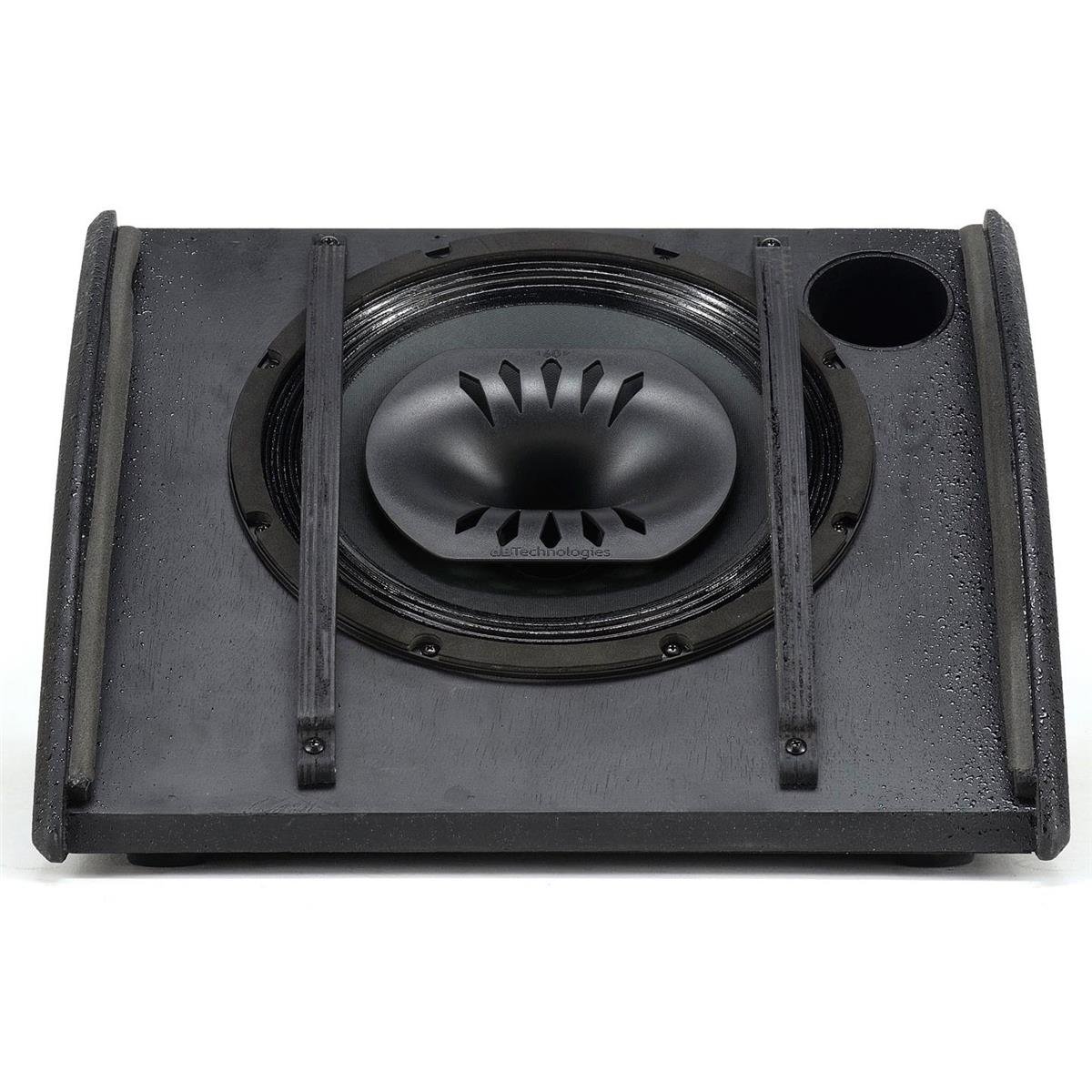

  • Rotatable horn for 60°x90° or 90°x60° dispersion
  • Ultra-precise directivity
  • Unique front-rear grille design
  • Integrated handle on bottom of the cabinet
  • Built-in pole mount on side panel

Specifications

Specification Details
Frequency Response 52Hz to 19kHz (-10dB)
Max SPL 128dB
HF Driver 1” with 1.3” voice coil
Horn Rotatable
Directivity 60°x90°
LF Driver 12” with 2” voice coil
Amplifier Class D with 600W RMS power (1200W peak)
Processor
  • Controller: DSP 28/56 bit
  • System Presets: 8
  • AD/DA Converter: 24-bit/48kHz
  • Limiter: Peak, RMS, Thermal
  • Advanced DSP Function: FIR filters
  • Crossover Frequency: 1740Hz
  • Slope LF/HF: 24dB/octave
Cabinet Material Plywood
Cabinet Design Multifunctional Wedge
Pole Mount 36mm on side panel
Handles 1 integrated into bottom side of cabinet
Dimensions 18.3” x 11.69” x 17.48” (465 x 297 x 444 mm)
Weight 30.6 lbs. (13.9 kg)
