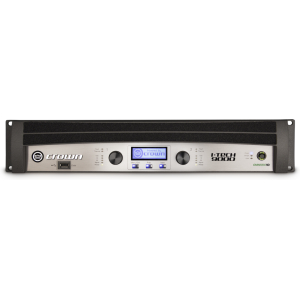

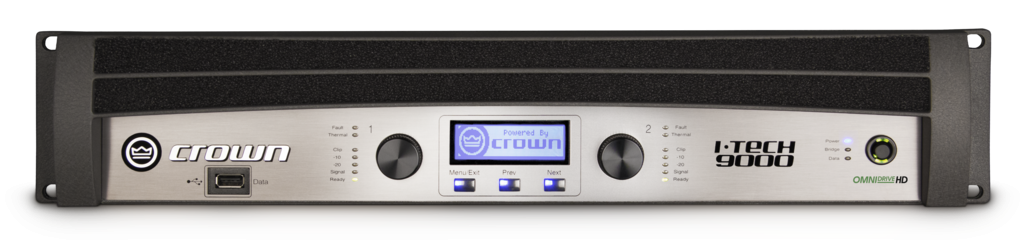

Crown 2-Channel 3500W Power Amplifier IT9000HD with DSP Processing

Inside and out, the I-Tech HD is one of the most technologically advanced professional touring amplifiers on the market today. Building on the decades of innovation, invention, and insight Crown is known for, the I-Tech HD features five new patents – three on the power supply alone – giving you an amp that goes well beyond the expected. At the heart of the new I-Tech HD is the BSS OMNIDRIVEHD™ processing engine. Four times faster than its predecessor and featuring Linear Phase FIR filters and LevelMAX™ limiters, OMNIDRIVEHD provides unmatched clarity and sonically pure signal processing.

Features

Innovation

• BSS OMNIDRIVEHD™ DSP processing with IIR filters and linear phase FIR filters
• Covered by five patents
• Fan has true tachometer feedback for fan fault protection and precise control over thermal performance
• Includes SLM (Sweep Load Monitoring) with system-level diagnostics

Performance

• Ultra smooth processing by onboard high-definition BSS OMNIDRIVEHD DSP with 24-bit, 192kHz Cirrus Logic SHARC A/D and D/A converters
• LevelMAX™ peak voltage and RMS power limiters provide smooth and accurate response
• True Ethernet backbone – fast, reliable and scalable
• High common-mode rejection eliminates hum and RFI on input cables
• 6th-generation patented Class-I (BCA®) circuitry couples power efficiently to the load

Versatility

• Global Power Supply; universal AC input accepts 100-240VAC, 50/60Hz (±15%)
• Front-panel USB connector for transferring presets
• New software interface based on customer feedback for easier system-level changes

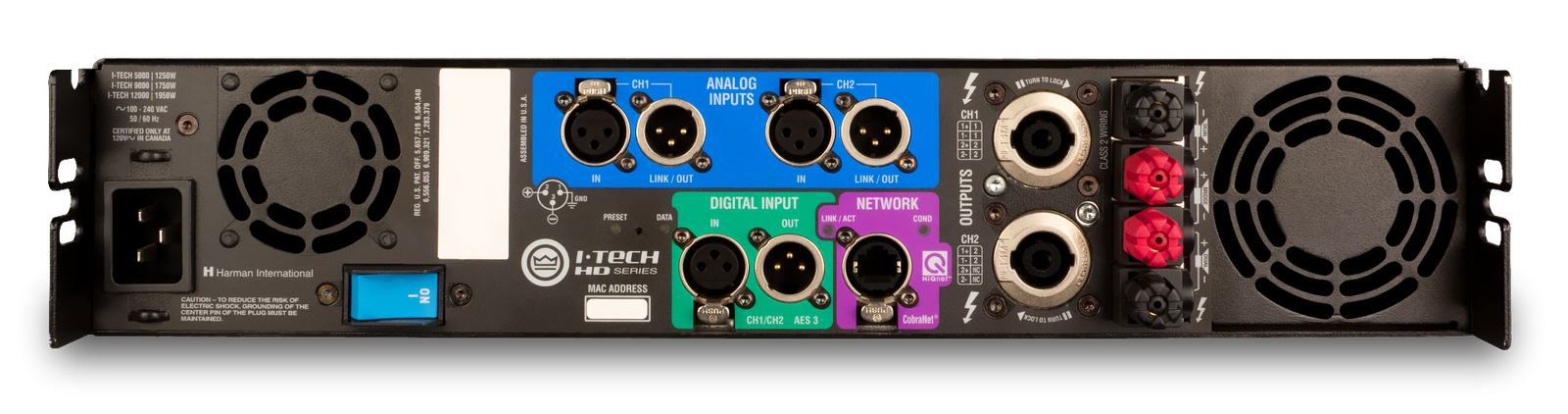

• Connectivity includes analog, AES/EBU, CobraNet®, HiQnet™, and Ethernet
• User-definable front panel security feature
• Inputs are routable to any output (analog, AES, or CobraNet)

Power

• Professional-grade connectors for all inputs and outputs
• Full power-supply voltage available for instantaneous power on demand
• Quality-graded components let you safely drive the amplifier harder
• More total capacitance provides energy reserves for power bursts
• 200Vrms peak output voltage for clean transient peaks

Specifications

Channels	2
Sensitivity	1.4Vrms to 7.75Vrms
Signal to Noise Ratio	>112dB
THD	<0.1%
Intermodulation Distortion	<0.2%
Frequency Response	±0.25dB
Crosstalk	>80dB
Common Mode Rejection	>70dB typical
Power Connector	20A IEC
Dimension (HxWxD)	89mm x 483mm x 411mm 3.5in x 19in x 16.2in
Net Weight	12.7kg (28lbs)
Shipping Weight	16.3kg (36lbs)
