Powered Amplifiers

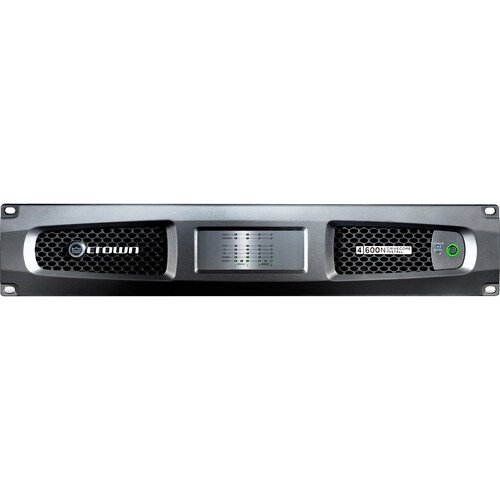

Crown Audio DCI4 600N 4-Channel 600W Network Amplifier for Venues

Crown

AED 18262.17 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DCI4X600N-U-EKFX Categories: , , Brand:

The Crown Audio DCI 4|600N is a versatile 4-channel, 600W amplifier designed for modern installed sound applications. It features analog and digital inputs, network monitoring, programmable GPIO ports, and on-board DSP. Compliant with EN 54-16 for life safety systems, it delivers up to 600W per channel at varying impedances and integrates with Harman’s BLU Link for seamless digital audio transport. The amplifier includes advanced DSP capabilities, recallable presets, and secondary input setups. Rear-panel DIP switches allow easy configuration for different outputs, while independent attenuators provide precise control over each channel.

Description

Crown Audio DCI 4|600N Network Amplifier

Discover the Crown Audio DCI 4|600N, a versatile and compact 4-channel network amplifier designed to cater to the most demanding installed sound applications. This 600W DriveCore Install BLU Link amplifier combines advanced features such as analog and digital inputs, network monitoring, and on-board DSP, making it ideal for hospitality, large venues, and other professional audio markets.

Key Features:

  • Network Monitoring & Control via HiQnet protocol
  • Programmable GPIO ports for versatile control options
  • Integrated DSP for optimal sound processing
  • Direct Drive Constant Voltage for efficient audio transmission
  • Independent channel impedance selection
  • Bridgeable channel pairs for high-power applications
  • Remote on/off control integration into control systems
  • Efficient cooling design with variable speed fans
  • Auto standby mode for energy savings
  • Advanced protection circuits for reliable performance

Specifications:

Specification Details
Number of Channels 4
Power Rating 2 Ohms: 300 W per Channel
4 Ohms: 600 W per Channel, 600 W Bridged
8 Ohms: 600 W per Channel, 1200 W Bridged
16 Ohms: 300 W per Channel, 1200 W Bridged
70 V / 100 V: 600 W per Channel
140 V / 200 V: 1200 W Bridged
Load Impedance / Voltage Parallel/Stereo: 2 / 4 / 8 / 16 Ohms, 70 / 100 V
Bridged/Mono: 4 / 8 / 16 Ohms, 140 / 200 V
Protections DC Fault, Low Impedance, Overvoltage, Short Circuit, Thermal, Ultrasonic, Undervoltage
Frequency Response 20 Hz to 20 kHz ±0.25 dB
Damping Factor > 1000
Input Sensitivity 1.4 Vrms (at 8 Ohms)
1.4 Vrms (at 70 V)
2 Vrms (at 100 V)
Input Impedance 10 kOhms (Balanced), 5 kOhms (Unbalanced)
Max Gain 34 dB
SNR > 104 dB (at 8 Ohms), > 108 dB (at 8 Ohms)
THD < 0.35% (Full Range, at rated power)
Intermodulation Distortion ≤ 0.35%
Crosstalk > 80 dB (Below rated power, 20 Hz to 1 kHz)
CMRR > 70 dB
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector IEC 15 A / NEMA 5-15
Current Consumption 120 VAC: 2.7 to 4.1 A (1/8 Power), 5.6 to 9.5 A (1/3 Power)
230 VAC: 1.4 to 2.1 A (1/8 Power), 2.9 to 4.8 A (1/3 Power)
Power Consumption 120 VAC: 138 to 172 W (1/8 Power), 196 to 298 W (1/3 Power)
230 VAC: 141 to 178 W (1/8 Power), 176 to 269 W (1/3 Power)
Dimensions 19.0 x 3.5 x 14.3 inches (48.3 x 8.9 x 36.3 cm)
Weight 20.1 lbs (9.1 kg)
Package Weight 25.225 lbs
Box Dimensions (LxWxH) 22.1 x 20.7 x 8 inches
