Powered Amplifiers

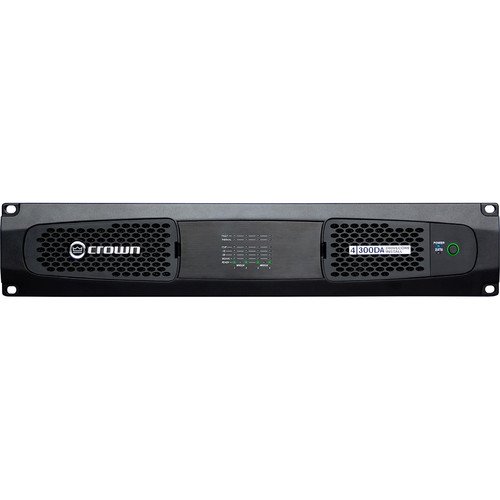

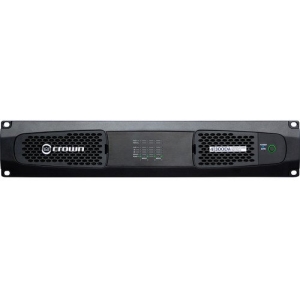

Crown Audio DCI4 300DA-U-EKFX 4-Channel DSP Amplifier with Dante-AES67 Compatibility

Crown

AED 13103.37 inc VAT.

The Crown DCi 4/300DA DriveCore Install DA Series is a 4-channel power amplifier featuring Dante/AES67 networked audio, integrated DSP, and 300W output per channel for 2-, 4-, 8-, and 16-Ohm speakers or 70/100Vrms systems. It supports bridged channels for higher power applications like subwoofers and offers advanced configuration and monitoring via HiQnet protocols and Audio Architect software. The amplifier includes LevelMAX limiting, input compression, and EQ, with additional connections for redundancy and GPIO port for external control.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DCI4X300DA-U-EKFX Categories: , , Brand:

Description

Crown DCi 4/300DA DriveCore Install DA Series 4-Channel Amplifier

The Crown DCi 4/300DA DriveCore Install DA Series is a cutting-edge 4-channel power amplifier, designed for professional audio installations. It excels in providing high-quality sound through its advanced Dante / AES67 networked audio capabilities and integrated DSP, delivering 300W per channel. This amplifier supports various speaker configurations and can bridge channels for more demanding applications.

Product Features

  • DriveCore technology ensures efficient and consistent performance.
  • Supports 2-, 4-, 8-, and 16-Ohm speakers or 70/100Vrms systems.
  • Advanced DSP with LevelMAX limiting, input/output EQ, and more.
  • Compatible with Dante Domain Manager for enhanced networked audio transport.
  • HiQnet Audio Architect support for remote configuration and monitoring.

Key Specifications

Specification Details
Inputs 3-pin block connectors
Outputs Terminal strips
Output Power (Dual Mode) 2 Ohms: 150W, 4 Ohms: 300W, 8 Ohms: 300W, 16 Ohms: 150W, 70/100 Vrms: 300W per channel
Output Power (Bridge Mono Mode) 4 Ohms: 300W, 8/16 Ohms: 600W, 140/200 Vrms: 600W
Voltage Gain 34 dB
Frequency Response 20 Hz to 20 kHz (±0.25dB)
Signal to Noise Ratio > 108 dB
THD < 0.35%
Intermodulation Distortion ≤ 0.35%
Damping Factor > 1000 (20 to 100 Hz)
Crosstalk > 80 dB
CMRR > 70 dB (20 Hz to 1 kHz)
DC Output Offset ±10 mV
Input Impedance 10 kOhms balanced, 5 kOhms unbalanced
Max Input Level +20 dBu (compression), +26 dBu (clipping)
AC Mains 100 to 240 VAC, 50/60 Hz
Power Connector 15 A IEC
Cooling Variable-speed forced air
Dimensions 14.3″ / 36.2 cm
Weight 20.1 lb / 9.1 kg
