Powered Amplifiers

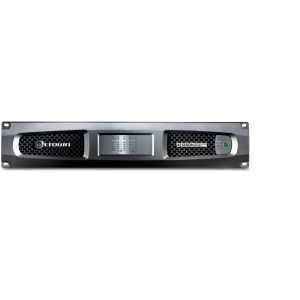

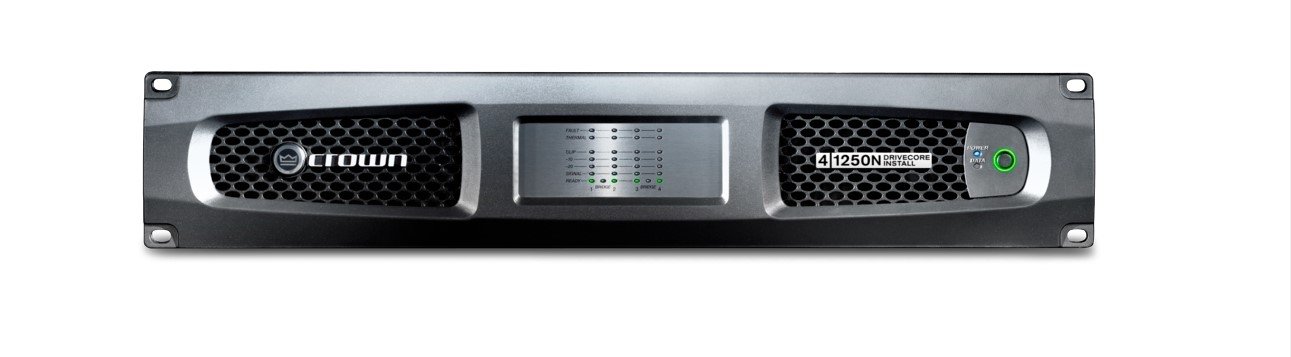

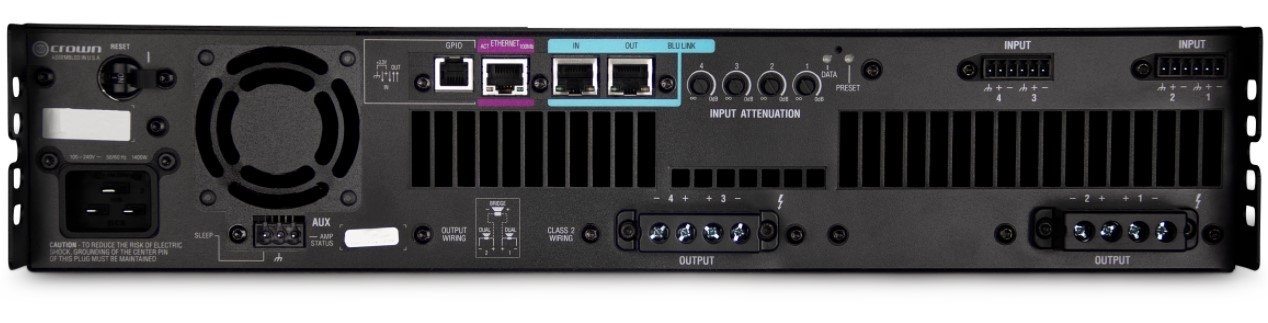

Crown Audio DCI 4-Channel 1250W Power Amplifier DCI4 1250N-U-EKFX

Crown

AED 24065.83 inc VAT.

The Crown Audio DCI 4|1250N is a 4-channel, 1250W network amplifier with advanced features for versatile and efficient sound applications. Compatible with Harman’s BLU Link digital audio transport, it offers analog/digital inputs, network monitoring/control, programmable GPIO ports, and on-board DSP. It meets EN 54-16 compliance for life safety systems, producing up to 1250W per channel at various impedances. Each channel includes independent attenuators, with the ability to bridge channels for higher power needs. The device features system indicators for quick monitoring and can be integrated into control systems for energy-saving operation.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DCI4X1250N-U-EKFX Categories: , , Brand:

Description

Crown Audio DCI 4|1250N Network Amplifier

System integrators working on challenging 21st-century installed sound applications require equipment that is versatile, compact, and highly efficient. The 4-channel Crown Audio DCI 4|1250N, a 1250W DriveCore Install BLU Link network amplifier, is designed with advanced features and flexibility to meet these needs.

This 2 RU amplifier delivers up to 1250W per channel at various impedances and direct-drive constant voltage without the need for step-up transformers. It is compatible with Harman’s BLU Link digital audio transport, offering network monitoring, control, and programmable GPIO ports along with on-board DSP for optimized performance.

Key Features

Specification Details
Number of Channels 4
Power Rating 2 Ohms: 1250 W/Channel
4 Ohms: 1250 W/Channel, 2500 W (Bridged)
8 Ohms: 1250 W/Channel, 2500 W (Bridged)
16 Ohms: 625 W/Channel, 2500 W (Bridged)
70 V/100 V: 1250 W/Channel
140 V/200 V: 2500 W (Bridged)
Load Impedance/Voltage Parallel/Stereo: 2/4/8/16 Ohms, 70/100 V
Bridged/Mono: 4/8/16 Ohms, 140/200 V
Frequency Response 20 Hz to 20 kHz ±0.25 dB
Damping Factor > 1000
Input Sensitivity 2 Vrms (8 Ohms)
1.4 Vrms (70 V)
2 Vrms (100 V)
Input Impedance 10 Kilohms (Balanced)
5 Kilohms (Unbalanced)
Max Gain 34 dB
SNR > 104 dB (8 Ohms), > 108 dB (8 Ohms)
THD < 0.35% (Full Range at Rated Power)
Crosstalk > 80 dB (below rated power, 20 Hz to 1 kHz)
Protections DC Fault, Low Impedance, Overvoltage, Short Circuit, Thermal, Ultrasonic, Undervoltage
AC Input Power 100 to 240 VAC, 50/60 Hz
Cooling Fan (Variable Speed)
Dimensions 19.0 x 3.5 x 17.0 in / 48.3 x 8.9 x 43.2 cm
Weight 30 lb / 13.6 kg
