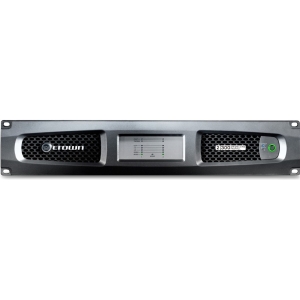

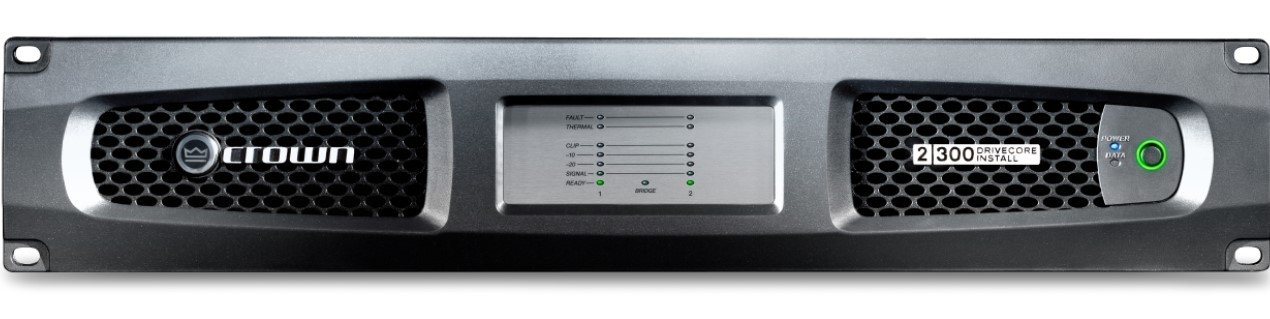

Crown Audio DCI 2|300N-U-EKFX 2-Channel 200W Power Amplifier

Crown

AED 8589.42 inc VAT.

The Crown Audio DCI 2|300N is a 300W DriveCore Install 2-channel BLU Link network amplifier designed for modern installed sound applications. It delivers up to 300W per channel at various impedances and supports digital inputs via RJ45 for networked monitoring and DSP control. Equipped with built-in DSP, it offers limiting, EQs, delay, and a matrix mixer. The amplifier features independent channel attenuation, selectable impedance output, and front panel system indicators. Ideal for integrative setups, it is rack-mountable and supports energy-saving sleep mode.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DCI2X300N-U-EKFX Categories: , , Brand:

Description

Crown Audio DCI 2|300N 2-Channel 300W DriveCore Network Amplifier

The Crown Audio DCI 2|300N is a versatile 300W DriveCore Install 2-channel BLU Link network amplifier, crafted for demanding modern sound installations. It features advanced DSP capabilities and flexible integration options, making it an excellent choice for professional audio engineers and system integrators.

Key Features

  • Network Monitoring & Control: Managed via the HiQnet protocol over TCP/IP.
  • Programmable GPIO Ports: Customizable for various functions including volume control and preset recall.
  • Built-in DSP: Complete with LevelMAX limiters, input/output EQ, delay, and matrix mixer.
  • Direct Drive Constant Voltage: Drives speakers using 70/100Vrms without transformers.
  • Channel-Independent Hi-Z/Low-Z Selection: Supports a wide range of speaker configurations.
  • Bridgeable Channel Pairs: For higher power needs like subwoofers.
  • Remote On/Off Interface: Integrates with control systems for energy management.
  • Efficient Cooling Design: Internal fans optimize airflow and minimize noise.
  • Auto Standby: Enters sleep mode after 30 minutes of inactivity.
  • TLC Protection: Protects against overheating with gain reduction.
  • Advanced Protection Circuits: Safeguards against various electrical issues.

Specifications

Specification Details
Number of Channels 2
Power Rating Up to 300W per channel depending on impedance and voltage.
Load Impedance / Voltage Supports 2, 4, 8, 16 Ohms; 70V and 100V.
Protections DC Fault, Thermal, Short Circuit, Overvoltage, and more.
Frequency Response 20Hz to 20kHz ±0.25 dB
Damping Factor > 1000
Input Sensitivity 1 Vrms (Low-Z), 1.4 Vrms (70V), 2 Vrms (100V)
Input Impedance 10k ohms (Balanced), 5k ohms (Unbalanced)
Max Gain 34 dB
SNR > 104 dB (8 Ohms)
THD < 0.35% (Full Range)

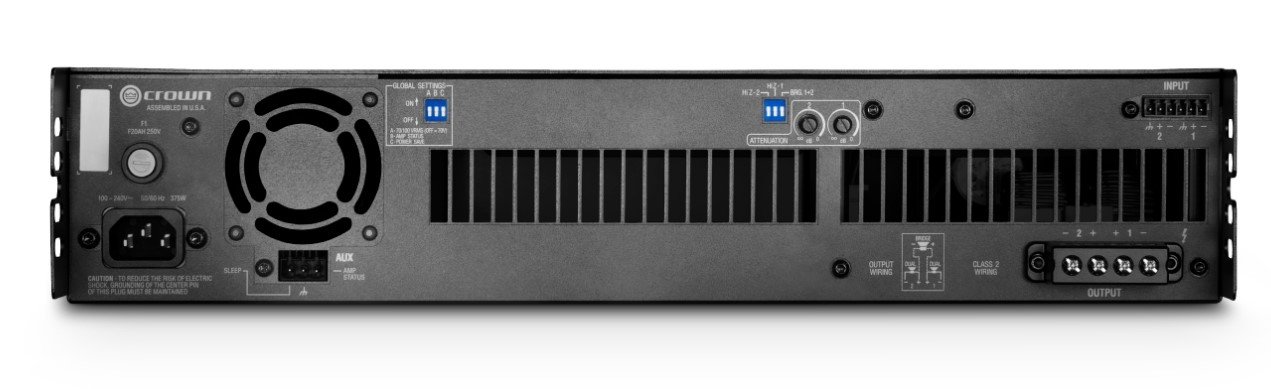

I/O 1 x Block 6-Pin Balanced Input, 1 x Barrier Strip 4-Pin Output
Digital I/O 1 x RJ11 (Control), 1 x RJ45 (Control, Network), 2 x RJ45 (BLU-Link)
Power Consumption Up to 113W at 1/3 power (120 VAC)
Dimensions 19.0 x 3.5 x 14.3 inches
Weight 18.8 lb / 8.5 kg
