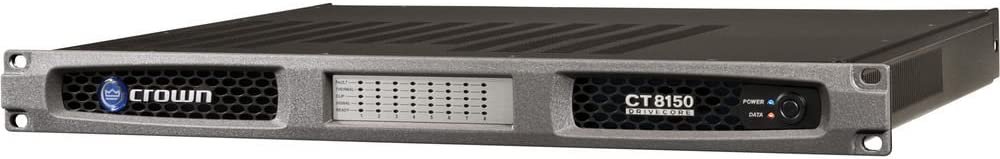

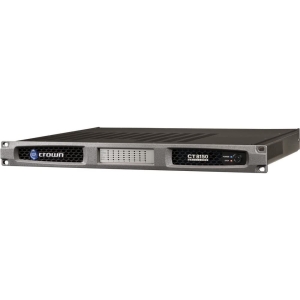

Crown Audio CT 8150A-U 8-Channel 125W Power Amplifier

Crown

AED 9775.17 inc VAT.

The amplifier utilizes DriveCore™ technology, integrating the amplifier drive stage into the power output stage on a compact chip. The front-end drive circuits enhance the efficiency of Class D output stages while delivering exceptional audio quality akin to a refined Class AB design.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: NCT8150A-U-EU Categories: , , Brand:

Description

Revolutionary DriveCore™ Power Amplifier

Experience the cutting-edge technology of DriveCore™ with this ultra-efficient amplifier. By integrating the amplifier drive stage directly into the power output stage, DriveCore™ achieves outstanding efficiency without sacrificing audio quality. This compact yet powerful chip delivers the superior performance of a Class AB design while incorporating the energy savings of Class D stages.

Key Features

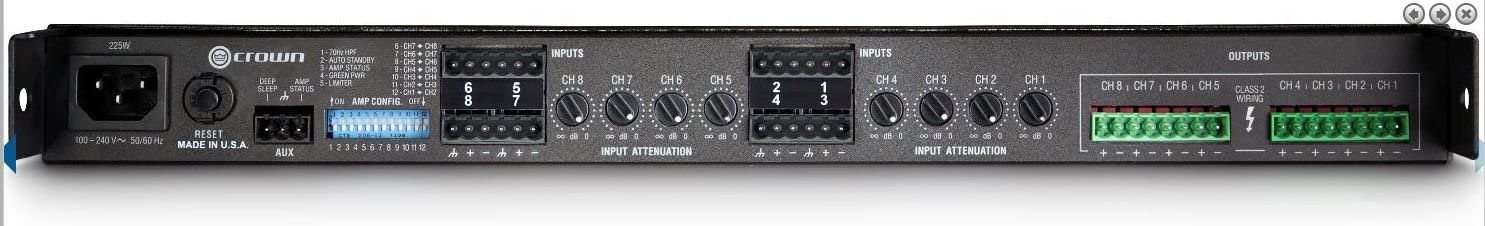

  • Flexible Input Routing for enhanced compatibility
  • Convection Cooled architecture ensures silent operation
  • Universal Power Supply adaptable to various voltages
  • Integrated Life-Safety Features for reliable protection
  • Compact design: Up to 8X125W in 1U chassis without a fan
  • High efficiency: >90% with DriveCore™ technology, ensuring no compromise in performance
  • Patented Feedback and Protection Circuits
  • Stable operation for 2 to 16 Ohm Loads
  • Requires XFMR 4/8 for 70V/100V Applications

Specifications

Specification Details
Channels 8
Sensitivity 1.4 V
Rated Power Output 125W per CH @ 4 ohms, 125W per CH @ 8 ohms
Signal to Noise Ratio 110 dB
THD < 0.05%
Intermodulation Distortion < 0.05%
Frequency Response +/- 0.5 dB
Crosstalk > 70 dB
Common Mode Rejection > 55 dB, typically > 70 dB
Voltage Gain 27 dB
DC Offset +/- 20mV
Idle Power Consumption 25.5W
Dimensions 1.75″ x 19″ x 15.19″
Weight 10 lbs / 4.54 kg
Shipping Weight 15 lbs / 6.8 kg
IEC Power Connector 15A
