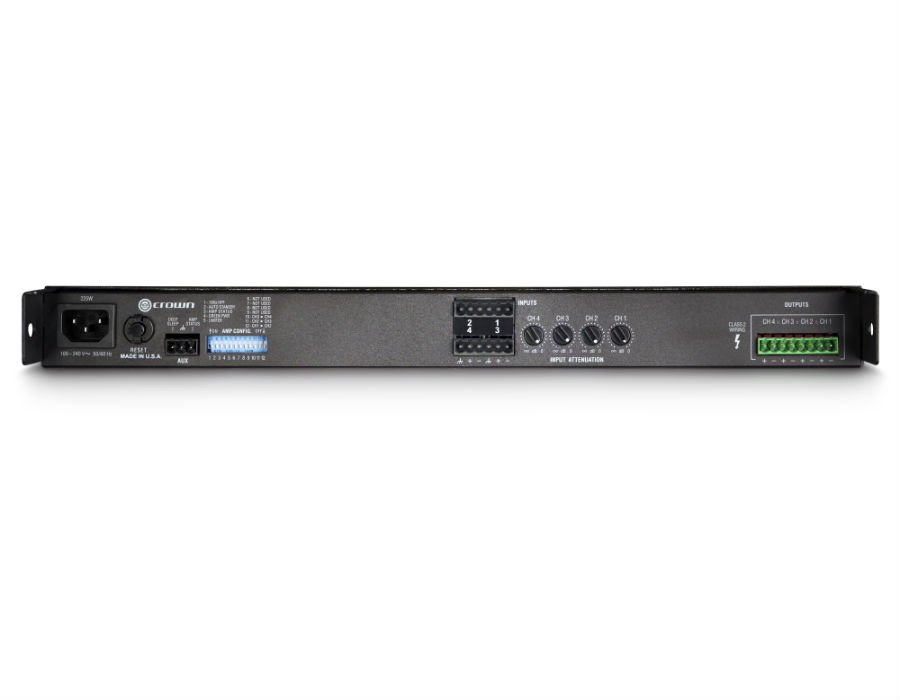

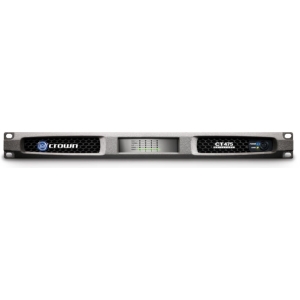

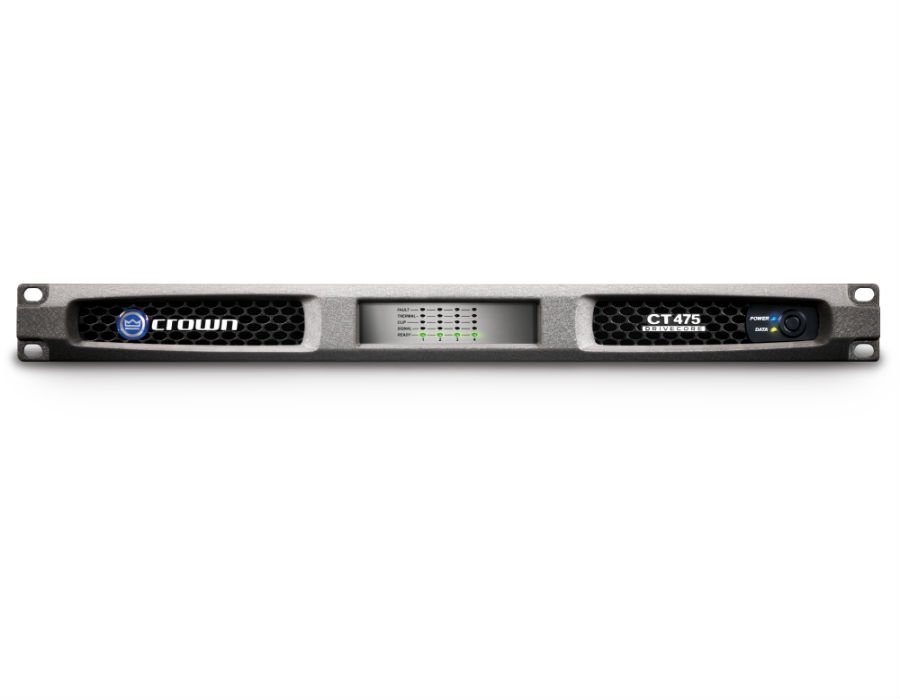

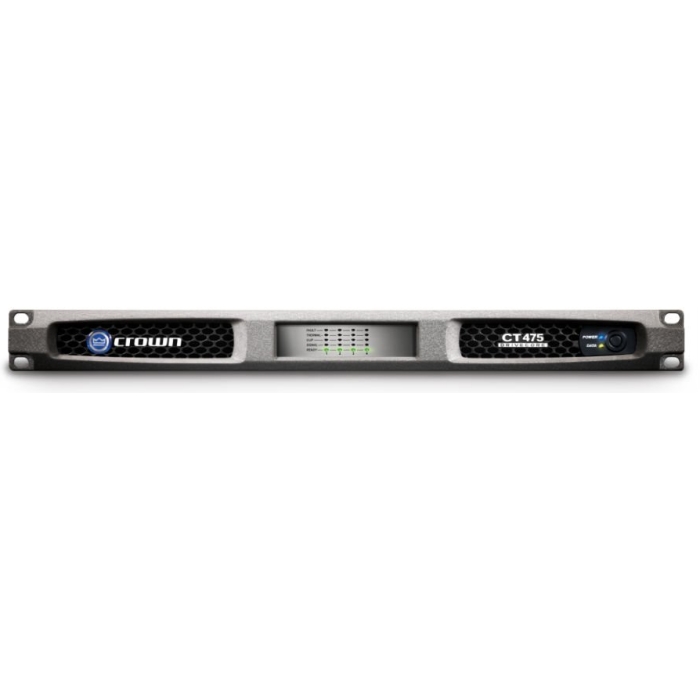

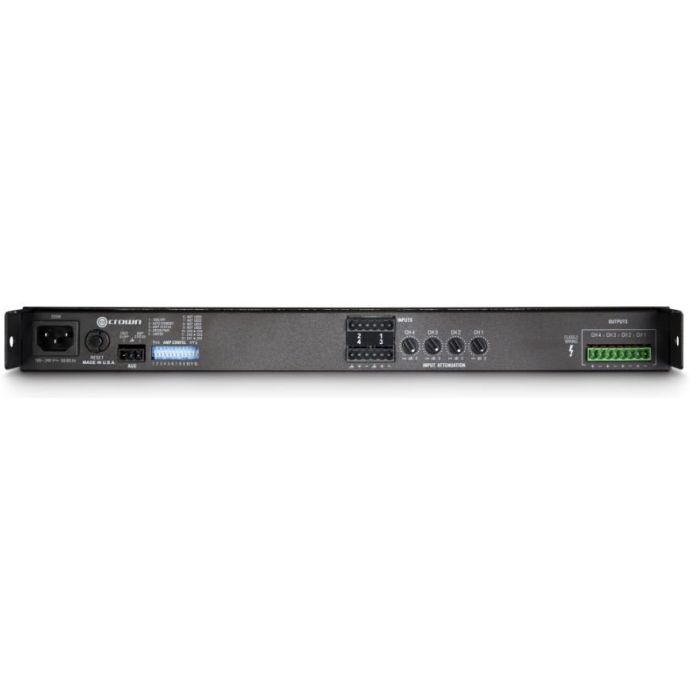

Crown CT 475A-U 4-Channel 75W Power Amplifier with DriveCore Tech

Crown

AED 4,297.72 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: NCT475A-U-UK Categories: , , Brand:

This advanced amplifier features innovative DriveCore™ technology, combining the amplifier drive stage and power output stage into a compact chip, leveraging Class D efficiency while delivering Class AB sound quality.

Description

Class D High-Efficiency Audio Amplifier

Experience unparalleled audio performance with our Class D High-Efficiency Audio Amplifier. Utilizing advanced DriveCore™ technology, this amplifier achieves exceptional efficiency without sacrificing sound quality. The innovative integration of the amplifier drive stage into the power output stage results in a compact design, packing powerful performance into a chip the size of a dime.

Key Features

  • Flexible Input Routing
  • Convection Cooled for Silent Operation
  • Universal Power Supply Compatibility
  • Integrated Life-Safety Features
  • Compact Design: Up to 8X125W in a 1U Chassis with No Fan
  • Over 90% Efficiency with DriveCore™ Technology
  • Patented Feedback and Protection Circuits
  • Stable Performance for 2 to 16 Ohm Loads
  • Suitable for 70V/100V Applications with XFMR 4/8

Specifications

Channels 4
Sensitivity 1.4 V
Rated Power Output 75W per CH @ 4 ohms, 75W per CH @ 8 ohms
Signal to Noise Ratio 110 dB
THD < 0.05%
Intermodulation Distortion < 0.05%
Frequency Response +/- 0.5 dB
Crosstalk > 70 dB
Common Mode Rejection > 55 dB, typically > 70 dB
Voltage Gain 25 dB
DC Offset +/- 20mV
Idle Power Consumption 15.0W
Dimensions 1.75″ x 19″ x 15.19″
Weight 10 lbs / 4.54 kg
Shipping Weight 15 lbs / 6.8 kg
IEC Power Connector 15A
