Crown Audio CDi 2|1200 2-Channel 1200W Power Amplifier

Crown

AED 9277.25 inc VAT.

The 1200W Crown Audio CDi 2|1200 2-Channel DriveCore Series Power Amplifier offers high-performance and reliability for large installations such as cinemas and houses of worship. Featuring DriveCore technology, it integrates an advanced DSP circuit, network control, and monitoring with a user-friendly interface. It drives up to 100Vrms speaker loads without a transformer and includes JBL speaker tunings for easy installation. Ethernet connectivity allows configuration via HARMAN’s HiQnet Audio Architect software.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: NCDI2X12-U-EU Categories: , , Brand:

Description

Crown Audio CDi 2|1200 2-Channel DriveCore Series Power Amplifier

The 1200W Crown Audio CDi 2|1200 2-Channel DriveCore Series Power Amplifier harnesses advanced technology from Crown’s flagship DriveCore Install series. It expertly combines high performance, an extensive feature set, and efficiency, making it a prime choice for various large-scale installations like cinemas, houses of worship, hotels, and cruise ships.

Featuring patented DriveCore technology, this amplifier integrates hundreds of components into a single circuit, ensuring consistent reliability and outstanding audio fidelity. The amplifier includes network control and monitoring capabilities, an advanced DSP circuit, and a user-friendly front-panel interface.

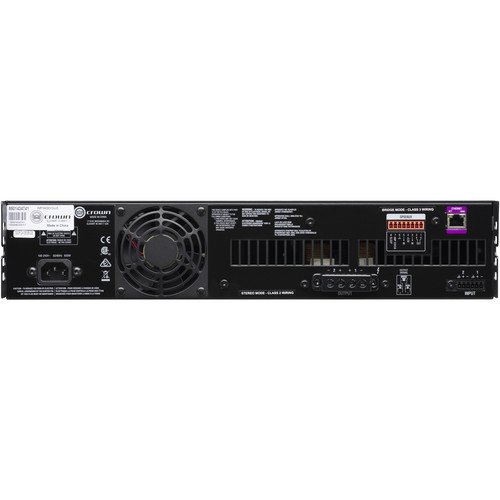

It handles 100Vrms speaker loads without the need for a transformer and is pre-loaded with JBL speaker tunings for convenient installations. The CDi 2|1200’s rear panel offers terminal block inputs and barrier strip outputs, along with an Ethernet port for seamless configuration and operation using HARMAN’s HiQnet Audio Architect software.

Key Features

  • DriveCore Technology for better performance, lower power consumption, and improved reliability
  • Supports configuration and control using HiQnet Audio Architect
  • Monitoring and control over TCP/IP
  • LCD and front-panel interface for amp configuration and monitoring
  • Comprehensive DSP functionality including EQ filters, crossovers, and signal processing
  • Power saving modes and remote sleep mode activation via AUX port
  • Advanced protection circuits for prolonged device longevity
  • Environmentally friendly with HARMAN’s GreenEdge compliance

Specifications

Specification Details
Number of Channels 2
Power Rating 1200 W per Channel / 2400 W Bridged
Load Impedance / Voltage Stereo: 2 / 4 / 8 / 16 Ohms per Channel, 70 / 100 V per Channel; Bridged: 4 / 8 / 16 Ohms, 140 / 200 V
Protections DC Fault, Low Impedance, Open Circuit, Overcurrent, Overvoltage, Ultrasonic, Undervoltage
Frequency Response 20 Hz to 20 kHz ±0.25 dB (8 Ohms)
Damping Factor > 1000
Input Sensitivity 0.7 Vrms to 2.5 Vrms / -.8 dBu to 10.2 dBu (at 8 Ohms); 1 Vrms to 3.5 Vrms / 2.2 dBu to 13.2 dBu (at 70 V); 1.4 Vrms to 5 Vrms / 5.2 dBu to 16.2 dBu (at 100 V)
Input Impedance 10 Kilohms (Balanced), 5 Kilohms (Unbalanced)
Max Gain 34 dB (at 4 Ohms, 8 Ohms, 70 V, 100 V)
Max Input Level +20 dBu
SNR > 104 dB
THD 0.35% (at Rated Power)
Intermodulation Distortion ≤ 0.35%
Crosstalk > 80 dB (Below Rated Power)
CMRR > 70 dB

Dimensions and Weight

Specification Details
Dimensions (WxHxD) 19.0 x 3.5 x 14.7″ / 48.3 x 8.9 x 37.4 cm
Weight 17.2 lb / 7.8 kg
Package Dimensions (LxWxH) 21.8 x 21.1 x 7.9″
Package Weight 20.61 lb
