BSS BLU-326 I/O Expander with BLU Link and Dante Integration

BSS

AED 15438 inc VAT.

This processor features Dante / AES67 audio with primary and secondary ports for fault tolerance, control through a separate Ethernet port, and Dante 4.0 firmware for integration with Dante Domain Manager. Analog Input Cards provide configurable gain in 6dB steps up to +48dB and selectable Phantom Power per channel. Digital Input Cards and Output Cards process AES/EBU and S/PDIF audio, offering various clocking and syncing options. Front panel LEDs provide Phantom Power, Sync, Signal Present, and Clip information per channel, while device-specific details and a bi-directional locate function are accessible from the display.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: BLU-326 Categories: , Brand:

Description

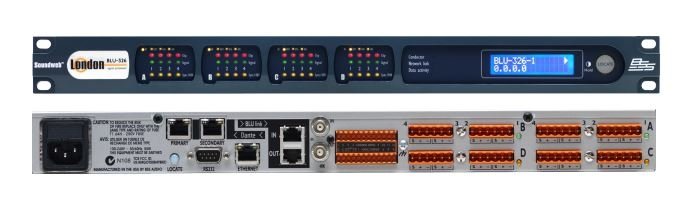

Soundweb London BLU-326DA Audio Processor

The Soundweb London BLU-326DA is a versatile and highly configurable audio processor, designed to provide robust audio solutions for a variety of modern audio environments. This device supports Dante / AES67 audio networking, ensuring a high bandwidth, fault-tolerant digital audio bus that guarantees reliable performance. With support for Dante 4.0 firmware, the BLU-326DA is also compatible with Dante Domain Manager, allowing seamless integration into complex audio networks.

Configuration is straightforward using HiQnet™ Audio Architect, which provides a comprehensive palette of logic objects and a user-friendly ‘drag and drop’ method. The front panel features clear LED indicators for Phantom Power, Sync, Signal Presence, and Clipping per channel, as well as a display for essential device-specific information like the Device Name, Firmware Version, and IP Address.

Flexible I/O options include analog inputs with software-configurable gain and phantom power, as well as digital input and output cards for processing AES/EBU and S/PDIF audio formats. Additional connectivity options are provided by 12 control inputs and 6 logic outputs, making it easy to integrate with GPIO compatible devices.

Key Features:

  • Four Input/Output Card Slots
  • Configurable Inputs/Outputs
  • AES67 and Dante Audio Support
  • 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
  • Clear Front Panel LED Indication
  • Informative Front Panel Display
  • 12 Control Inputs and 6 Logic Outputs for GPIO Integration
  • Dedicated Ethernet Control Port
  • HiQnet Device for Configuration, Control and Monitoring
  • EN 54-16 Compliant for Life Safety Applications

Specifications

Specification Details
Product Name BSS Soundweb London BLU-326DA I/O Expander with BLU link and Dante
Weight 4.10 Kg
Frequency Response 20Hz-20KHz (+0.5dB/-1dB)
Frequency Range 108dB typical, 22Hz-22KHz unweighted
Power Capacity <35VA
Maximum SPL +20dBu with 0dB input gain, +8dBu with 12dB gain
Impedance 110 ohm (AES/EBU), 75 ohm (S/PDIF)
Dimensions 1.75″ (1U) x 19″ x 12.5″ (45mm x 483mm x 318mm)
Manufacturer BSS
Color Black
