Digital Signal Processors (DSPs)

BSS Audio Signal Processor BLU-100 12×8 with BLU Link

BSS

AED 10,358 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: BLU-100 (EU) Categories: , , Brand:

The BSS Audio Soundweb London BLU-100 12×8 Signal Processor is a networked audio routing DSP processor with 12 inputs, 8 outputs, configurable signal processing, and a 48-channel digital audio bus. It supports full configuration via HiQnet London Architect and offers a low-latency, fault-tolerant connection using standard Category 5e cabling up to 100 yards, extendable to over 24 miles with fiber media converters.

Description

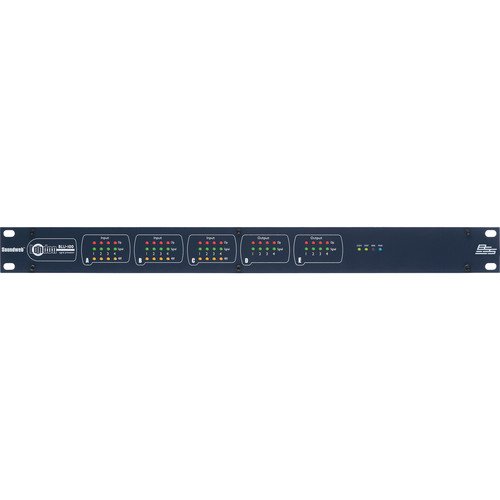

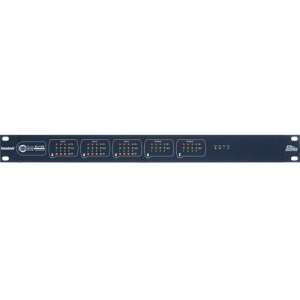

BSS Audio Soundweb London BLU-100 12×8 Signal Processor with BLU Link

The BSS Audio Soundweb London BLU-100 12×8 Signal Processor with BLU Link is an advanced DSP processor designed for efficient networked audio routing applications. With a fixed configuration of 12 inputs and 8 outputs, it offers configurable signal processing and a high bandwidth, fault-tolerant digital audio bus.

Key Features

  • 12 analog inputs with +48V phantom power per channel
  • 8 analog outputs
  • Versatile signal processing capabilities
  • 48-channel low-latency digital audio bus
  • Clear front-panel LED indicators for easy monitoring
  • Bidirectional locate functionality simplifying device management
  • Control inputs and logic outputs for GPIO integration
  • Comprehensive Soundweb London interface kit for third-party integration
  • Full configuration and monitoring via HiQnet London Architect

Specifications

Specification Details
Indicators Signal Present, CLIP, 48 V (Input Only); COM, STAT, ERR, PWR

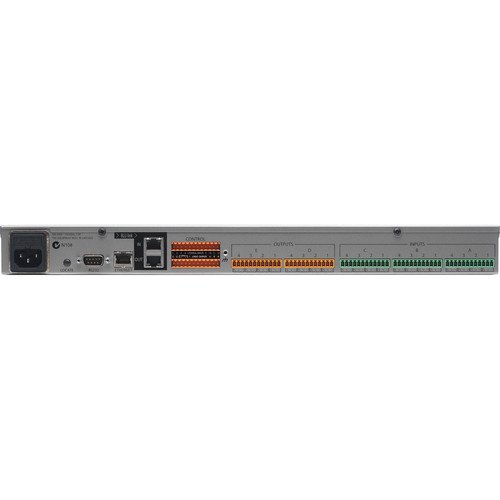

Analog Input 12 x Electronically Balanced on Phoenix Combicon Removable Screw Connectors
Input Impedance 3.5 Kilohms
Maximum Input Level +20 dBu with 0 dB Input Gain
Analog Outputs 8 x Electronically Balanced on Phoenix/Combicon Removable Screw Connectors
Maximum Output Level +19 dBu
Frequency Response 20 Hz to 20 kHz (+0.5 dB / -1 dB)
THD < 0.01% 20 Hz to 20 kHz, +10 dBu Output
Dynamic Range 108 dB Typical, 22 Hz to 22 kHz, Unweighted
Control Ports 12 Inputs and 6 Outputs
Input Voltage 0 to 4.5 V
Output Voltage 0 or +5 V Unloaded
Control Network RJ45 Ethernet Connector
Maximum Cable Length 300′ / 100 m on Cat 5e Cable
Power Consumption < 55 VA
BTU < 188 BTU/Hour
Dimensions 1.75 x 19 x 9″ / 45 x 483 x 229 mm
Weight 6.4 lb / 2.9 kg
