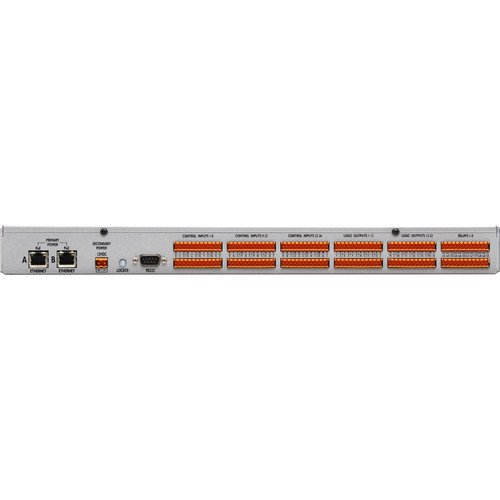

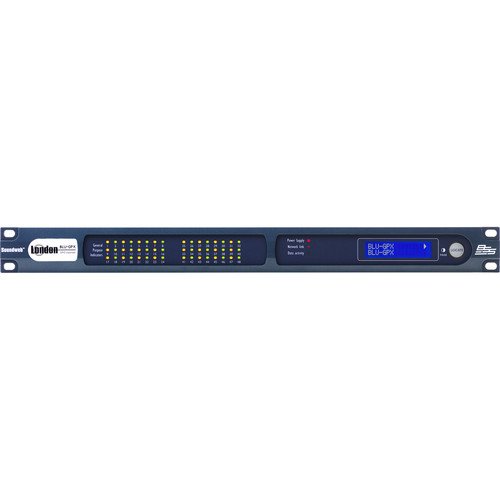

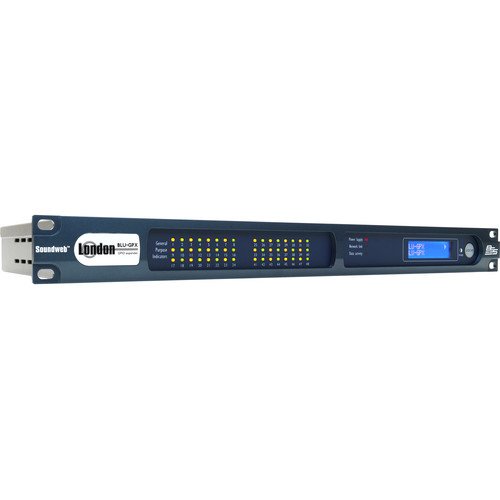

Soundweb London BLU-GPX GPIO Expander

The Soundweb London BLU-GPX is a versatile network-controlled GPIO expander designed for expanding Control Inputs, Logic Outputs, and Relays in systems requiring additional analog control capabilities. With an open architecture configurable through HiQnet™ London Architect, the BLU-GPX offers a user-friendly environment for system designers to create tailored solutions. Equipped with PoE-enabled Ethernet ports, various control interfaces, and user-configurable LEDs and LCDs, the BLU-GPX integrates seamlessly into existing systems while providing robust control and monitoring capabilities.

Key Features

• 36 Control Inputs for binary, multi-state, or continuous control.
• 23 Logic Outputs for direct connection to electrical components.
• 8 Relay Outputs with NO and NC terminals, eliminating the need for external relays.
• PoE-enabled Ethernet ports for communication, configuration, and primary power.
• Backup 12VDC power connector.
• Software-programmable LEDs and monochromatic LCD for user-defined event indication.
• 4 kHz piezo buzzer for audible alerts.
• Bi-directional locate functionality within HiQnet London Architect.
• Simplified wiring with 47 common ground connections.
• Operational in 2-wire or 3-wire mode.
