BSS Audio EC-4BV Ethernet Controller with 4 Buttons & Volume – White
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000

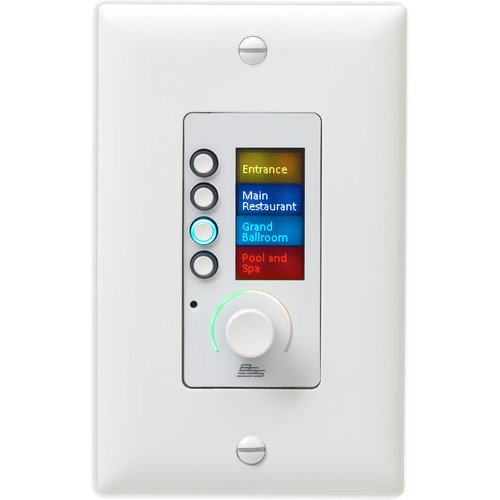

The white EC-4BV Ethernet Controller from BSS Audio is a wall-mount unit in a single-gang US Decora form factor, featuring an Ethernet port for configuration, control, monitoring, and PoE. Compatible with HiQnet devices and configured via HiQnet Audio Architect software, it includes a push/rotary encoder, encoder ring, four control buttons, and a 64×128 pixel LCD screen, all multicolor backlit with adjustable intensity.
Description
EC-4BV Ethernet Controller
The EC-4BV Ethernet Controller by BSS Audio is designed for seamless integration with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices. It comes in a single-gang US Decora form factor, featuring an Ethernet port for easy configuration, control, monitoring, and Power over Ethernet (PoE). Users can enjoy intuitive drag-and-drop setup through the HiQnet Audio Architect software application. Interactive control components include a push/rotary encoder, an encoder ring, four control buttons, and a 64×128 pixel LCD screen, all of which are multicolor backlit with adjustable intensity.
Key Features
| Specification | Details |
|---|---|
| Push/Rotary Encoder | Programmable for continuous and binary parameter control (e.g., volume, mute) |
| Encoder Ring | Displays bouncing audio meter or volume setting |
| Control Buttons | Allows for binary parameter control, preset recall, or source selection |
| LCD Screen | Customizable 64×128 pixel screen for displaying text |
| Multi-Color Backlighting | Eight color options with adjustable intensity |
| Remote Lock/Unlock | Secure access via PIN entry |
| Power Over Ethernet (PoE) | Operates over standard Ethernet cabling |
Specifications
| Specification | Details |
|---|---|
| Maximum Cable Length | 328′ / 100 m |
| Power Consumption | 300 mA Max at 48 VDC |
| Connector | 1 x RJ45, Cat 5e Ethernet Port |
| Ethernet Cabling | VW-1 Rated, 48 VDC, 13 W (Recommended) |
| Dimensions | 4.7 x 2.9 x 2.1″ / 11.9 x 7.4 x 5.4 cm |
| Weight | 1 lb / 0.5 kg Approx. |
Packaging Info
| Specification | Details |
|---|---|
| Package Weight | 0.73 lb |
| Box Dimensions (LxWxH) | 9.85 x 6.4 x 4″ |
Additional information
| Brand |
|---|
