BSS Audio BLUDIGITAL-OUT Card with AES/EBU, S/PDIF Outputs and Wordclock

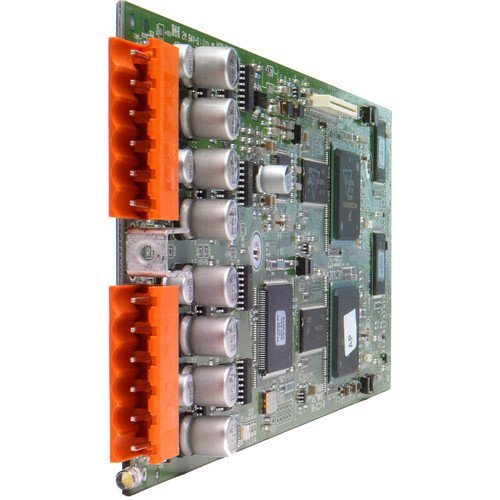

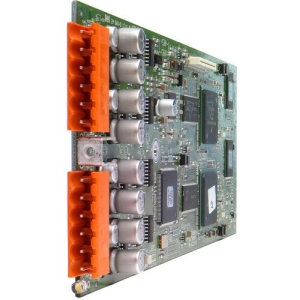

Soundweb London Digital Output Card

The Soundweb London Digital Output Card is a versatile expansion module tailored for enhancing the audio processing capabilities of your Soundweb London devices. This card is compatible with a range of models including the BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16. It enables these devices to seamlessly integrate AES/EBU and S/PDIF audio signals, offering a sophisticated solution for high-fidelity audio output.

Configuration Options

The Digital Output Card can be flexibly configured to suit various audio routing requirements:

• 2 Stereo AES/EBU Signals
• 1 Stereo AES/EBU Signal / 1 Stereo S/PDIF Signal
• 2 Stereo S/PDIF Signals

Connection Details

This card hosts two Combicon connectors to ensure robust and reliable connections.

Connector 1

• Stereo Audio, Channels 1 and 2 – AES/EBU / S/PDIF
• Stereo Audio, Channels 3 and 4 – AES/EBU / S/PDIF

Connector 2*

• Clock Input – High Impedance
• Clock Input – 75R Terminated

Key Specifications

Specification	Details
Compatible Models	BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16
Audio Signal Type	AES/EBU, S/PDIF
Connector Type	Combicon
Stereo Channels	2 Channels per Connector
Clock Input	High Impedance, 75R Terminated
