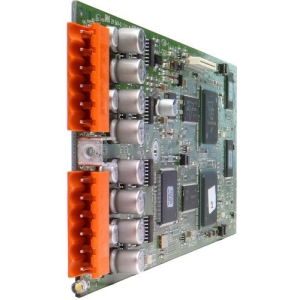

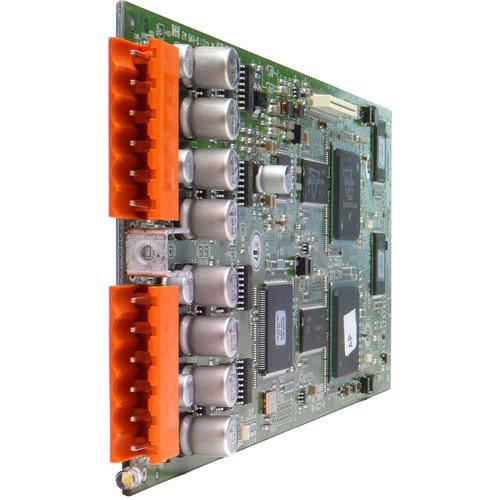

BSS Audio BLUDIGITAL-IN Digital Input Card with AES/EBU and S/PDIF Inputs

Soundweb London Digital Input Card

The Soundweb London Digital Input Card is a versatile and essential component for enhancing your audio system. Designed to fit into any of the four card slots on Soundweb London BLU series devices, this card enables the reception of AES/EBU and S/PDIF audio signals, ensuring high-quality digital audio input for your professional audio setup.

The Digital Input Card can be configured in multiple ways to suit various audio setup requirements:

• 2 Stereo AES/EBU Signals
• 1 Stereo AES/EBU Signal / 1 Stereo S/PDIF Signal
• 2 Stereo S/PDIF Signals

The card features two Combicon connectors which facilitate the input of multiple audio channels:

Connector 1

• Stereo Audio, Channels 1 and 2 – AES/EBU
• Stereo Audio, Channels 3 and 4 – AES/EBU

Connector 2

• Stereo Audio, Channels 1 and 2 – S/PDIF
• Stereo Audio, Channels 3 and 4 – S/PDIF

Key Features & Specifications

Specification	Details
Supported Devices	BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16
Input Signals	AES/EBU, S/PDIF
Connector 1	Stereo Audio, Channels 1 & 2, Channels 3 & 4 (AES/EBU)
Connector 2	Stereo Audio, Channels 1 & 2, Channels 3 & 4 (S/PDIF)
Configuration Options	2 Stereo AES/EBU Signals, 1 Stereo AES/EBU Signal / 1 Stereo S/PDIF Signal, 2 Stereo S/PDIF Signals
