Digital Signal Processors (DSPs)

BSS Audio BLU-50 4×4 Signal Processor with BLU Link

BSS

AED 5641 inc VAT.

The BLU-50 is a half-rack width processor featuring four inputs and four outputs with configurable signal and logic processing, and a 48-channel BLU link digital audio bus. It offers software configurable gain, phantom power, and LED indicators for signal monitoring. Power options include an included 12VDC supply, 12-48VDC via a terminal block, or PoE+ through the Ethernet port. Controlled via HiQnet Audio Architect™ or HiQnet London Architect™, the BLU-50 integrates seamlessly with other Soundweb London devices, supporting distances up to 100m with standard cabling and beyond 10km using fiber media converters.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: BLU-50 (EU) Categories: , , Brand:

Description

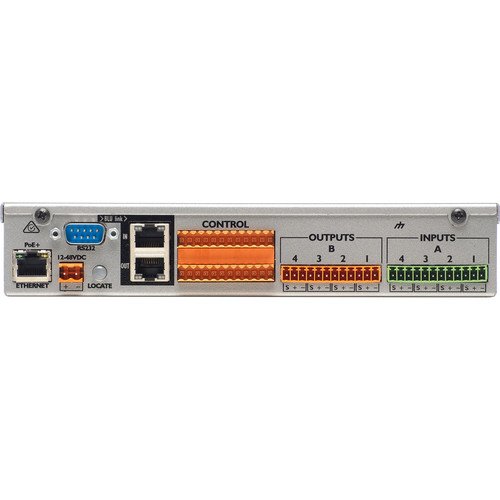

BLU-50 Fixed I/O Processor

The BLU-50 is a versatile half-rack processor designed for high-performance audio applications. It features a fixed configuration of 4 inputs and 4 outputs, along with configurable signal and logic processing. This processor supports multiple power options, including a 12VDC power supply, 12-48VDC via a terminal block connector, and Power over Ethernet (PoE+).

With software configurable input gain, selectable phantom power, and clear LED indications, the BLU-50 offers convenient monitoring without the need for a PC. It includes BLU link for low latency, fault-tolerant digital audio networking, and can be integrated with other Soundweb London devices through HiQnet software.

Key Features

  • 4 Analog Inputs with 48V Phantom Power per Channel
  • 4 Analog Outputs
  • Configurable Signal Processing
  • Rich Palette of Processing and Logic Objects
  • 48 Channel Low Latency Digital Audio Bus

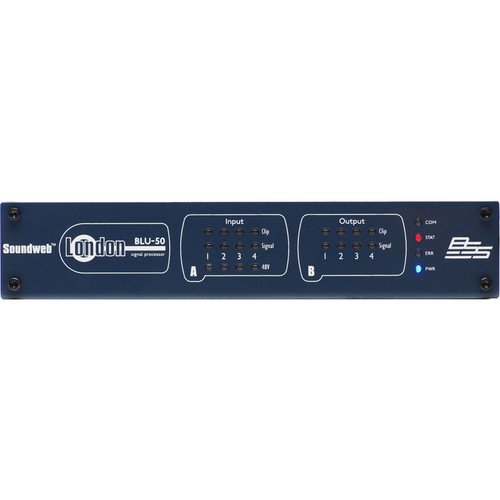

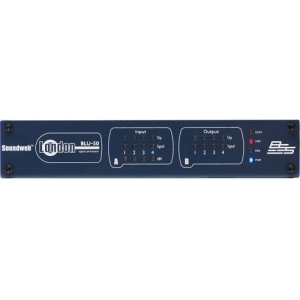

  • Clear Front Panel LED Indication
  • 12 Control Inputs and 6 Logic Outputs for GPIO Integration
  • Multiple Powering Options including 12-48VDC and PoE+
  • Rack, Surface, and Desk Mount Installation Options
Specification Details
Indicators Per Input: Signal Present, Clip, 48V; Other: COM, STAT, ERR, PWR
Analog Inputs 4 Electronically Balanced, Configurable Gain up to +48 dB, Input Impedance: 3.5 kΩ
Analog Outputs 4 Electronically Balanced, Max Output Level: +20 dBu, Frequency Response: 20 Hz to 20 kHz
Control Ports 12 Inputs, 6 Outputs, Voltage Range: 0 to 4.5 V
BLU Link 2 x RJ45 Connectors, Max Distance: 100m using Cat 5e Cable
Power Requirements 12 to 48 VDC, Power Consumption: < 55 VA
Dimensions 1.6 x 8.6 x 7.8 in (41.3 x 219.2 x 196.9 mm)
Weight 2.8 lb (1.3 kg)

Packaging Info

Category Details
Package Weight 6.45 lb
Box Dimensions (LxWxH) 12.1 x 11.1 x 7.4 in
