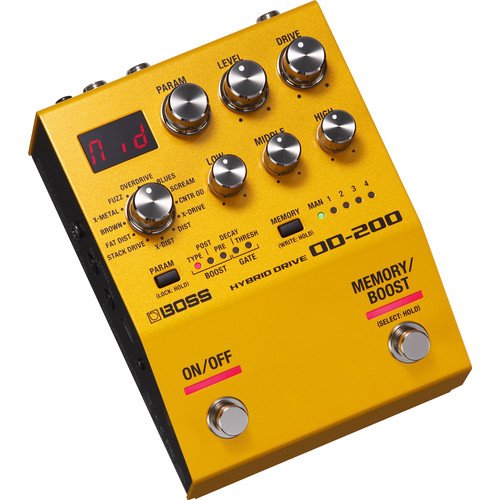

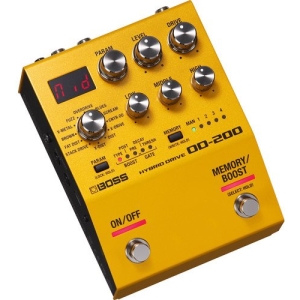

BOSS OD-200 – Hybrid Drive Pedal for Electric Guitars

AED 1363.95 inc VAT.

Intended for guitarists, the BOSS OD-200 is a drive and distortion pedal offering many familiar BOSS tones in a relatively compact footprint. The pedal offers 12 different types of distortion from overdrive to metal tones to contoured drive. You can control these effects with a three-knob tone stack, level, and drive knobs. You’ll also note a Parameter knob, whose function changes depending on the effect you select.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

SKU: OD-200 Category: AV Brand: Boss

Description

In addition to the 12 distortions, there are 15 switchable boost types. You can place the effect in parallel or in series. With series, you can fashion stacked drives, complete with post-gain level controls. In parallel, you can achieve side-by-side blends, which can result in eccentric tones.

The effects provided herein are achieved by means of a 96 kHz, 32-bit signal path to achieve a high-quality sound in every instance. The bypass path is buffered to preserve your tone, even across long cable runs. There are four memory slots provided to save combinations of parameters and recall them when you desire.

A control/expression input allows you to continuously control parameters using a separately available expression pedal. It also works as a control input for external switches. MIDI connectivity is possible via two 3.5mm jacks for the input and output.

Features

Hybrid design with analog and digital circuitry for a huge range of drive tones
12 primary drive modes plus 15 boost types with independent pre/post gain controls
Selectable series or parallel boost structures for gain shaping
Advanced gate section for eliminating noise and tightening high-gain tones
32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
Real-time panel setting and four memories for storing favorite sounds
Panel Lock function disables controls to prevent unwanted changes
Customizable multifunction footswitches for bypass, boost, memory selection, and more
Support for expanded control via external footswitches, an expression pedal, or MIDI

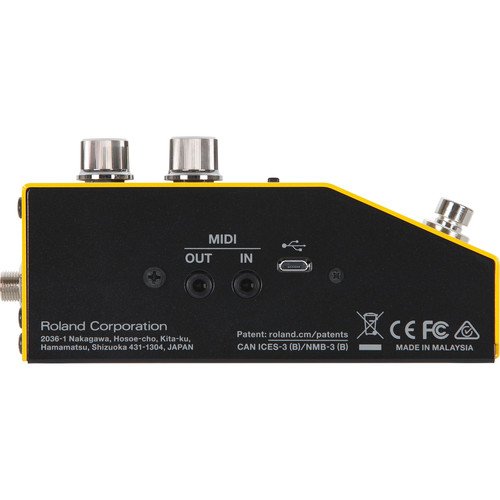

Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
Micro-USB jack for firmware updates
Runs on PSA-series AC adapter or three AA-size batteries

Specifications

Sampling Frequency	96 kHz
AD/DA Conversion	32-Bit
Processing	32-Bit Floating Point
Modes	12 Modes: Overdrive, Blues, Scream, CNTR OD, X-Drive, Dist, X-Dist, Stack Drive, Fat Dist, Brown, X-Metal, Fuzz
Memory	4 + Manual
Nominal Input Level	Input A/Mono and Input B: -10 dBu
Maximum Input Level	Input A/Mono and Input B: +7 dBu
Input Impedance	Input A/Mono and Input B: 1 Megohm
Nominal Output Level	Output A/Mono and Output B: -10 dBu
Maximum Output Level	Output A/Mono and Output B: +7 dBu
Output Impedance	Output A/Mono and Output B: 1 Kilohm
Recommended Load Impedance	Output A/Mono and Output B: 10 Kilohms or Greater
Bypass	Buffered

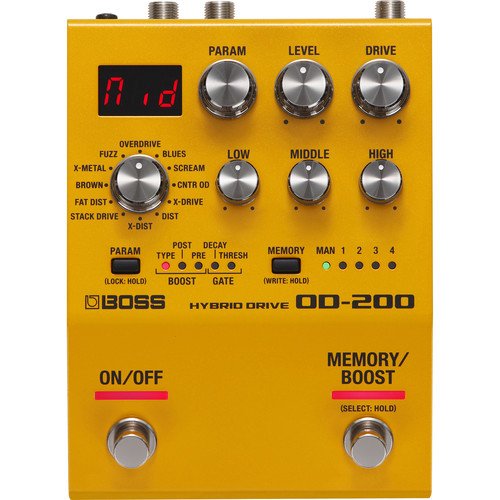

Controls	Mode Knob Drive Knob Level Knob Low Knob Middle Knob High Knob Parameter Knob Parameter Button Memory Button Memory/Boost Switch On/Off Switch
Display	7 Segments, 3 Characters (LED)

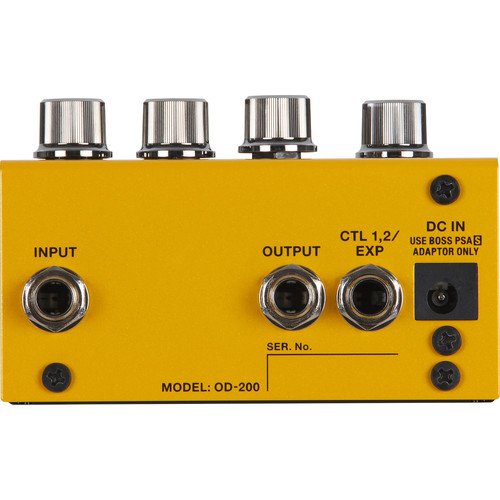

Connections	2 x 1/4″ Instrument Inputs, Phone Type 1 x 1/4″ TRS CTL 1, 2 / EXP Input, Phone Type 2 x 1/4″ Instrument Outputs 1 x 3.5 mm TRS MIDI Input 1 x 3.5 mm TRS MIDI Output 1 x USB Port 1 x DC Input Jack
Power Supply	3 x Alkaline Batteries, AC Adapter (Available Separately)
Current Draw	220 mA
Expected Battery Life	Approximately 6 Hours
Dimensions	Without Rubber Feet: 4.0 x 5.4 x 2.5″ / 10.1 x 13.8 x 6.3 cm With Rubber Feet: 4.0 x 5.4 x 2.6″ / 10.1 x 13.8 x 6.5 cm
Weight	With Batteries: 24 oz / 670 g Without Batteries: 22 oz / 600 g
