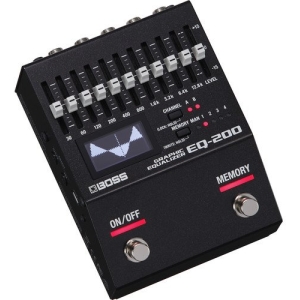

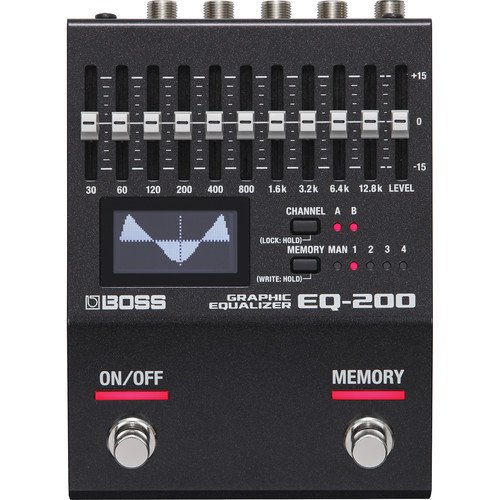

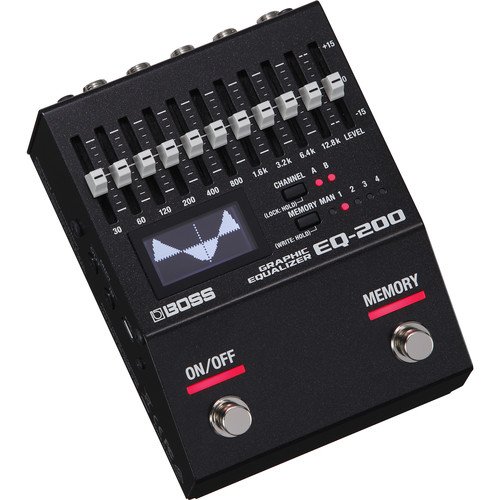

Boss Graphic Equalizer Pedal EQ-200 with 10 Bands for Guitar Bass Keyboard

Boss

AED 1,416.45 inc VAT.

متوفر في المخزن
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: EQ-200 Category: Brand:

Intended for guitarists, bassists, or keyboardists, the BOSS EQ-200 is a graphic equalizer with a host of usable features for the discerning player. For instance, you can switch between three different frequency ranges at will. EQ between 30 Hz to 12.8 kHz, 32.1 Hz to 16 kHz, or 28 Hz to 14 kHz. You’ll have 10 bands of boost or cut, with a range of ±15 dB. The pedal can operate in mono, stereo, or dual mono for flexibility in tone shaping. You can store up to four custom curves in the memory bank, EQ the left and right independently or linked, and even place external gear in the insert path. Hook up an external footswitch or expression pedal and you’ve got real-time control over the pedal. MIDI connectivity is possible via two 3.5mm jacks, one for the input, the other for the output.

Description

Intended for guitarists, bassists, or keyboardists, the BOSS EQ-200 is a graphic equalizer with a host of usable features for the discerning player. For instance, you can switch between three different frequency ranges at will. EQ between 30 Hz to 12.8 kHz, 32.1 Hz to 16 kHz, or 28 Hz to 14 kHz. You’ll have 10 bands of boost or cut, with a range of ±15 dB.

The pedal can operate in mono, stereo, or dual mono for flexibility in tone shaping. You can store up to four custom curves in the memory bank, EQ the left and right independently or linked, and even place external gear in the insert path. Hook up an external footswitch or expression pedal and you’ve got real-time control over the pedal. MIDI connectivity is possible via two 3.5mm jacks, one for the input, the other for the output.

The pedal can be powered by three supplied AA batteries. Alternatively, you can purchase a separately available power supply.



Features

  • 10 Bands of Graphic EQ
  • Master Level Slider
  • Mono, Stereo, or Dual Mono Operation
  • Insert Path & Real-Time Express/Control
  • 96 kHz / 32-Bit Signal Path
  • 4 x Memory Slots for Recall
  • 3.5mm MIDI I/O
  • Buffered Bypass
  • Powered via Supplied Batteries
  • AC Adapter Available Separately



Specifications

Sampling Frequency 96 kHz
AD/DA Conversion 32-Bit
Processing 32-Bit, Floating Point
Memory 4 + Manual
Nominal Input Level Input A/Mono, Input B: -10 dBu
Maximum Input Level Input A/Mono Input, Input B: +7 dBu
Input Impedance Input A/Mono, Input B: 2 Megohms
Nominal Output Level Output A/Mono, Input B: -10 dBu
Maximum Output Level Output A/Mono, B: +7 dBu
Output Impedance Output A/Mono, B: 1 Kilohm
Recommended Load Impedance Output A/Mono, B: 10 Kilohms or Greater
Bypass Buffered
Controls 10 x Frequency Sliders (30 Hz to 12.8 kHz)
1 x Level Slider
1 x A/B Button
1 x Memory Button
1 x Memory Switch
On/Off Switch
Indicator A/B Indicator, Memory (Manual: 1 through 4)

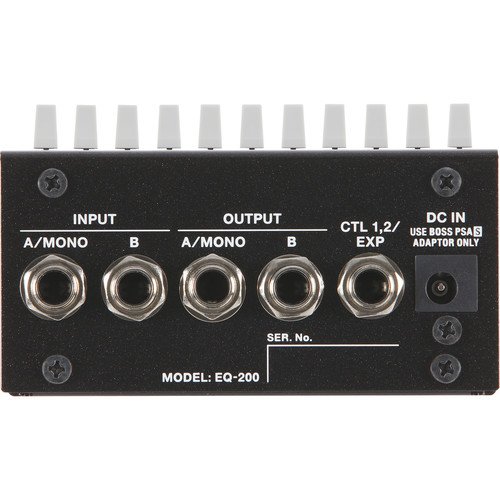

Connections 2 x 1/4″ Instrument Inputs, Phone Type
1 x 1/4″ TRS CTL/EXP Input, Phone Type
2 x 1/4″ Instrument Outputs

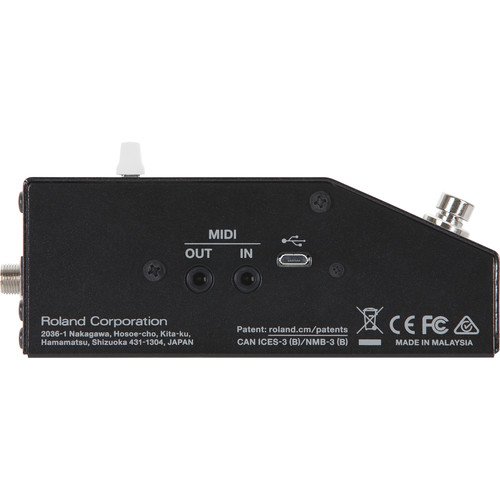

1 x 3.5 mm TRS MIDI Input
1 x 3.5 mm TRS MIDI Output
1 x USB Port
1 x DC Input Jack
Power Supply 3 x Alkaline Batteries, AC Adapter (Available Separately)
Current Draw 170 mA
Expected Battery Life Approximately 7 Hours
Dimensions Without Rubber Feet: 4 x 5.4 x 2.4″ / 10.1 x 13.8 x 6.0 cm
With Rubber Feet: 4 x 5.4 x 2.4″ / 10.1 x 13.8 x 6.2 cm
Weight With Batteries: 24.7 oz / 700 g
Without Batteries: 22.2 oz / 630 g



Packaging Info
Package Weight 2.395 lb
Box Dimensions (LxWxH) 7.8 x 6.8 x 4.3″
