Digital Signal Processors (DSPs)

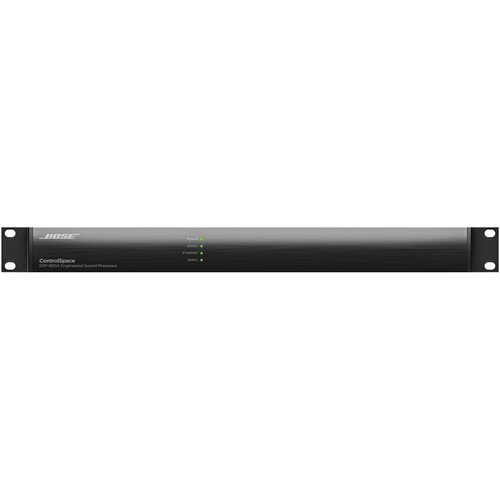

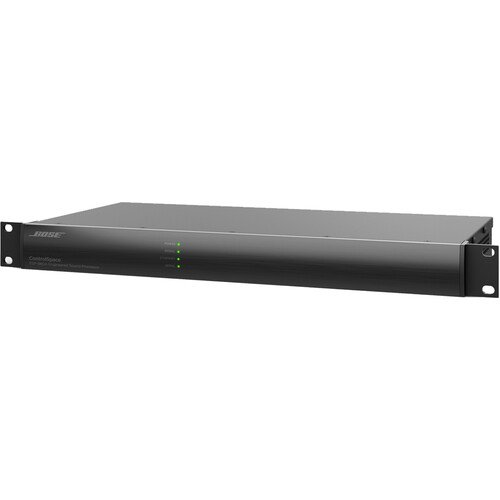

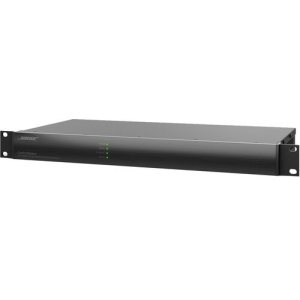

Bose Professional ControlSpace ESP-880A Engineered Sound Processor

Bose Professional

AED 9399.05 inc VAT.

The Bose Professional ControlSpace ESP-880A Engineered Sound Processor is a versatile open-architecture DSP suitable for both small-scale and extensive networked audio projects, featuring 8×8 analog audio I/O, Bose AmpLink output, and advanced 48 kHz / 24-bit digital signal processing for precise, low-latency, and ultra-low noise performance.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: ESP-880A Categories: , , Brand:

Description

Bose Professional ControlSpace ESP-880A Engineered Sound Processor

The Bose Professional ControlSpace ESP-880A is an advanced open-architecture digital signal processor (DSP) engineered for a diverse range of audio applications, from compact standalone projects to sophisticated networked systems. Utilizing 8×8 analog audio I/O, the ESP-880A offers superior audio quality with 48 kHz / 24-bit conversion, designed for low-latency and ultralow noise performance.

Key Features

  • High-quality analog circuitry accommodating both mic and line-level inputs and outputs
  • Innovative digital signal processing for precise 48 kHz / 24-bit audio conversion
  • Integrated AmpLink connections for seamless digital audio transmission
  • Extensive control options compatible with Bose and third-party control systems
  • Comprehensive design integration via Bose ControlSpace Designer software

Specifications

DSP Section 32-Bit Fixed/Floating-Point DSP + ARM, 456 MHz
Max Calculation: 3.6 GIPS / 2.7 GFLOPS
Latency: 860 μs (Analog In to Analog Out)
Sample Rate: 48 kHz
Audio Performance Frequency Response: 20 Hz to 20 kHz
THD+N: <0.002%
Dynamic Range: >115 dB

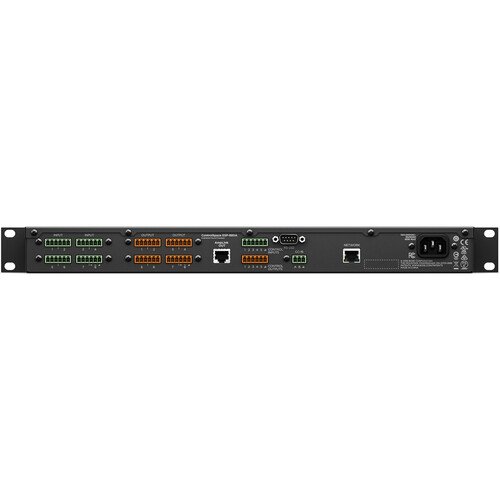

Audio Input 8 Analog Channels (Balanced)
Connector: 0.15″ Phoenix Contact, 6-Pin
Input Impedance: 12 Kilohms
Audio Output 8 Analog Channels + AmpLink
Connector: 0.15″ Phoenix Contact, 6-Pin
Control Inputs 5 Analog/Digital
Voltage Range: 0 to 3.3 V
Control Output 5 Digital
Voltage: 8 V (High), <1 V (Low)
Indicators & Controls LED Status Indicators: Power, Signal, Ethernet, Serial
General ControlSpace Designer Software
Network Control: Ethernet (RJ-45)
Operating Temperature 32 to 104°F / 0 to 40°C
Cooling Active, Side Venting
Power Mains Voltage: 85 to 264 VAC
Power Consumption: <37 VA
Dimensions 1.7 x 19.0 x 8.5″ / 4.3 x 48.2 x 21.6 cm
Weight 5.8 lb / 2.6 kg
