Bose Professional F1 Model 812P Flex Array Loudspeaker 230V, UK (Passive) Portable System 374847-0110

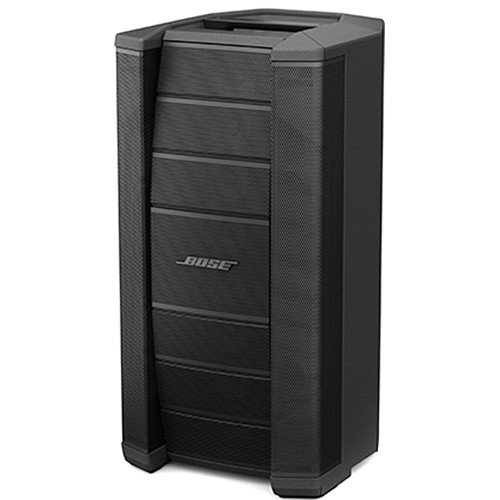

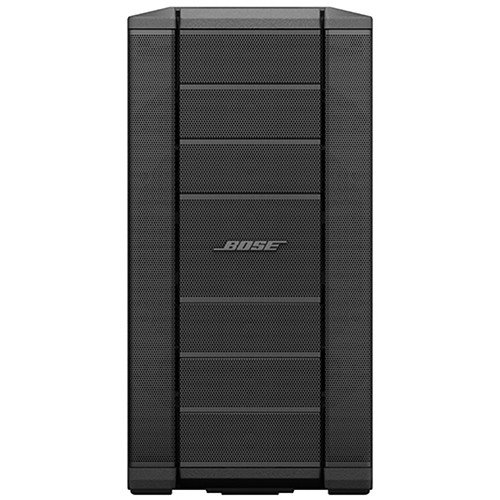

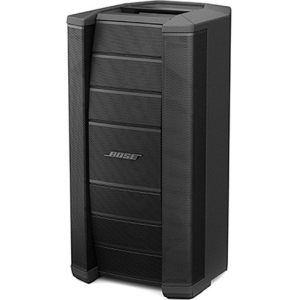

Bose F1 Model 812 Passive Flexible Array Loudspeaker

The Bose F1 Model 812 is a versatile passive flexible array loudspeaker offering multiple vertical coverage patterns to optimize sound for any environment. Ideal for diverse venues such as floor setups, stages, or raked seating, this speaker allows precise audio targeting with its adaptable configurations.

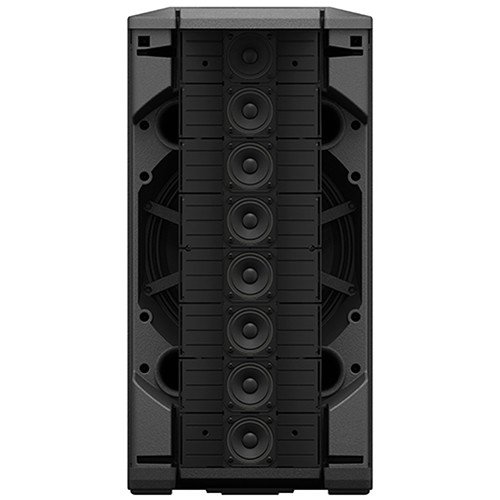

Featuring eight mid/high frequency drivers alongside a robust 12″ woofer, the F1 Model 812 delivers an impressive frequency range of 47 Hz to 20 kHz and a peak SPL of 125 dB. Its flexible baffle can be adjusted into four different shapes: “Straight,” “J,” “Reverse J,” and “C,” enhancing vertical coverage to suit various setup requirements.

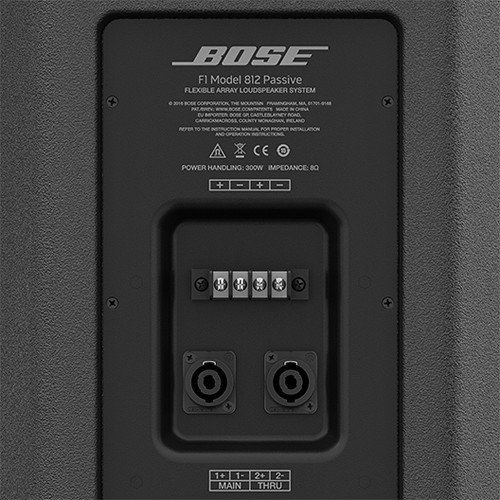

This speaker requires active equalization and provides four loudspeaker EQ presets for each array position, compatible with both Bose and third-party processors. The integrated pole mount fits standard tripod stands, and the enclosure includes six M8 threaded inserts for a range of mounting options. Connectivity is ensured with two parallel-wired Neutrik NL4 connectors and a four-terminal barrier strip supporting up to 12-gauge speaker cables.

Key Features
