Description

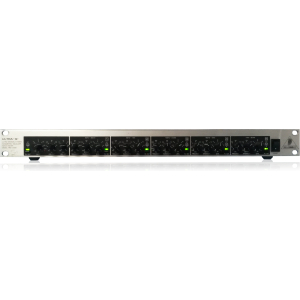

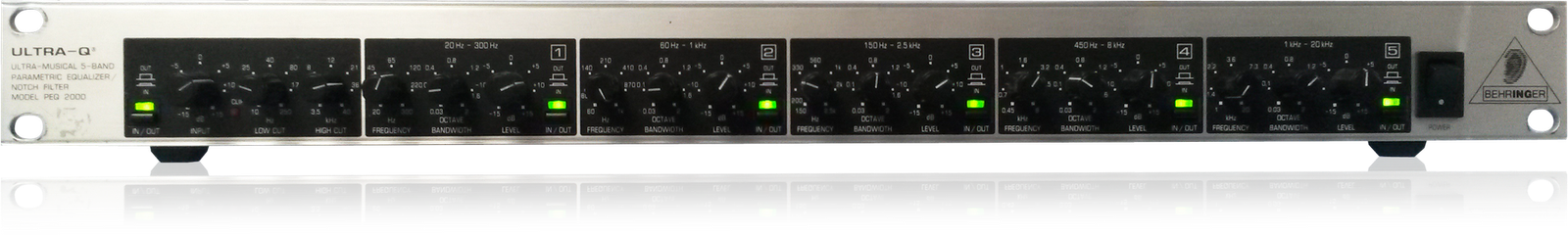

The PEQ2200 is an extremely effective and musical frequency correction and sound-shaping tool with centre frequency, bandwidth and amplitude adjustment for each filter. Its state-variable, constant-Q filters and parallel filter configuration ensure musical operation while overlapping frequency bands allow up to 30dB of level correction.

Features

• High-end parametric 5-band equalizer for live and studio applications
• Creative sound shaping in all post-production and recording situations
• Precision state-variable filters with constant-Q characteristic
• Parallel filter configuration for minimal phase shifting
• Sweepable high-pass and low-pass filters for removal of unwanted frequencies
• Each band independently switchable and adjustable in bandwidth
• Broad frequency band overlapping allows extreme boost/attenuation
• Servo-balanced inputs and outputs
• Gold-plated XLR and 1/4″ TRS connectors
• Relay-controlled hard bypass switch with auto bypass function (safety relay)
• Extremely precise 12-segment LED display for input/output levels
• Manufactured under ISO9000 certified management system

Specifications
