Avid Pro Tools HD OMNI Preamp, I/O, and Monitoring Interface (Model 9900-58631-40)

Avid Pro Tools

AED 10631.38 inc VAT.

The Avid HD OMNI digital audio interface is a versatile tool for music studios, offering high-quality recording of instruments and vocals, dedicated cue mixes, and monitoring through a single-space rack. It supports overdub, foley recording, and up to 7.1 channel monitor mixes with fold-down capability. Featuring premium converters for superior audio fidelity, the interface includes built-in sample-rate conversion, a soft-clip feature, and a customizable 14-input monitor mixer for independent monitoring. It integrates seamlessly with Pro Tools and other DAWs through Core Audio and ASIO drivers.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: 9900-58631-40 Categories: , Brand:

Description

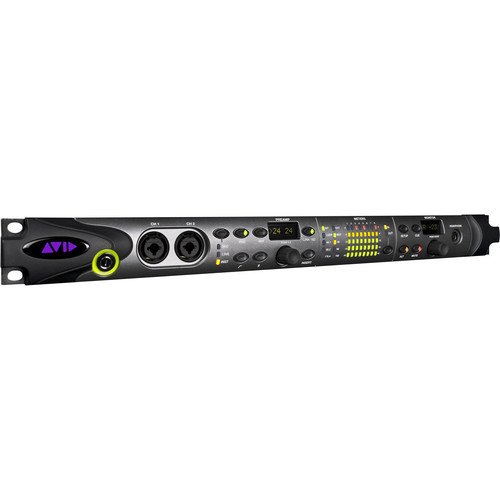

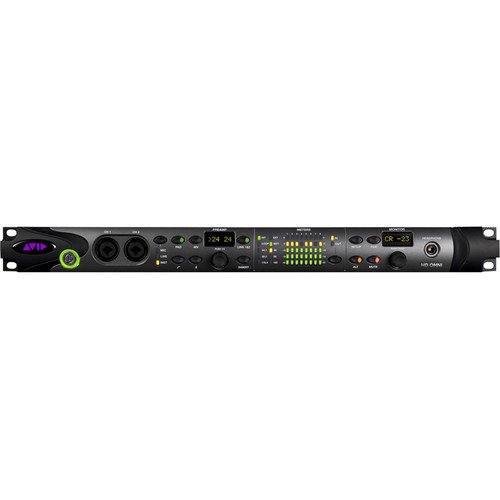

Avid HD OMNI Digital Audio Interface

Introducing the HD OMNI digital audio interface from Avid, the versatile hub for any music studio. Designed for recording high-quality instrument and vocal performances, the HD OMNI offers dedicated cue mixes for artists and the ability to monitor performance through discrete mixes.

This all-in-one interface eliminates the need for multiple devices with its comprehensive features. Postproduction enthusiasts will appreciate the overdub and foley recording capabilities, while mix engineers can create monitor mixes with up to 7.1 channels and fold down mixes to any required configuration.

The HD OMNI showcases premium A/D and D/A converters that ensure top-notch audio fidelity, extensive dynamic range, super-low jitter, and minimal latency. Experience worry-free performances with built-in sample-rate conversion and Curv, a soft-knee limiter that catches even the fastest transients. For seamless operation, you can use the built-in, customizable, 14-input monitor mixer without launching the Pro Tools software, making it ideal for monitoring external sources independently from the recording setup.

Experience maximum performance and control over all inputs, outputs, and routing directly from the Pro Tools interface, and enjoy full support for Core Audio and ASIO drivers with other DAW software.

Key Features

Specification Details
Form Factor Rackmount
Display 1 x Multi-Segment LED Meter
Channels of I/O Analog: 4 Input / 8 Output
Digital: 10 Input / 10 Output
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Preamps 2 Preamps
Gain/Trim Range Mic Inputs: 65 dB

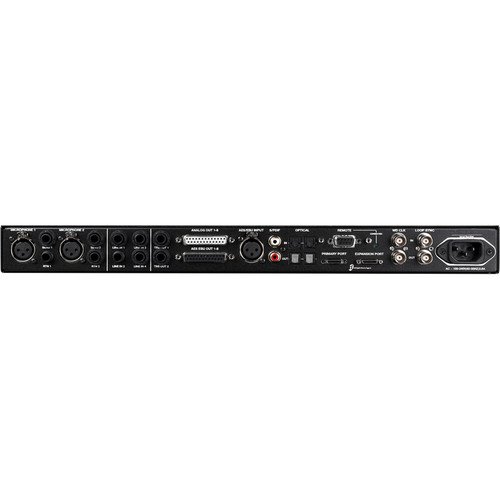

Analog Audio I/O 2 x XLR 3-Pin Balanced Mic/Line Input
2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4″ TRS Balanced Insert Input
4 x 1/4″ TRS Balanced Line Output
2 x 1/4″ TRS Balanced Insert Output
2 x 1/4″ TRS Balanced Monitor Output
1 x 1/4″ TRS Headphone Output
Phantom Power 48 V, Selectable On/Off
Digital Audio I/O 2 x DB-25 AES3 In/Out
1 x XLR 3-Pin AES3 Input
1 x RCA Coaxial S/PDIF Input
1 x RCA Coaxial S/PDIF Output
2 x TOSLINK Optical ADAT Input (S/MUX4 Support)
2 x TOSLINK Optical ADAT Output (S/MUX4 Support)
Host Connection / USB 1 x DigiLink Mini
Host Connection Protocol Avid Proprietary
MIDI I/O None
Frequency Response Mic Inputs: 20 Hz to 20 kHz ±0.05 dB
Line Inputs: 20 Hz to 20 kHz ±0.03 dB
Line Outputs: 20 Hz to 20 kHz ±0.03 dB
Headphone Outputs: 20 Hz to 20 kHz ±0.03 dB
Dynamic Range Line Inputs: 118 dBA
Line Outputs: 120 dBA
Headphone Outputs: 118 dBA
THD+N Mic Inputs: -107 dB / 0.00045%
Line Inputs: -111 dB / 0.00028%
Line Outputs: -108 dB / 0.00039%
Headphone Outputs: -107 dB / 0.00045%
EIN Mic Inputs: -128 dB
CMRR Mic Inputs: -93 dB
Sample Rates Up to 192 kHz
Bit Depths Up to 24-Bit
Sync Sources Internal, Word Clock
Memory Card Slot None
Required Hardware Available DigiLink Mini Port (Not Included)
Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Rackmount Size 1 RU
Package Weight 15.71 lb
Box Dimensions (LxWxH) 25.3 x 18.1 x 8″
