Australian Monitor AMB1600 2 x 800W Power Amplifier Stereo Class AB

Description

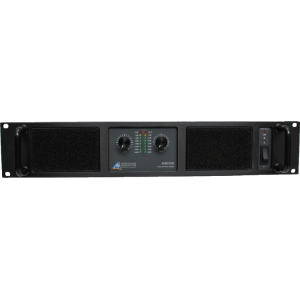

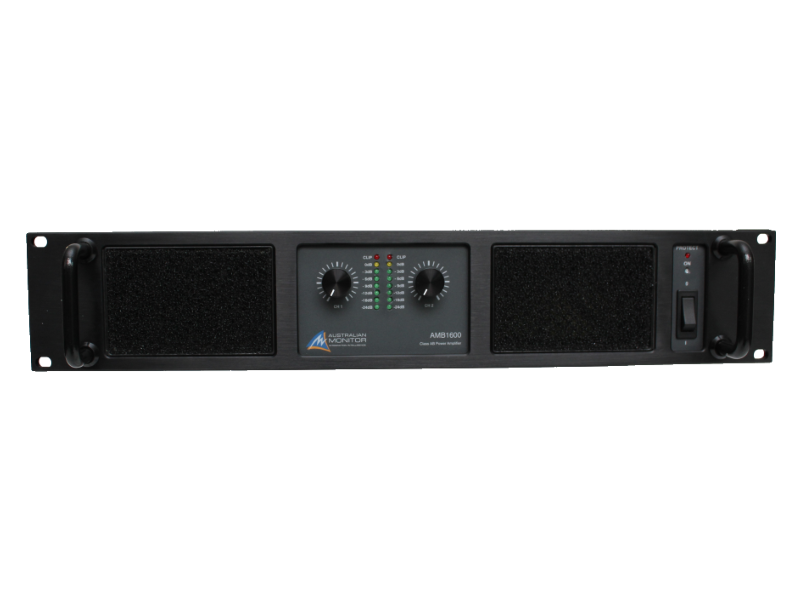

The AMB1600 is a 2RU class AB stereo power amplifier delivering 1600W into mono, stereo or bridged outputs. The AMB1600 features individual front panel volume control, level meter, clip and protection indicators.

The AMB series of power amplifiers have been specifically designed and built to offer Australian Monitor customers a reliable, outstanding value for money amplifier for applications that require high quality audio reproduction that they can depend on.



Features

• 1600W power amplifier
• 4 Ohm / 8 Ohm Operation
• Mono, Stereo or Bridge Mode operation
• Class AB operation
• Balanced XLR input and thru output
• 2 RU
• Fan cooled



Specifications

Output Power per Channel	800W	Frequency Response	20Hz – 20kHz
Output Channels	2	THD+N	< 0.06% (-3dB)
Output Mode	4 Ohm-8 Ohm	Signal to Noise Ratio	> 100dB
Input Voltage	230Vac 50-60Hz	Input Sensitivity	1.23Vrms (+4dBu)
Mounting	2RU	Cooling	Fan-assisted
		Warranty	5 years
Product Dimensions (W x D x H)	483mm x 366mm x 88mm	Shipping Dimensions (W x D x H)	530mm x 465mm x 188mm
Net Weight	16.75 Kg	Shipping Weight	19.2 Kg
