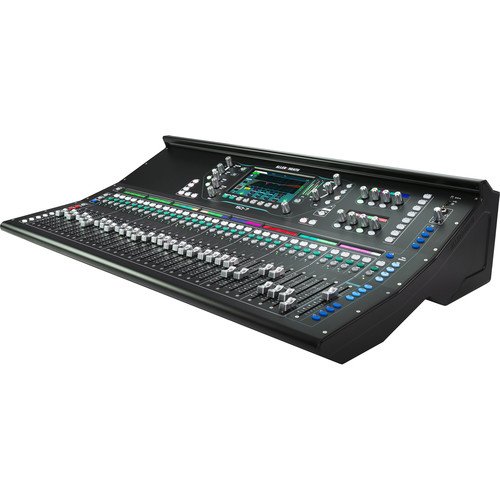

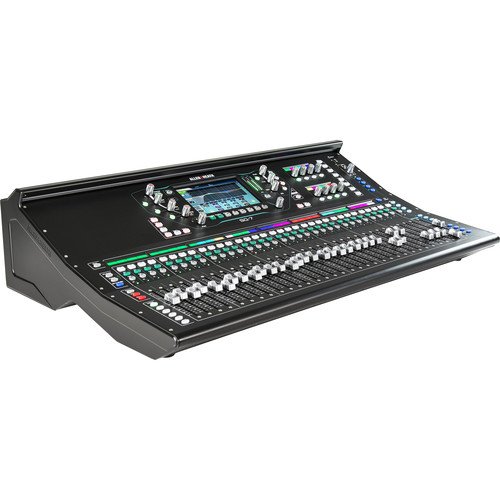

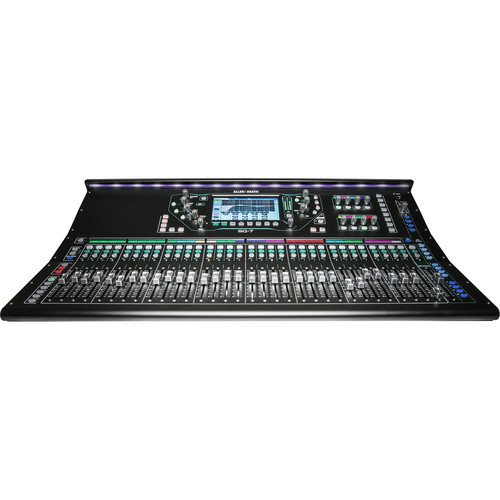

Allen & Heath SQ-7 Digital Mixer 48-Channel 36-Bus with 32+1 Motorized Faders

Allen & Heath

AED 25944 inc VAT.

The Allen & Heath SQ-7 is a versatile 48-channel digital mixing console featuring 32+1 motorized faders, 32 mic preamps, eight stereo FX engines, and 12 stereo outputs, making it ideal for live sound, corporate events, studios, and worship settings. Its Automatic Mic Mixing function ensures efficient management of multiple microphones.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: SQ-7 Categories: , , Brand:

Description

Allen & Heath SQ-7 Digital Mixer

The Allen & Heath SQ-7 is a 48-channel, 36-bus digital mixing console engineered for diverse applications such as live sound, corporate A/V, recording studios, and houses of worship. Equipped with 32 renowned mic preamps, eight stereo FX engines, and a 96 kHz XCVI Core FPGA engine, the SQ-7 ensures superior sound quality with ultra-low latency. This console allows for extensive customization and control, making it ideal for any professional audio environment.

Specifications

Specification Details
Number of Analog Input Channels 48
Mix Routing 8 x Stereo FX Return
Groups 8 x Mute Group, 8 x DCA Group
Display 7″ Touchscreen
Display Resolution/Color Main Display: 800 x 480 8-Bit RGB
Faders 32+1, 100 mm Motorized
Meters Main Meter: 2 x 12-Segment LED, Channel Meter: Single LED
Meter Range -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Gain/Trim Range Line: ±24 dB (Stereo Channels), Mic/Line: -5 dB to +60 dB (in 1 dB Steps)
Input Pad -20 dB
Input Polarity Normal/Reverse
Gate Parameters Threshold: -72 to +18 dBu, Depth: 0 to 60 dB, Attack: 50 μs to 300 ms, Hold: 10 ms to 5 sec, Release: 10 ms to 1 sec
Compressor Parameters Threshold: -46 to 18 dBu, Ratio: 1:1 to ∞:1, Attack: 30 μs to 300 ms, Release: 50 ms to 2 sec, Knee: Soft/Hard, Blend: Yes
Sidechain Filters Compressor: High-Pass: 20 to 5 kHz, Band-Pass: 120 Hz to 10 kHz, Low-Pass: 120 Hz to 20 kHz. Gate: High-Pass: 20 Hz to 5 kHz, Band-Pass: 120 Hz to 10 kHz, Low-Pass: 120 Hz to 20 kHz
EQ FX Returns: 4-Band Parametric
EQ Parameters 1 x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable), 2 x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz, 1 x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Channel Output/Source Monitoring AFL, PFL, Post-Preamp, Post-HPF, Post-Gate, Post-EQ, Post-Compressor, Post-FX, Insert Return
Internal Effects Reverb, Stereo Delay (Tap), Reverb (Gated), ADT, 2 x Chorus, Flanger, Phaser
Real Time Analyzer 31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay Adjustable Up to 682 ms
Automatic Mic Mixing Yes
Sample Rates 96 kHz. AES3 Output: 44.1 / 48 / 88.2 / 96 kHz. Stereo Record: 96 kHz. Stereo Playback: 44.1 / 48 / 96 kHz. Multitrack Playback/Record: 96 kHz
Bit Depth Up to 96-Bit. Stereo Record: 24-Bit. Stereo Playback: 16 / 24-Bit. Multitrack Playback: 24-Bit
Latency Less than 0.7 ms (Mic Input to Main Output)
dBFS Reference Level +18 dBu = 0 dBFS
Headroom +18 dB
Frequency Response 20 Hz to 20 kHz +0/-0.5 dB
Max Input Level Mic/Line Input: +30 dBu. Aux Input: +22 dBu (+4 dBu) / +18 dBu (0 dBu)
Output Level Analog Output: +4 dBu (Nominal) / +22 dBu (Max)
Analog Dynamic Range 112 dB
I/O Impedance XLR Output: < 75 Ohms. AES3 Output: 110 Ohms. Aux Input: > 7 Kilohms. Mic/Line Input: > 5 Kilohms
Noise Floor -90 dBu (with Inputs Muted)
THD+N 0.006% at Unity Gain. Mic/Line Input to AES3 Output: 0.002% at Unity Gain / 0.003% at +30 dB Gain
Signal Generator Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

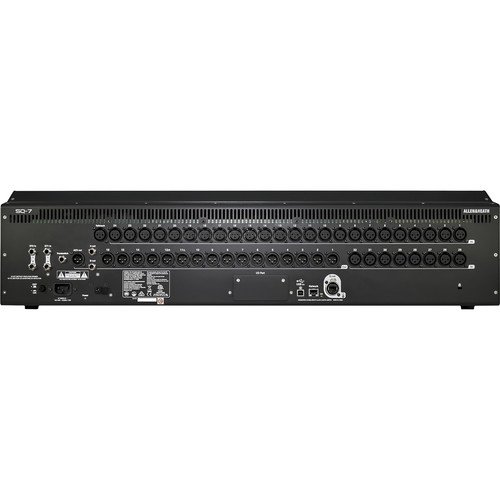

Analog Inputs 1 x XLR Talkback Input, 32 x XLR Balanced Mic/Line Input, 4 x 1/4″ TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled), 1 x 1/8″ / 3.5 mm Unbalanced Aux Input
Analog Outputs 16 x XLR Balanced Output, 2 x 1/4″ TRS Balanced Output
Phantom Power +48 V
Digital I/O 1 x RJ45 (Network), 1 x XLR AES3 Output, 1 x etherCON (I/O)
USB 1 x USB Type-A (External Memory), 1 x USB Type-B (USB 2.0, Audio Streaming)
Expansion Ports 1 x I/O Card
Max Multitrack Recording 16 Tracks
File Format Support WAV
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 110 W (Maximum)
