Allen & Heath MixWizard4 16:2 Professional Mixing Console 16 Inputs Twin FX

Allen & Heath

AED 6,115 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: MixWizard4 16:2 Categories: , , Brand:

The MixWizard4 16:2 from Allen & Heath is a professional 16-channel mixing console featuring 100mm faders, mic/line inputs with balanced XLR and TRS jacks, 48V phantom power, 4-band EQs with sweepable mids, and dual FX engines with 20 presets. Additional features include 6 auxiliary outputs, two stereo returns, inserts, direct outputs, peak indicators, -20dB pads, channel mutes, and high-pass filters on each channel.

Description

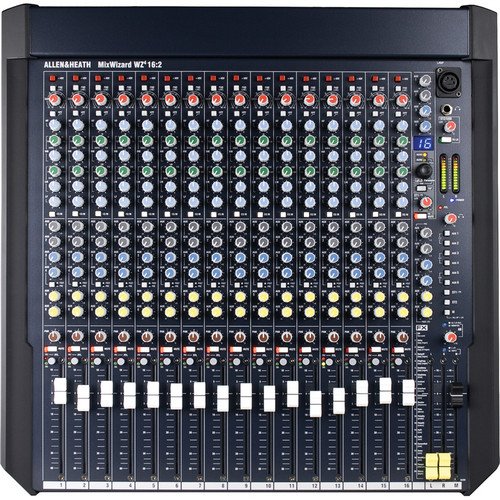

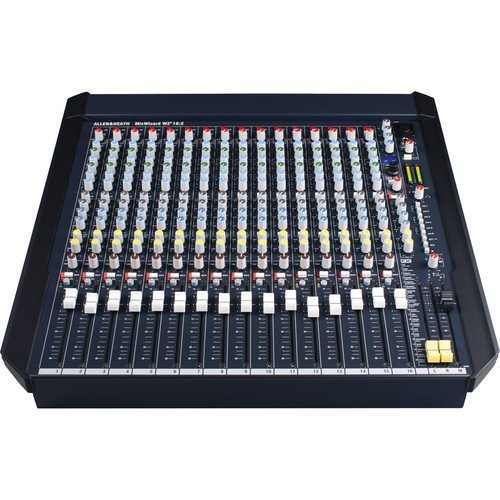

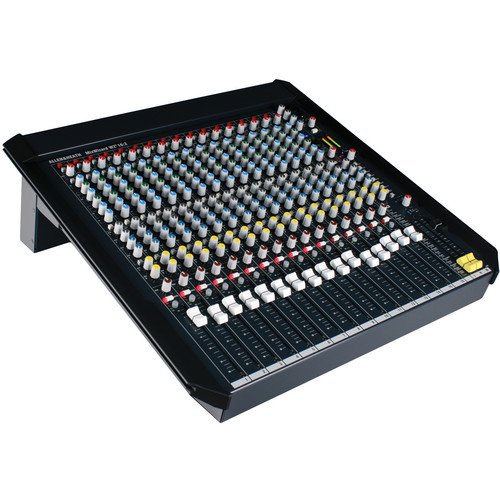

Allen & Heath MixWizard4 16:2 Professional Mixing Console

The MixWizard4 16:2 from Allen & Heath is a versatile, all-purpose professional mixing console designed to cater to a broad range of audio mixing needs. With its 16 mic/line inputs with inserts and direct outputs, and built-in FX engines, it’s perfect for live sound, recording sessions, and more.

Overview

Channels 1 through 16 are equipped with mic/line inputs featuring balanced XLR and TRS jacks, and 48V phantom power to support a variety of microphones and instruments. Each channel boasts a comprehensive 4-band EQ with sweepable mids, peak indicator, -20dB pad, six aux send knobs, pan knob, channel mute, and a high-pass filter attenuating frequencies below 80Hz at 12dB per octave.

The console’s six aux sends and two stereo returns allow for intricate routing and effects management, while the two built-in FX engines provide 20 presets, unleashing your creativity during performances or recordings. The dedicated mono output fader lets you switch to provide a stereo or sub-bass feed, enhancing your audio setup’s versatility.

Key Features

Specification Details
Rack Mountable 19″ rack mountable

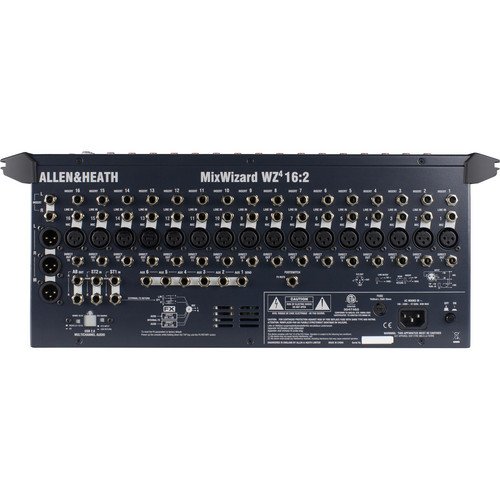

Mic/Line Inputs 16 inputs with balanced XLR/TRS jack, insert and direct output
Faders 100mm faders for precise control
Auxiliary Sends 6 aux sends – 2 pre-fade, 2 switched, 2 post-fade
Main Outputs Left and Right main outputs – XLR outputs with inserts
Stereo Returns 2 stereo returns
Output Types Independent A-B output for various recording and monitoring purposes
EQ 4-band EQ with 2 swept mids

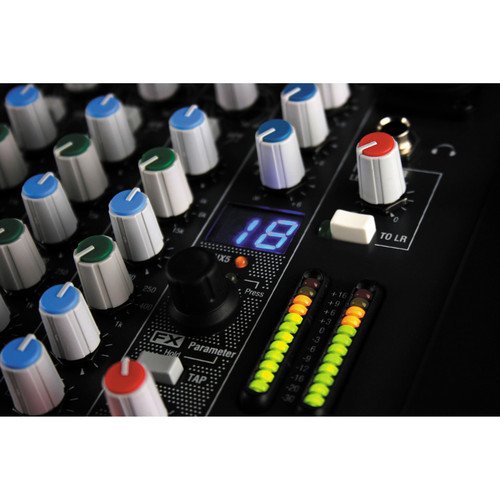

Built-in FX Twin FX engines with 20 FX presets
Meters Tri-color, 12-segment bar graph metering
Phantom Power +48V selectable phantom power
Connectors Footswitch connector to mute/unmute the ST1 FX Return
Indicators Signal and peak LEDs
Lamp Socket Available

Specifications

Specification Details
Number of Analog Input Channels 16
Number of Mic Preamps 16
Analog Output Channels Stereo Master Output, Mono Master Output, Stereo Control Room/Monitor Output, 6 Mono Aux Send Outputs, 16 Mono Direct Outputs, Stereo Headphone Output
Meters Main Meter: 12-Segment LED, Channel Meter: 2-Segment LED
Gain/Trim Range Mic Input: -60 dBu to +10 dBu, Line Input: -40 dBu to +10 dBu, Stereo Input: -16 dBu to +20 dBu
Filters High-Pass: 80 Hz, 12 dB/Octave
Built-In Effects 20 x Preset (Factory)
Frequency Response 10 Hz to 30 kHz ±0.5 dB
Max Input Level +30 dBu (Mono)
Phantom Power +48 V, Selectable On/Off
Power Consumption 45 W (Maximum)
Dimensions 20 x 20.9 x 7.7″ / 507 x 530 x 194 mm (Desk-Mounted)
Weight 28 lb / 13 kg
