Allen & Heath GX4816 Audio Expander 48 Mic Preamps 96 kHz for SQ dLive

Allen & Heath

AED 18750 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: GX4816 Categories: , , Brand:

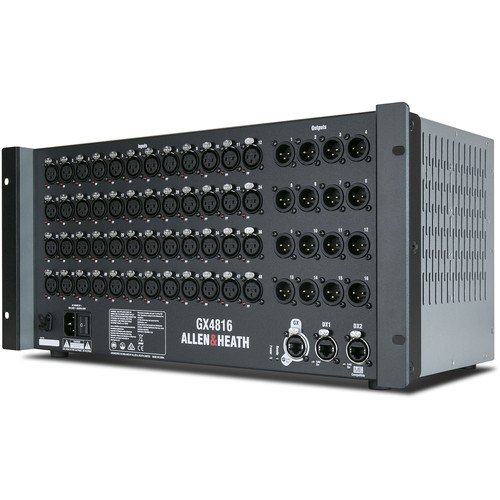

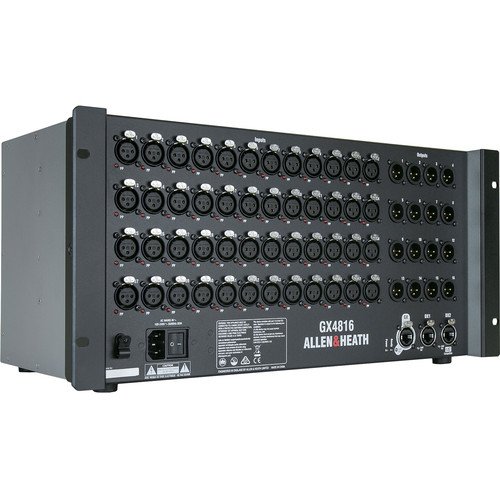

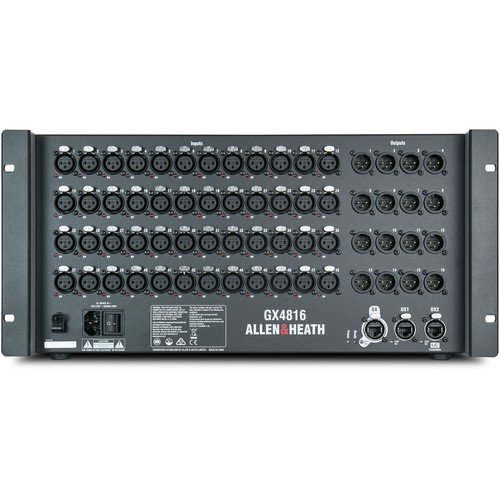

The Allen & Heath GX4816 is a 96 kHz portable GX Expander for SQ and dLive mixing systems, featuring 48 dLive mic preamps with phantom power LED indicators and 16 XLR line outputs. It includes two DX ports for further I/O expansion with up to four DX Expanders and a DX2 socket for ME personal mixing system connection. The unit can be floor or rack-mounted (5 RU) and comes with a power cord.

Description

Allen & Heath GX4816 Expander

The Allen & Heath GX4816 is a sophisticated 96 kHz audio interface designed specifically for SQ and dLive mixing systems. Featuring 48 dLive mic preamps with individual phantom power LED indicators and 16 XLR line outputs, this portable GX Expander is perfect for enhancing your audio mixing capabilities. With its compact form and included rack ears, the GX4816 can be easily integrated into various setups, whether placed on the floor or rack-mounted (5 RU).

Key Features

  • Compatible with SQ and dLive systems (firmware 1.9 or later).
  • 48 high-end mic preamps on XLR with phantom power indicators.
  • 16 XLR line outputs.
  • Operates at 96 kHz.
  • Includes GX and DX ports for extensive I/O expansion.
  • Supports ME personal mixing system connection via DX2 socket.
  • Rack-mounted (5 RU) or floor operation capability.
  • Plug and play setup with no IP addressing required.
  • Compatible with CAT5e cables up to 328.1′.

Specifications

Inputs Mic/Line XLR Inputs: Balanced XLR, +48V Phantom Power
Mic/Line Preamp: Fully Recallable
Input Sensitivity: -60 to +15 dBu
Analog Gain: +5 to +60 dB, 1 dB Steps
Pad: -20 dB Active Pad
Maximum Input Level: +30 dBu (Pad In)
Input Impedance: >4 kOhms (Pad Out), >10 kOhms (Pad In)
Mic EIN: -127 dB with 15-Ohm Source
Phantom Power Indication: Per Socket, 24 V Triggered
Outputs Analog XLR Outputs: Balanced, Relay Protected
Output Impedance: <75 Ohms
Nominal Output: +4 dBu = 0 dB Meter Reading
Maximum Output Level: +21 dBu
Residual Output Noise: -95 dBu
Temperature Operating Temperature Range: 32 to 104°F / 0 to 40°C
Power Mains Voltage Operating Range: 100 to 240 VAC, 50/60 Hz
Mains Power Consumption: 80 W Maximum
Dimensions 18.9 x 10.0 x 9.0″ / 48.0 x 25.4 x 22.8 cm
Weight 17.6 lb / 8.0 kg
