Allen & Heath DX168 Portable DX Expander 16 Mic/Line Inputs 8 Outputs for dLive Systems

Allen & Heath

AED 7,213 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DX168 Categories: , Brand:

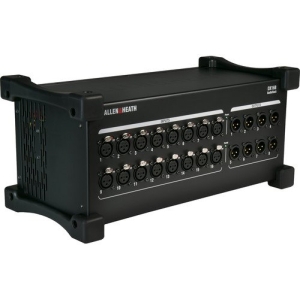

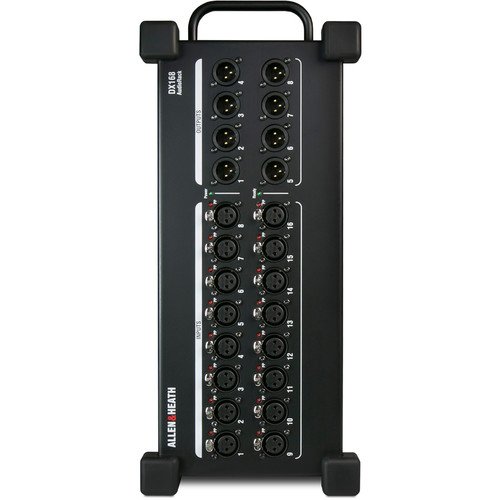

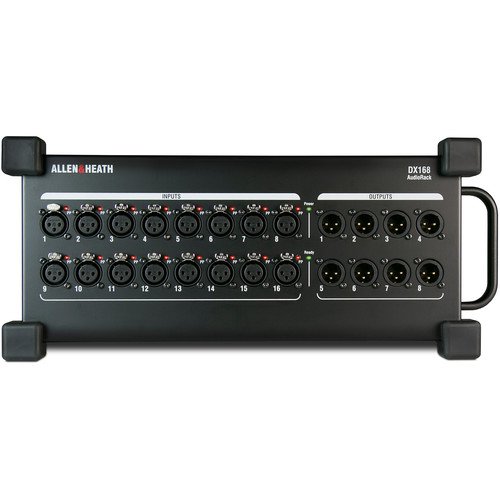

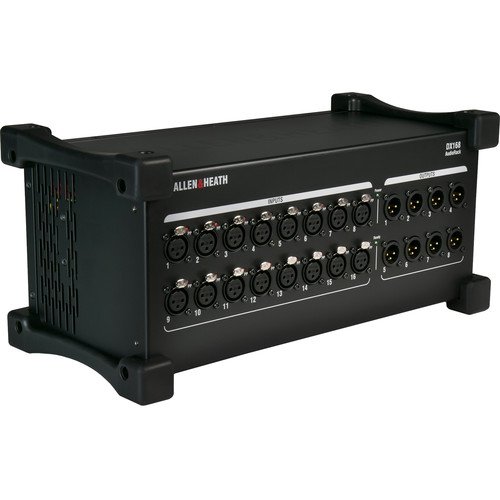

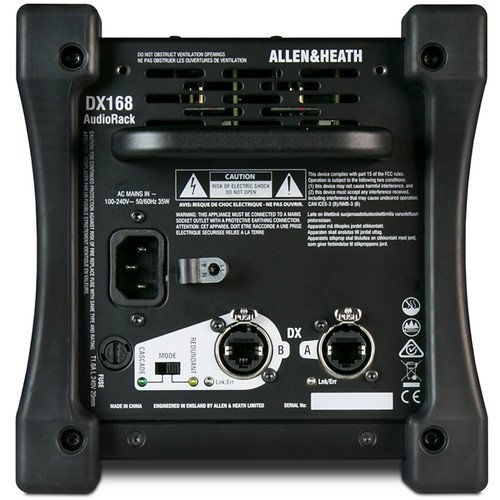

The DX168 Portable DX Expander by Allen & Heath enhances the dLive S Class and C Class mixing systems with 16 XLR mic/line inputs featuring phantom power LED indicators, and eight XLR line outputs. It connects via Cat 5 cable (not included), allowing placement up to 330 feet from the mixer.

Description

Allen & Heath DX168 Portable DX Expander

The rugged DX168 Portable DX Expander from Allen & Heath significantly extends the input and output capabilities of dLive S Class or C Class mixing systems. Equipped with 16 XLR mic/line inputs, each with independent phantom power LED indicators, as well as eight XLR line outputs, it ensures comprehensive connectivity for diverse setups. A Cat 5 cable (sold separately) seamlessly connects the expander to the dLive system, allowing deployment up to 330 feet away from the mixer.

Enhance your system’s versatility with the option to chain up to six DX168 units, culminating in a substantial 96 inputs and 48 outputs. The inclusion of Cascade mode supports daisy-chaining of two expanders, thus maximizing inputs and outputs capacity. Built for durability, this unit features hard-wearing rubber bumpers, ensuring safe placement on stage floors or compatibility with standard 19″ rack-mount systems (rack kit sold separately). Practicality and portability are enhanced with a built-in carry handle.

Key Features

Feature Details
Inputs 16 XLR mic/line with phantom power indicators
Outputs 8 XLR line outputs
Connectivity Cat 5 cable up to 330 feet
Cascade Mode Daisy-chain two DX168 expanders
Construction Rugged design with rubber bumpers
Mounting Compatible with standard 19″ racks (rack kit sold separately)
Portability Includes carry handle
Installation Plug-and-play, no IP addressing required
System Compatibility Works with dLive S Class and C Class systems

Specifications

Category Specification Details
Power AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Power Consumption 40 W (Maximum)
Environmental Operating Temperature 32 to 95°F / 0 to 35°C
Physical Dimensions 16.1 x 7.5 x 7.3″ / 40.9 x 19.1 x 18.5 cm
Physical Weight 10.1 lb / 4.6 kg
Packaging Info Package Weight 13.05 lb
Packaging Info Box Dimensions 23.3 x 13.1 x 13.1″
