Allen & Heath DT168 16×8 Dante/AES67 Audio Expander with 16 Mic Preamps

Allen & Heath DT168 16×8 Dante/AES67 Audio I/O Expander

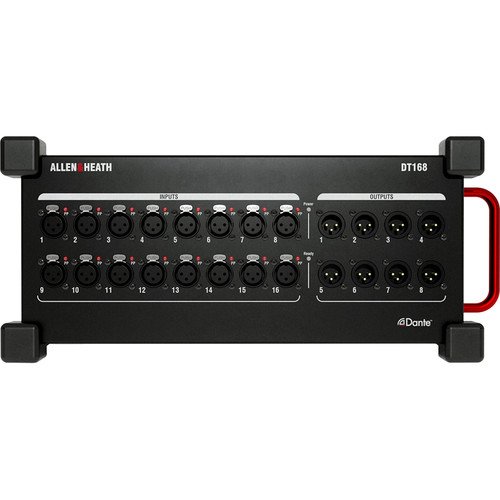

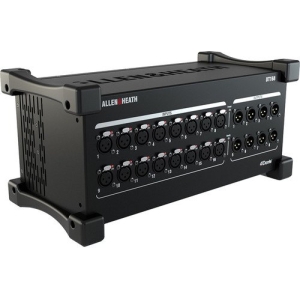

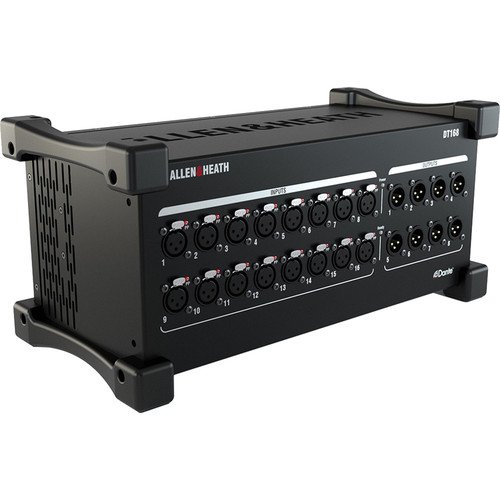

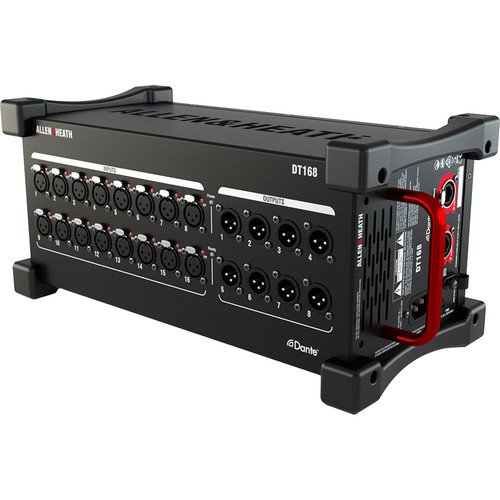

The Allen & Heath DT168 is a versatile 16×8 Dante/AES67 audio I/O expander, meticulously designed for integration with dLive and SQ Series mixers. Ideal for live stage applications, it is perfect for houses of worship, concert venues, and theaters. The unit is equipped with 16 low-noise microphone preamps and eight balanced line outputs, all on balanced 3-pin XLR connectors, ensuring superior audio quality. It supports 48V phantom power, individually selectable per input, with 16 LEDs to indicate the status.

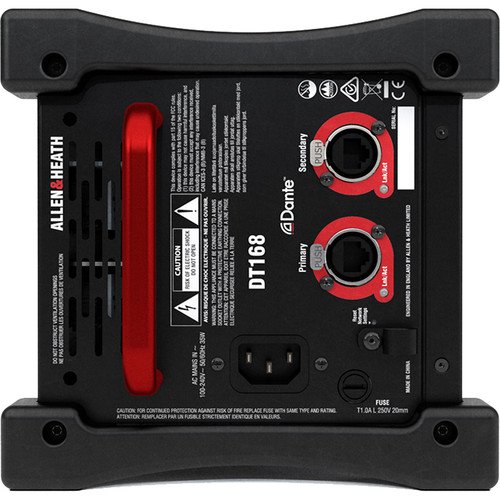

Boasting primary and secondary etherCON ports with secure locking mechanisms, the DT168 prevents accidental disconnections and facilitates straightforward integration into your Dante or AES67 audio network. Easily manage gain, pad, and phantom power settings for the preamps directly from your dLive or SQ mixer. The DT168 is portable, with a built-in carry handle and rubber bumpers for easy, on-the-go stage operations.

Key Features

• 16 mic/line inputs and eight line outputs housed in a compact stagebox form factor
• High-fidelity Allen & Heath preamps and 96 kHz converters
• Secure locking etherCON ports for primary and secondary connections
• Seamless deployment on stage or as an expander in any dLive or SQ Dante network
• Redundant or daisy-chain configuration modes for flexible network setups
• Expandable up to 16 units with additional dLive or SQ Dante cards
• Real-time control of gain, pad, and phantom power via dLive or SQ mixers
• 16 dedicated LEDs for phantom power status indication
• Full compatibility with AES67 and Dante Domain Manager

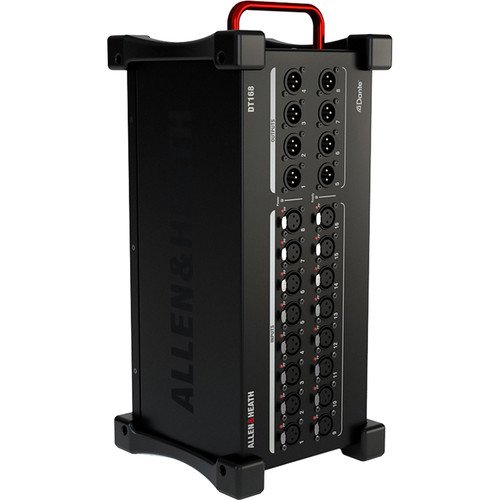

• Durable design with built-in handle and rubber bumpers for portable use
• Optional 19″ rackmount kit available separately
