Allen & Heath DT164-W 16×4 Dante/AES67 Audio Expander Wallmount
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000

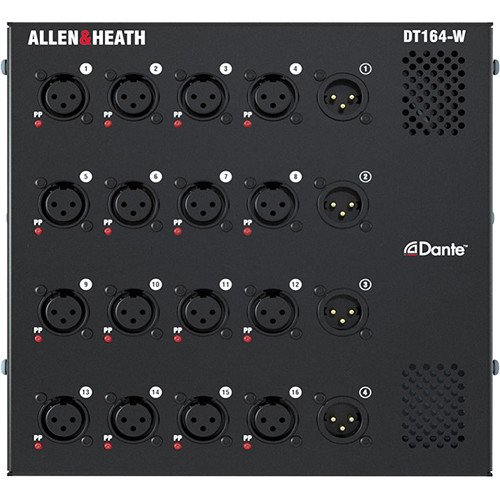

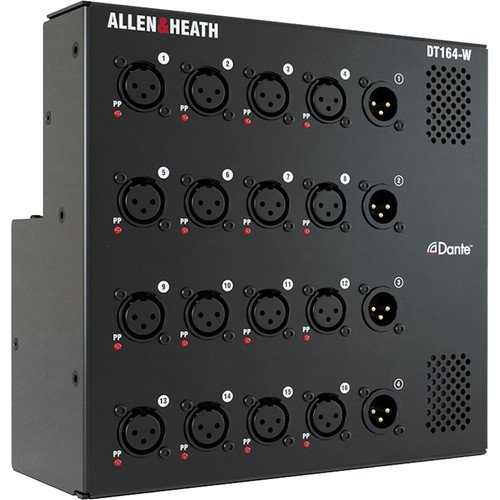

The Allen & Heath DT164-W is a 16×4 wallmount Dante/AES67 audio I/O expander designed for seamless integration with dLive and SQ Series mixers, ideal for houses of worship, concert venues, and theaters. It includes 16 low-noise microphone preamps and four line outputs on balanced XLR connectors, with 48V phantom power selectable per input and LED indicators for each. The unit features 96 kHz converters for high-resolution audio, locking etherCON ports for network stability, and can be remotely controlled via compatible mixers. The DT164-W supports primary/backup power options and various mounting methods for versatile installation.
Description
Allen & Heath DT164-W 16×4 Dante/AES67 Audio I/O Expander
The Allen & Heath DT164-W is a top-tier wallmount audio expander designed for seamless integration with dLive and SQ Series mixers, perfect for various live stage applications including houses of worship, concert venues, and theaters. It features 16 high-quality microphone preamps and 4 line outputs, all on balanced XLR connectors, ensuring superb audio fidelity for modern productions.
Key Features
| Specification | Details |
|---|---|
| Input and Output Configuration | 16 mic/line inputs and 4 line outputs |

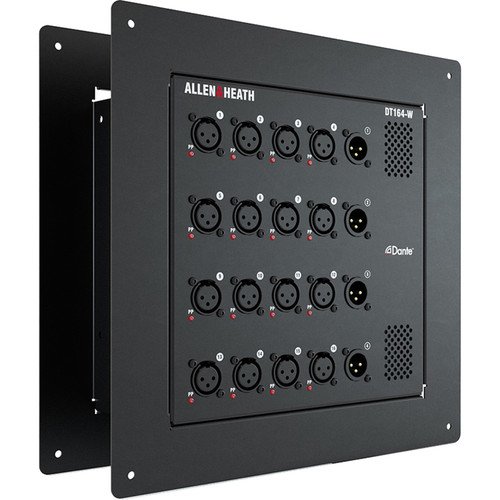

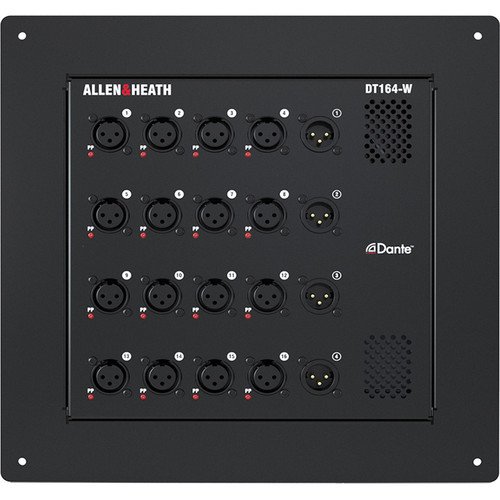

| Mounting Options | Reversible frame for in-wall or on-wall installation |
| NEMA Box Compatibility | Compatible with standard 12×12″ NEMA box or stage floor pockets |
| Preamp Quality | Allen & Heath preamps with 96 kHz converters |

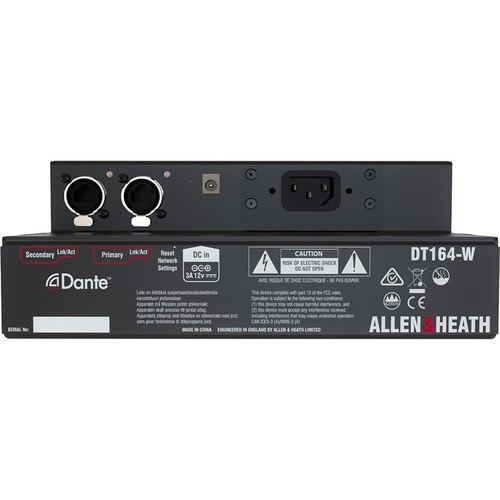

| Network Ports | Primary and secondary locking etherCON ports |
| Operational Modes | Redundant and switched mode support for various network configurations |
| System Expansion | Supports up to 16 units with SQ Dante or dLive 96 kHz Dante card |
| Control Integration | Settings adjustable via dLive or SQ mixers |
| Phantom Power | 16 LEDs indicating 48V phantom power status |
| Network Compatibility | AES67 and Dante Domain Manager ready |
| Installation Flexibility | IEC mains power inlet with replaceable gland module for fixed setups |
| Redundant Power Supply | Supports DC power as a backup |
| Stage Pocket System | Compatible with ACE Backstage 174SLBK stage pocket system |
Specifications
| Category | Specification | Details |
|---|---|---|
| Power | Power Source | AC Input, AC Adapter with Power Brick (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz | |
| DC Input Power | 12 VDC at 3 A | |
| Power Consumption | 40 W (Maximum) | |
| Environmental | Operating Temperature | 32 to 104°F / 0 to 40°C |
| Physical | Dimensions | 8.3 x 8.3 x 3.4″ / 21.1 x 21.1 x 8.6 cm (Excluding Box) 16.3 x 14.8 x 9.8″ / 41.4 x 37.6 x 24.9 cm (Including Box) |
| Weight | 7.1 lb / 3.2 kg (Excluding Box) 12.5 lb / 5.7 kg (Including Box) |
|
| Packaging Info | Package Weight | 11.71 lb |
| Box Dimensions (LxWxH) | 16.3 x 14.6 x 9.8″ |
