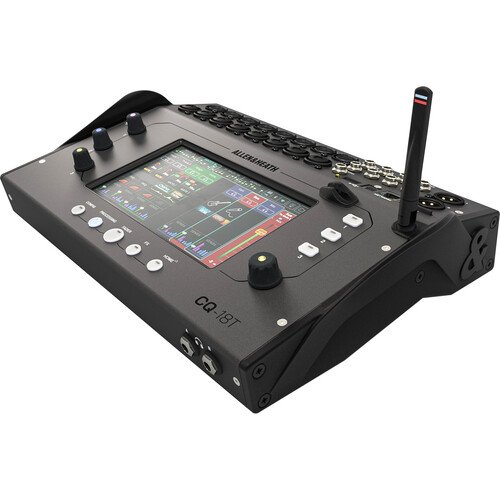

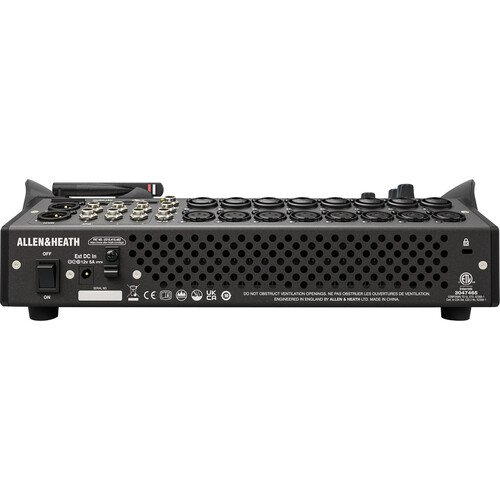

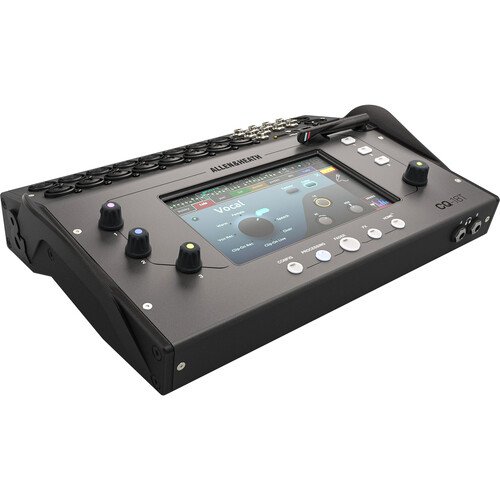

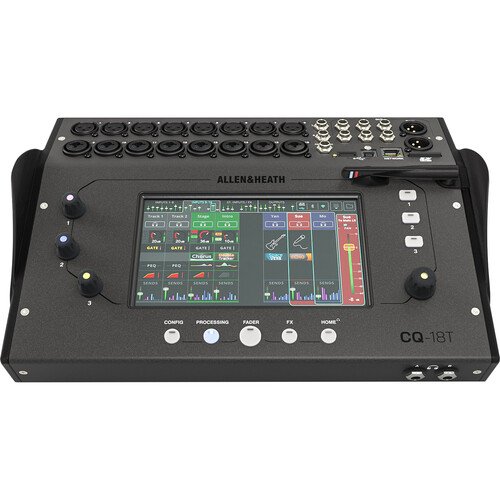

Allen & Heath CQ-18T 18-Channel Digital Mixer with Touchscreen

Allen & Heath

AED 6028.62 inc VAT.

The Allen & Heath CQ-18T is a compact digital mixer equipped with 96 kHz FPGA processing, built-in Wi-Fi for wireless control, and SD/USB audio recording and playback, ideal for bands, producers, and AV rental houses, suitable as a primary mixer in small venues or a sub mixer on larger stages.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CQ18T Categories: , , Brand:

Description

Mix and record with the Allen & Heath CQ-18T, a compact digital mixer featuring 96 kHz FPGA processing, wireless control via built-in Wi-Fi, and SD/USB audio recording and playback, well suited for bands, producers, and AV rental houses. Use it as a main mixer in a small venue or a sub mixer on a larger stage.

The CQ-18T mixer utilizes a 7″ capacitive touchscreen interface to easily navigate and control the robust mix engine that comes complete with several assistants to help your mixes sound their best including a gain assistant, feedback assistant, FX assist engine, and Automatic Mic Mixer (AMM). Take control of the full complement of channel strip effects like EQ, compression, and gating that’s available on every channel, and set up several sub mixes for monitoring and effects. The CQ-18T features 16 mic/line XLR/combo XLR-1/4″ inputs, a pair of balanced 1/4″ TRS inputs, and two XLR main outputs as well as six 1/4″ mix outputs. There are also two assignable headphone outputs. The mixer ships with a 12 VDC power supply.

Features

  • 16 Mic/Line Inputs + 2 x 1/4″ Inputs
  • 2 x XLR Main + 6 x 1/4″ Mix Outputs
  • 7″ Capacitive Touchscreen Interface
  • 24×22 USB-B Audio Interface
  • 24×22 Multitrack Rec/Playback via SD
  • Stereo USB Rec/Playback
  • CQ-MixPad Control App
  • 96 kHz FPGA Processor with Built-In FX
  • AMM, Feedback, FX Assist Engines

Specifications

Specification Details
Number of Analog Input Channels
18
Number of Mic Preamps
No
Number of Analog Output Channels
6
Max I/O Capacity
18 x Input / 6 x Output
Mix Routing
1 x Stereo Main LRC
6 x Mono Bus
Groups
No
Presets
No
Display
7″ Touchscreen (Backlit)
Faders & Level Adjustment
No
Input Polarity
Normal/Reverse
Dynamic Processing
Compressor, Gate
Solo/Mute
Solo, Mute per Input Channel, Bus, Master
Built-In Effects
4 x Stereo Effect (Type Unspecified)
Automatic Mic Mixing
Yes
Sample Rates
96 kHz
Analog Inputs
8 x XLR 3-Pin Balanced Mic/Line Input
8 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input
2 x 1/4″ TRS Balanced Line Input (1 Stereo Pair)
Analog Outputs
2 x XLR 3-Pin Balanced Main Output (1 Stereo Pair)
6 x 1/4″ TRS Balanced/Unbalanced Mix Output
2 x 1/4″ TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V
Digital I/O
1 x RJ45 (Network)
MIDI I/O
No
USB
1 x USB-A (Audio Playback, Audio Streaming, External Memory, Service)
1 x USB-B 2.0 (Host Connection)
USB I/O Capacity
24 x Input / 22 x Output
Wireless
Wi-Fi
*Built-In
Mobile App Compatible
Yes: Android & iOS
App Name: CQ-MixPad
Functionality: Access Stored Files, Adjust Settings, Remote Control
*As of August, 2023: Check with manufacturer for the most up-to-date compatibility
External Display I/O
No
Max Multitrack Recording
24 Tracks
Media Support
SD
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
12 VDC at 4 A
Rack Mountable
Yes
Rackmount Size
6 RU (with Optional Hardware)
Dimensions
13.6 x 9.5 x 3.5″ / 34.6 x 24.2 x 8.8 cm
Weight
6.6 lb / 3 kg
Package Weight
9.795 lb
Box Dimensions (LxWxH)
16.5 x 12.2 x 8.4″
