Allen & Heath AB168 Portable Audiorack 16 Mic Inputs 8 Outputs for Live Sound
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
The AB168 Portable Audiorack from Allen & Heath is a durable audio interface stage box tailored for GLD and Qu digital mixing systems. It offers sixteen mic/line XLR inputs, individual LED phantom power indicators, eight XLR outputs, and connects to the mixer over a single Cat5 cable using dSNAKE protocol. The unit supports daisy-chaining with additional AB168 or AR2412 Audioracks and ME personal monitor mixing systems. Designed for stage use, it features rubber bumpers, a lightweight 10.6 lb build, a carry handle, and optional rackmounting.
Description

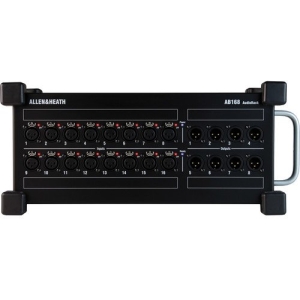

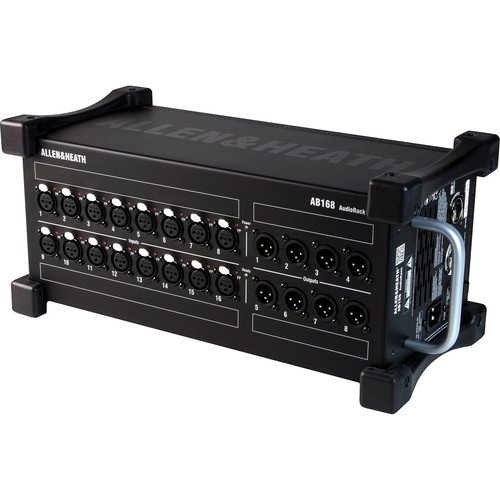

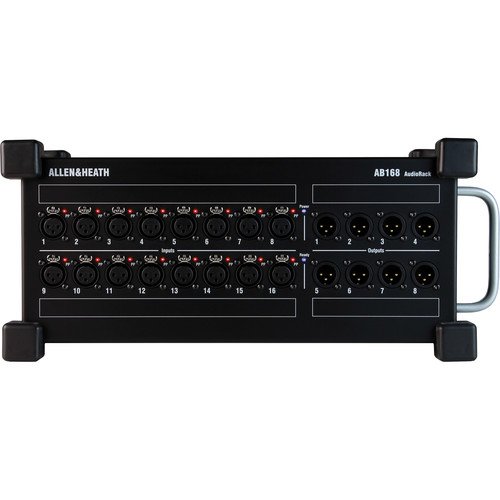

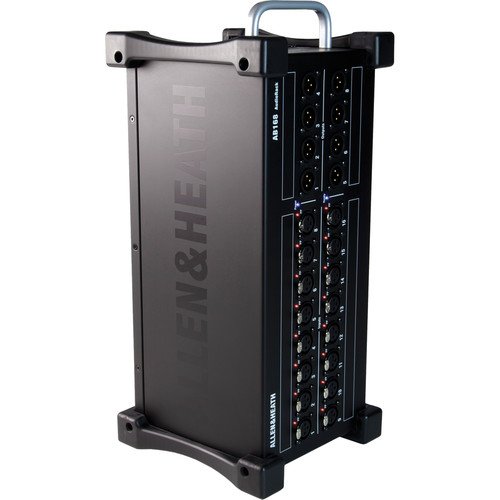

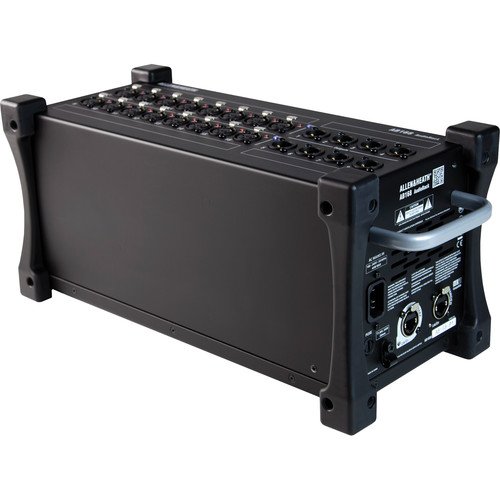

Allen & Heath AB168 Portable Audiorack
The AB168 Portable Audiorack from Allen & Heath is a robust audio interface stage box designed for seamless integration with GLD and Qu digital mixing systems. It is ideal for live sound production and installations, offering a high degree of flexibility and performance.
Key Features
- 16 mic/line XLR inputs with high-quality mic preamps and LED phantom power indicators
- 8 XLR outputs
- Connects to a mixer with a single Cat5 cable using dSNAKE protocol
- Expander port for daisy-chaining with additional Audiorack units or connecting to ME personal monitor systems
- Rugged design with rubber bumpers for stage use, and optional rackmount capability
- Lightweight at 10.6 lb with a carry handle for easy transport
- Auto firmware updates to synchronize with the GLD system
Specifications
| Specification | Details |
|---|---|
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 20 W (Maximum) |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Dimensions | 16.2 x 7.4 x 6.1″ / 41.1 x 18.8 x 15.5 cm |
| Weight | 10.6 lb / 4.8 kg |
| Package Weight | 13.45 lb |
| Box Dimensions (LxWxH) | 23.228 x 13.465 x 13.15″ |
