Alesis MM8USBFXPTOOLS 8 Channel/Recording Interface w/ Effect

Name: Alesis MM8USBFXPTOOLS 8 Channel/Recording Interface w/ Effect
Brand: Alesis
SKU: MM8USBFXPTOOLS
Price: 783.44 AED
Availability: InStock

AED 783.44 inc VAT.

MultiMix 8 USB FX features four XLR inputs with independent gain pots on channels 1-4. These XLR inputs also have a switchable phantom power option to accommodate both dynamic and condenser microphones. TRS Line inputs are also available on all eight channels. New to the MultiMix 8 USB FX is a high-impedance input on channel 2, which allows direct connection of a guitar or bass; this is a great convenience for singer/songwriters looking to get a clean, “hot” signal. A Tape RCA stereo input is also included adding the ability to mix in audio from other sources such as a CD or LP player. Ideal for podcasting, livestreaming, home recording or live use, MultiMix 8 USB FX features onboard volume, pan, and EQ controls (three-band with sweepable parametric mids on channels 1 and 2, three-band on 3 and 4, two-band on 5 8) for making quick, accurate adjustments to your mix. The MultiMix 8 USB FX mixer has a two-channel, five-stage, multicolor LED meter for visual monitoring the main output level. Channels 1 – 4 offer switchable high-pass filtering at 80Hz to reduce low-frequency rumble, handling, and wind noise. For convenient stereo mixing and recording, channels 5/6 and 7/8 are configured as a stereo pairs at the EQ, level and pan controls.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

SKU: MM8USBFXPTOOLS Category: Mixers Brand: Alesis

Description

Description

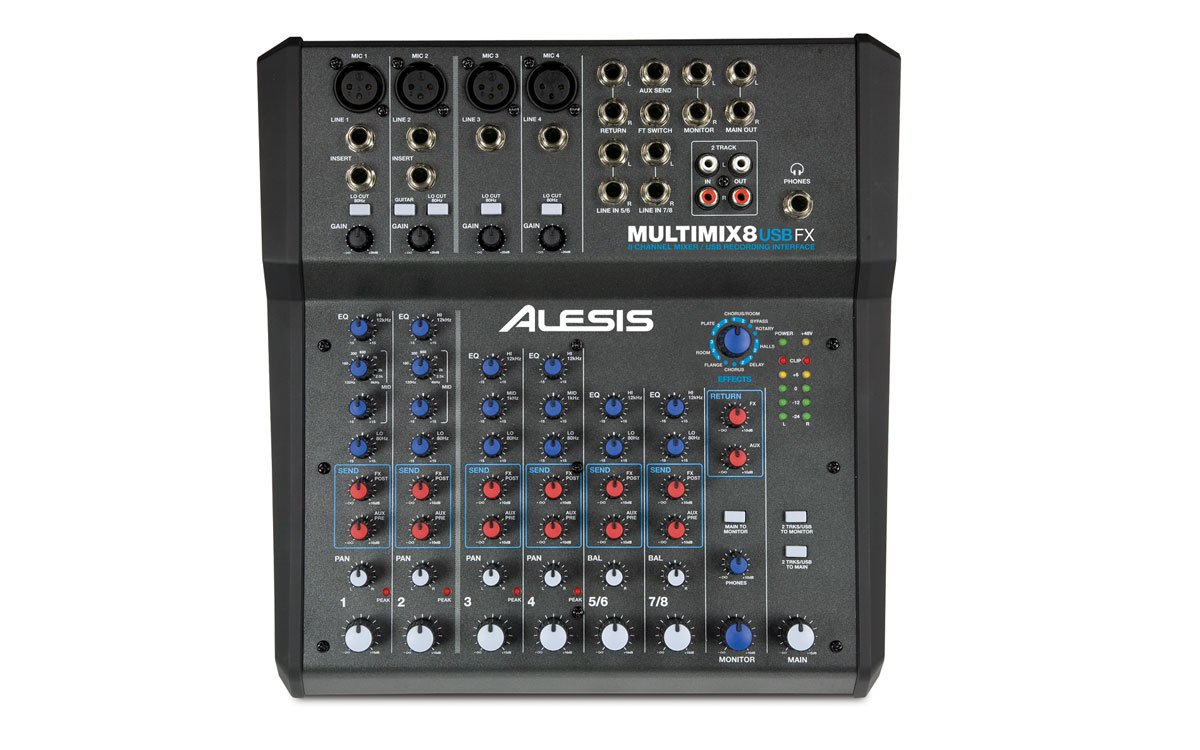

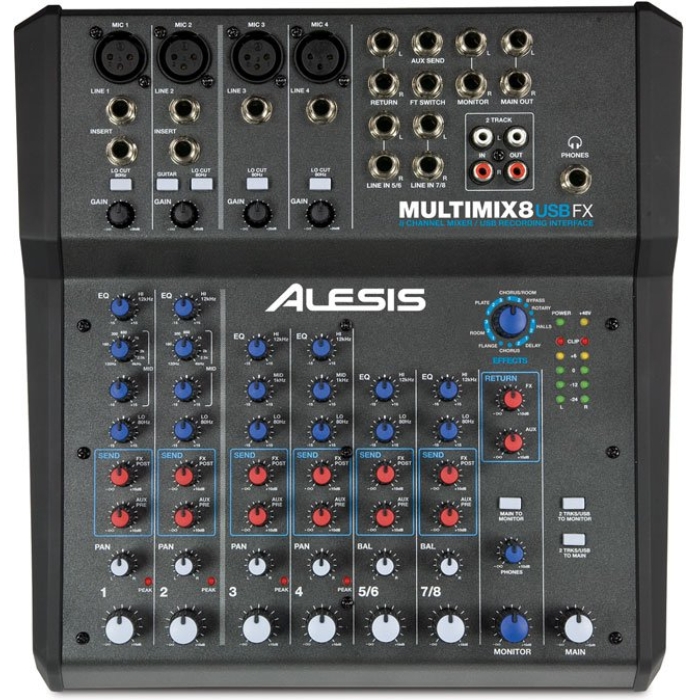

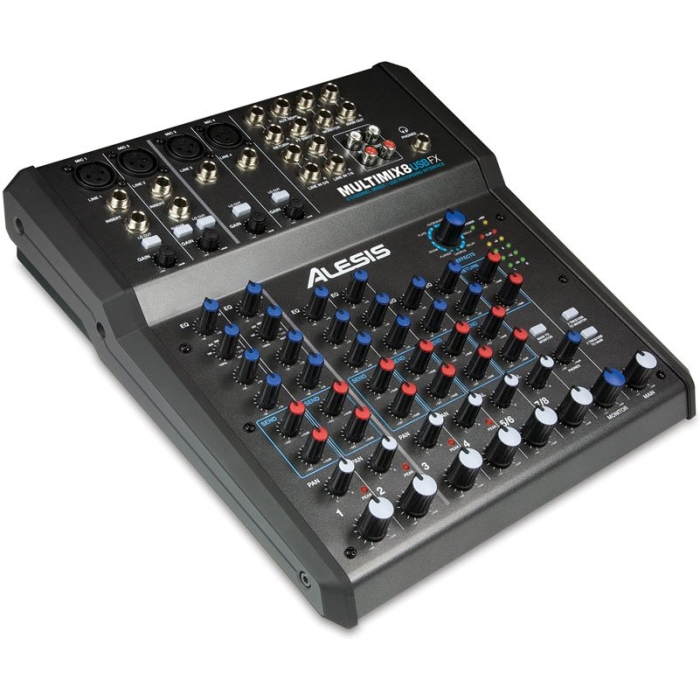

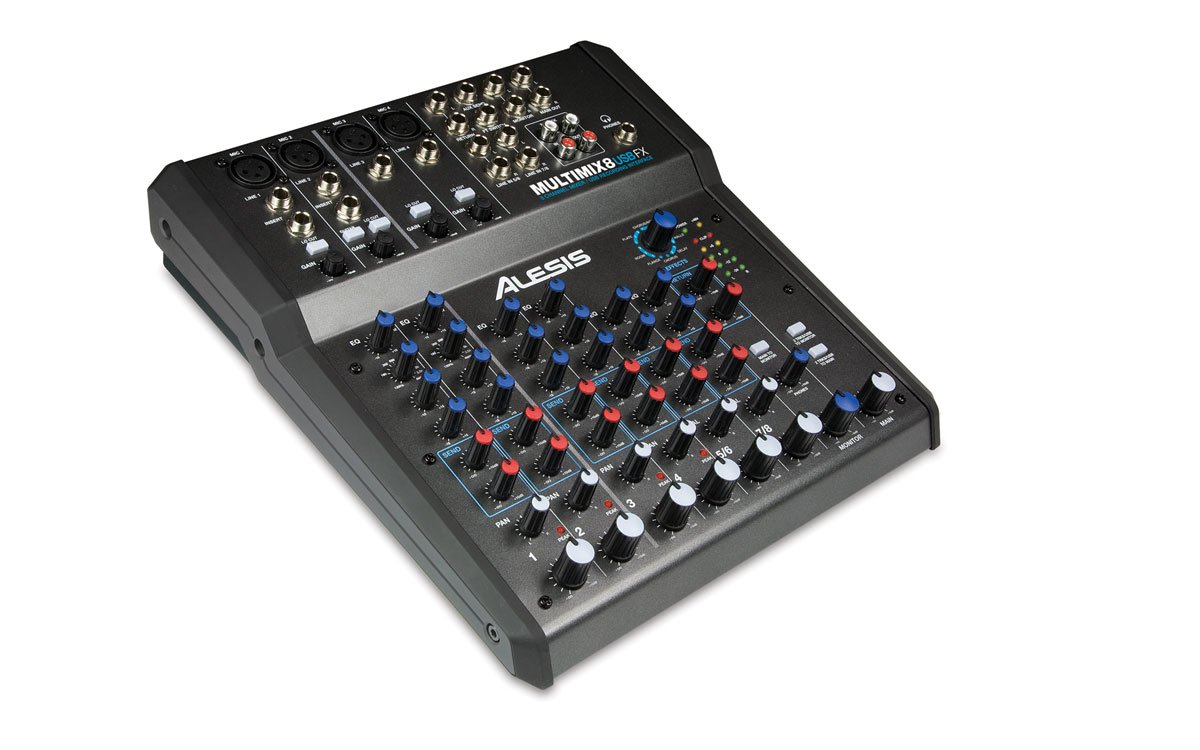

The Alesis MultiMix 8 USB FX is a compact 8-channel mixer offering versatile I/O and built-in digital effects, making it well suited for live sound reinforcement and music/podcast recording. It features four mono channels with 3-band EQ, selectable high-pass filters, and peak LEDs, plus two stereo channels with 2-band EQ. The mono channels can be fed via XLR mic inputs with globally selectable phantom power or via 1/4″ line inputs—the second channel incorporates a switch to accommodate a Hi-Z instrument. Independent aux send knobs allow you to send any channel to your favorite outboard time-based processor or to the built-in effects processor, which provides a variety of reverb, delay, and modulation effects.

Connect a media player to the RCA inputs, and plug the RCA outputs to an external audio recorder. The mixer’s onboard USB audio interface enables direct connectivity with a Mac or Windows computer, should you need to integrate a DAW into your setup. The 1/4″ main, monitor, and headphone outputs have separate level controls enabling convenient routing to multiple monitoring systems. The MultiMix 8 USB FX includes a USB cable and the required power supply.

Features

Compact 8-channel mixer ideal for live stage applications and home, project, and mobile studios

Class compliant, plug-and-play USB functionality for Mac and Windows computers—no driver installation required

Integrated USB interface for computer-based recording and playback

Four mono channels with XLR and 1/4″ inputs, adjustable gain, switchable high-pass filters, and 48V phantom power

Line input 2 can be switched to Hi-Z for direct connection of a guitar or bass

Two stereo line inputs accommodate stereo sources such as keyboards and synthesizers

3-band EQ with sweepable mids on channels 1-2, 3-band EQ with fixed mids on channels 3-4, and 2-band EQ on channels 5-8

Inserts on channels 1-2 for integration of analog outboard gear

Built-in DSP provides digital effects such as reverb, delay, and modulation

Aux send and return jacks for hookup of an external effects processor

Main, monitor, and headphone output connectors with independent level controls

Peak and multi-segment LEDs help you avoid clipping

Includes Cubase LE software so you can easily record, edit, and polish your work

Specifications

Total # Of Inputs	8
Mic/Line Inputs	4 x 3-Pin XLR Mic Inputs (Balanced) 4 x 1/4″ TRS Line Inputs (Balanced) 1 x 1/4″ TRS Line/Hi-Z Input (Balanced/Unbalanced)
Stereo Line Inputs	4 x 1/4″ TRS Line Inputs (Two Stereo Pairs, Balanced)
AUX Sends	1 x 1/4″ TS (Unbalanced)
AUX Returns	2 x 1/4″ TRS (One Stereo Pair, Balanced)
Inserts	2 x 1/4″ TRS (Unbalanced, Tip = Send, Ring = Return)
Main Outputs	2 x 1/4″ TRS (One Stereo Pair, Balanced)
2-Track I/O	2 x RCA Coaxial Inputs (One Stereo Pair, Unbalanced) 2 x RCA Coaxial Outputs (One Stereo Pair, Unbalanced)
Monitor Outputs	2 x 1/4″ TRS Monitor Outputs (One Stereo Pair, Balanced) 1 x 1/4″ TRS Stereo Headphone Output (Unbalanced)
Footswitch Input	1 x 1/4″ TRS
EQ Section	High (All Channels): ±15 dB at 12 kHz Mid (Semi-Parametric, Channels 1-2): ±15 dB at 120 Hz to 4 kHz (Sweepable) Mid (Fixed, Channels 3-4): ±15 dB at 1 kHz Low (All Channels): ±15 dB at 80 Hz
High-Pass Filter	80 Hz (Switchable)
Channel Level Control	Rotary Potentiometers
Trim/Gain Control	Rotary Potentiometers
Gain Range	Mic/Line Input: -∞ to +20 dB Channel Level: -∞ to +10 dB Aux Send: -∞ to +10 dB Aux Return: -∞ to +10 dB Main/Monitor Level: -∞ to +10 dB
Phantom Power	48 VDC, Globally Selectable
Metering	Peak LEDs on Channels 1-4 Dual 5-Segment Main Output LEDs Power LED Phantom Power LED
USB Port	1 x USB 1.1 Type-B
USB Audio	Bit Depth: 16-Bit Sample Rate (ADC): 8, 11.025, 16, 22.05, 32, 44.1, or 48 kHz Sample Rate (DAC): 32, 44.1, or 48 kHz
Minimum Input Level	Mic: -69 dBu Line: -49 dBu
Nominal Input Level	Mic: -19 dBu Line: +1 dBu Aux Return: -16 dBu 2-Track Input: -10 dBV
Maximum Input Level	Mic: +18 dBu Line: +18 dBu Aux Return: +18 dBu 2-Track Input: +18 dBV
Nominal Output Level	Main/Monitor/Aux Output: +4 dBu 2-Track Output: -9 dBV
Maximum Output Level	Main/Monitor/Aux Output: +18 dBu 2-Track Output: +19 dBV

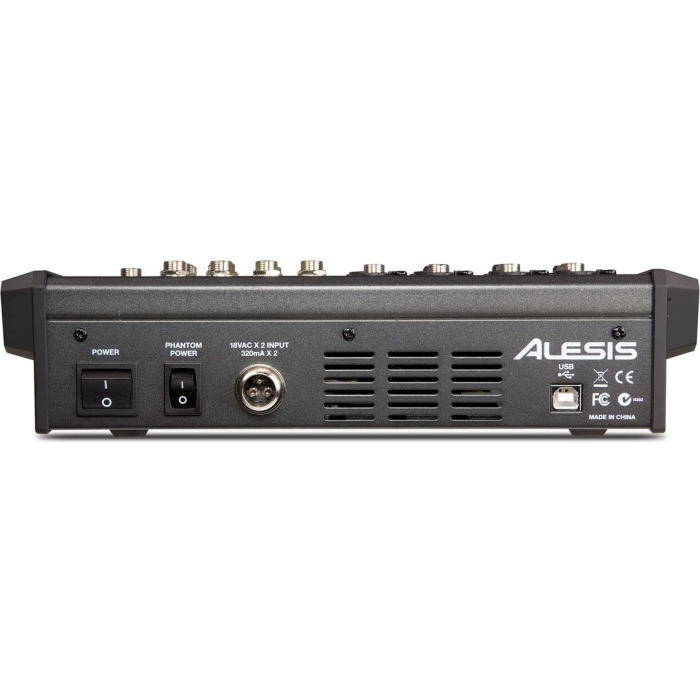

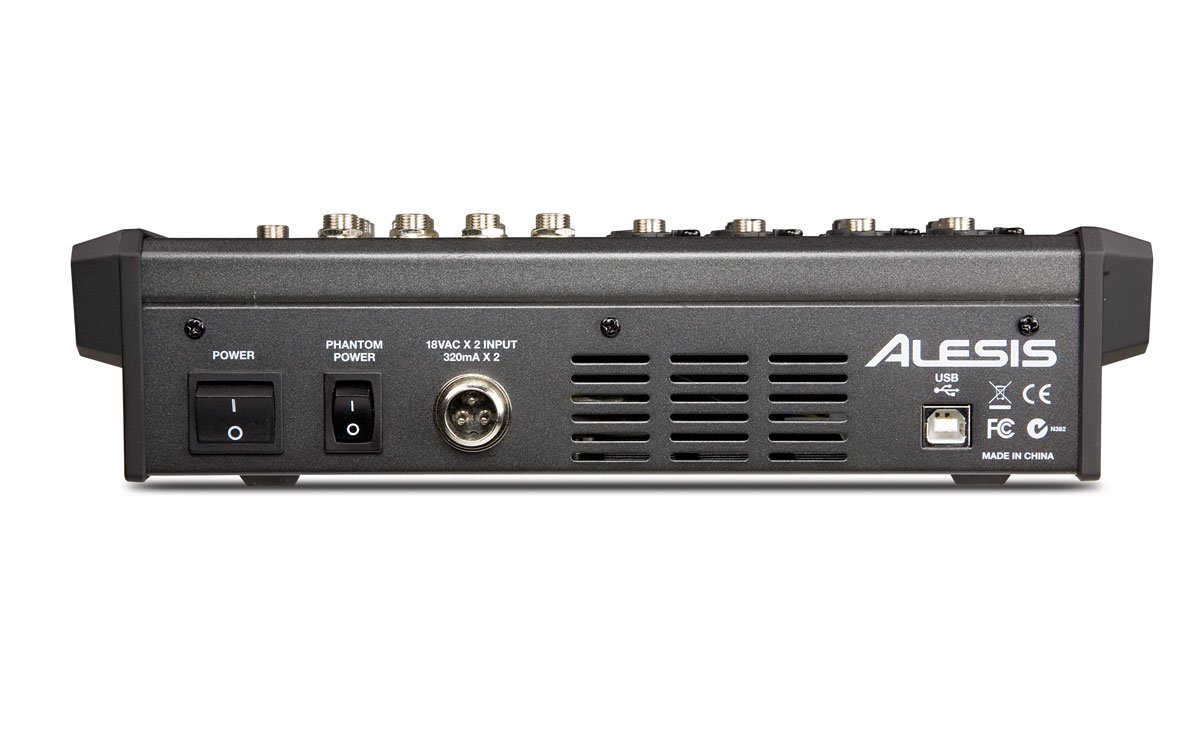

Power Supply	18 VAC x 2, 320 mA x 2
System Requirements	Mac OS X 10.7 or Later Available USB Port Windows 7 or Later Available USB Port
Dimensions	10.3 x 10.8 x 3.3″ / 26.0 x 27.3 x 8.3 cm
Weight	4.9 lb / 2.2 kg
