Description

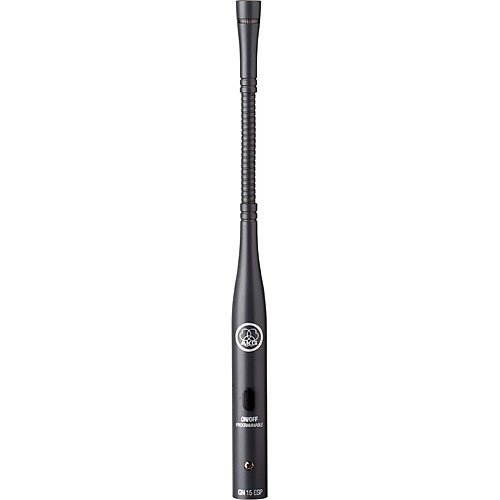

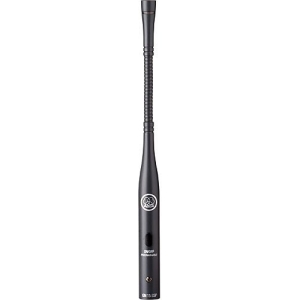

AKG DAM Series GN ESP Gooseneck Microphone Module
The AKG DAM Series GN ESP gooseneck modules are designed for both fixed and mobile installations, providing exceptional control and clarity in a variety of professional environments. These modules come with a programmable mute switch that can be configured to function as on/off, push-to-talk, or push-to-mute, along with a highly visible LED ring that indicates MIC ON/OFF status. These features make the GN ESP gooseneck modules perfect for small-discussion systems.
Available in three lengths—15cm (6in), 30cm (12in), and 50cm (20in)—these gooseneck modules offer versatile options for different setup requirements. The electronic circuit design ensures high immunity to radio-frequency interference, maintaining clean and clear audio transmission. Moreover, the gooseneck module is compatible with all DAM Series capsules, including CK31, CK32, CK33, CK47, and CK80, through highly reliable contacts, ensuring seamless integration into existing systems.
Specifications
| Category |
Specifications |
| Audio Frequency Bandwidth |
20 to 20,000 Hz |
| Recommended Load Impedance |
2000 Ohms |
| Powering Interface |
| Voltage |
9 to 52 V |
| Current |
3.5 mA |
|
| Audio Output |
| Type |
Balanced XLR |
| Gender |
Male |
| Contacts |
3-pin |
|
| Design |
matte dark gray finish |
| Dimensions / Weight |
|
