AKG GN 30 Gooseneck Module with 5-Pin XLR Connector

AKG

AED 1312.76 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: GN30 E 5-pin Categories: , , Brand:

The DAM Series GN 30 1′ High-Performance Gooseneck Module from AKG is designed for secure installations, featuring an in-line XLR phantom power adapter with a 250 Hz bass roll-off, LED ring, and On/Off jumper. Its mini XLR connector facilitates easy installation without large holes or soldering, and it is compatible with all DAM Series capsules like CK31, CK32, CK33, CK47, and CK80.

Description

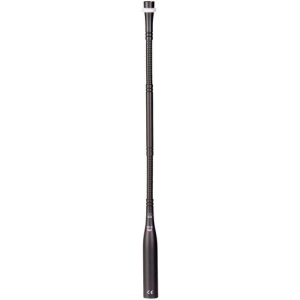

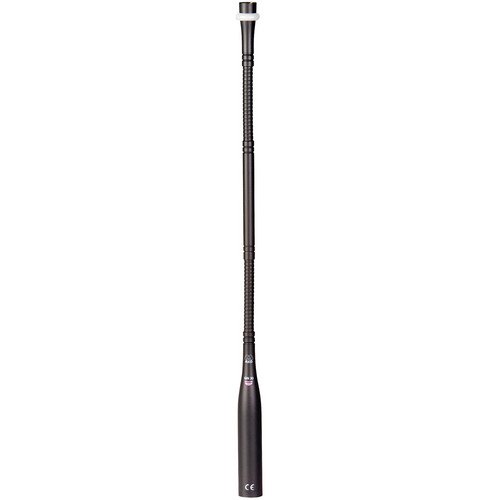

AKG DAM Series GN 30 1′ High-Performance Gooseneck Module

The DAM Series GN 30 1′ High-Performance Gooseneck Module from AKG is engineered for secure and long-lasting installations. Ideal for use in houses of worship, conference rooms, and theaters, this module features a discreet screw-on design that simplifies the installation process. Equipped with an in-line XLR phantom power adapter that includes an integrated 250 Hz bass roll-off filter, LED ring, and an On/Off jumper, the GN 30 ensures reliable performance across various settings. The mini XLR connector aids in avoiding extensive furniture modifications and simplifies installation tasks.

Key Features

  • Discreet, screw-on mounting module for permanent installations
  • Detachable phantom power adapter eliminates time-consuming soldering work
  • Mounting accessories for quick and hassle-free installation
  • Rugged gooseneck construction for extended reliability and stability
  • Highly reliable contacts for capsule modules prevent contact problems

Specifications

Specification Details
Frequency Bandwidth 20 to 20,000 Hz
Filter Bass Cut Filter: 250 Hz
Recommended Load Impedance 2,000 Ω
Voltage 9 to 52 V
Current 3 mA
Audio Output Type Balanced XLR
Audio Output Gender Male
Audio Output Contacts 3 pin
Length 1′ (30 cm)
Diameter 0.7″ (20.0 mm)
