Microphone Mixers

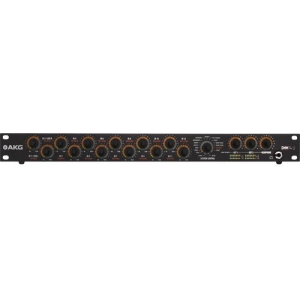

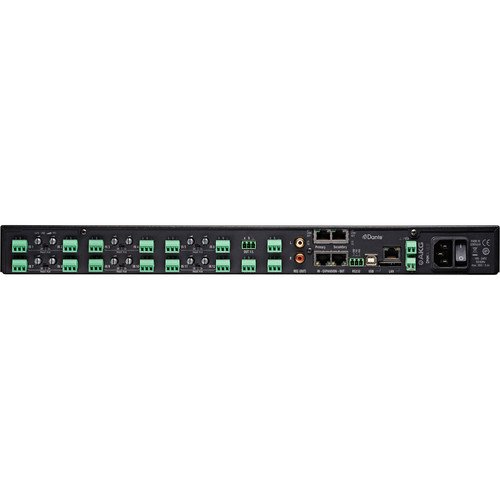

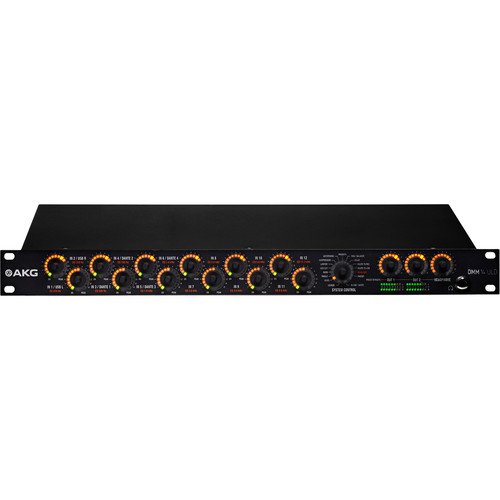

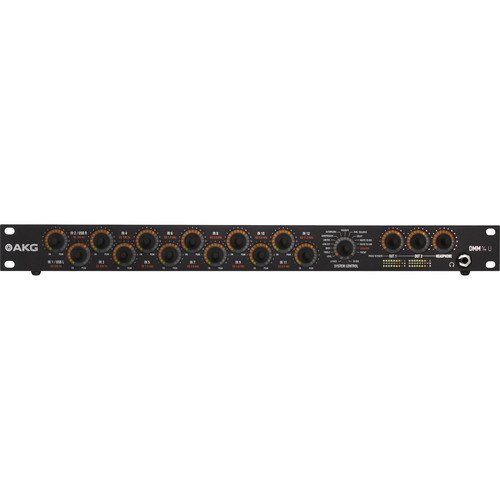

AKG DMM14 ULD Digital Automatic Microphone Mixer with LAN and DANTE Interface – 6500H00280

AKG

AED 21997.50 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DMM14 ULD Categories: , , Brand:

The DMM14 ULD Digital Automatic Microphone Mixer by AKG is designed for large meetings and conferences, featuring DSP for precise mixing of up to 140 channels, and includes a DANTE chip for broadcast applications, LAN interface, and multiple routing options such as two stereo audio outputs and one USB stereo output.

Description

AKG DMM14 ULD Digital Automatic Microphone Mixer with LAN and DANTE Interface

The AKG DMM14 ULD is a cutting-edge digital microphone mixer designed for professional audio environments, such as large meetings, conferences, and broadcast applications. Featuring advanced DSP functions and DANTE connectivity, this mixer ensures pristine audio quality and versatile operation.

Key Features

  • Handles up to 140 channels by cascading up to ten DMM14 ULD mixers
  • Two additional stereo audio outputs and one stereo USB for diversified routing
  • High signal-to-noise ratio minimizes noise from multiple open microphones
  • Incorporates DANTE chip for flexible input and output streaming
  • 22 free assignable DANTE outputs; 4 DANTE streams can be utilized as inputs
  • LAN interface for remote control over large distances
  • 12-band graphic EQ on outputs for optimized loudspeaker tuning
  • Six programmable presets for various scenarios
  • Two channel USB streaming In and Out for IT network interfacing
  • Advanced DSP functions including filters, compressor/limiter, and more
  • Suitable for spoken word applications in conferences, TV shows, and more

Specifications

Specification Details
Input Channels 4 x DANTE channel
Output Channels 22 x DANTE (14 x direct output, 2 x output 1, 2 x output 2, 2 x record, 2 x USB)
1 x USB output to DANTE
DSP Functions Treble, bass, low-cut, limiter, compressor, automix, priority, pan/balance, delay
Phantom Power 48 V maximum, 10 mA per input
Type Symmetrical
Level -60 dBu to 0 dBu
Frequency Range +/-3 dB, 20 Hz – 20 kHz
THD & Noise < 0.1%
Noise Level < -120 dBu (22 Hz – 22 kHz, QPK)
Dynamics > 100 dB
Distortion 20 dB
S/N Ratio > 90 dB (22 Hz – 22 kHz, RMS, A-Filter)
