Studio Monitors

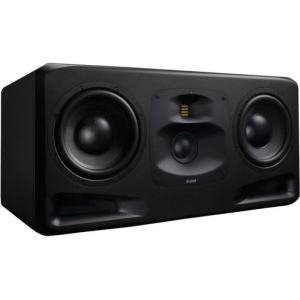

Adam Audio S5H Active 3-Way Studio Monitor with 2×10″ Woofers (Horizontal)

Adam Audio

AED 42069 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: S5H Categories: , , Brand:

The S5H by Adam Professional Audio is a high-performance studio reference monitor optimized for horizontal placement in medium to large control rooms. It delivers a total of 1800W RMS through dual 10” HexaCone woofers, a 4” dome/cone hybrid midrange, and a handcrafted folded-ribbon tweeter. Featuring Adam’s custom mid- and high-range propagation systems, the S5H ensures a broad and consistent sweet spot, making it ideal for critical audio mixing and monitoring tasks.

Description

Adam Professional Audio S5H Studio Monitor

The S5H from Adam Professional Audio is an active studio reference monitor designed for horizontal orientation in medium-sized and large control rooms. Capable of delivering 1800W RMS of cumulative amp power, it features two 10” HexaCone woofers, one 4” dome/cone hybrid midrange driver, and a handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.

Key Features

  • 2 x 10″ HexaCone Woofers
  • 4″ Dome/Cone Hybrid Midrange Driver
  • S-ART Tweeter with HPS Waveguide
  • 2 x 700W PWM (Class D) Woofer Amplifiers
  • 300W PWM (Class D) Midrange Amplifier
  • 100W PWM (Class D) Tweeter Amplifier
  • 22 Hz – 50 kHz Frequency Response
  • Adjustable Input Sensitivity and Output
  • 6-Band Equalizer with HPF/LPF Filters
  • XLR Analog and Digital Inputs

Specifications

Monitor Type Active 3-Way
Enclosure Bass-Reflex, Shielded
Drivers HF Driver: 1 x 2″ / 50.8 mm Ribbon Tweeter
MF Driver: 1 x 4″ / 100 mm Composite Dome/Cone Hybrid with 2.4″ / 60 mm Voice Coil
LF Driver: 1 x 10″ / 265 mm HexaCone Woofer with 3″ / 76 mm Voice Coil
Amplification HF Amplifier: Class-D Rated at 100 W
MF Amplifier: Class-D Rated at 300 W
2 x LF Amplifier: Class-D Rated at 700 W
Frequency Range 22 Hz to 50 kHz
Maximum Sound Pressure Level (SPL) 131 dB
Total Harmonic Distortion (THD) 0.3%
Maximum Input Level +24 dBu
EQ 1 x HF Shelf dB
1 x LF Shelf dB
Crossover Frequency Low-Pass: 250 Hz
High-Pass: 3 kHz
Audio I/O 1 x XLR Analog Input (48 Kilohms)
1 x XLR AES/EBU Digital Input
1 x XLR AES/EBU Digital Output
USB & Network I/O 1 x USB Type-B (Remote)
AC Input Power 100 to 240 VAC, 50/60 Hz
Power Consumption 900 W (Maximum)
Dimensions (W x H x D) 34.8 x 16.9 x 19.7″ / 885 x 430 x 500 mm
Weight 160.0 lb / 72.6 kg
