Studio Monitors

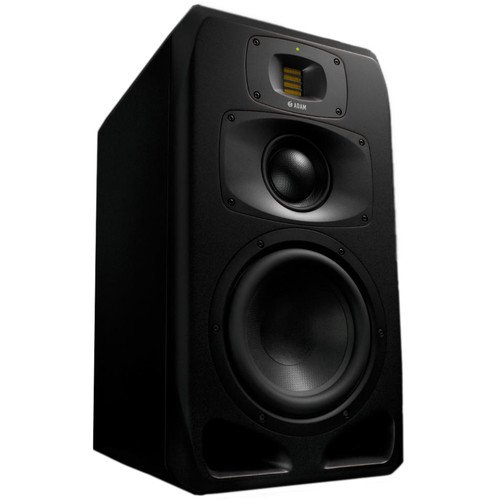

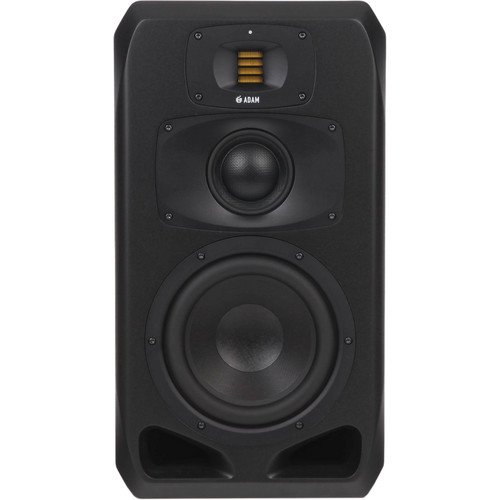

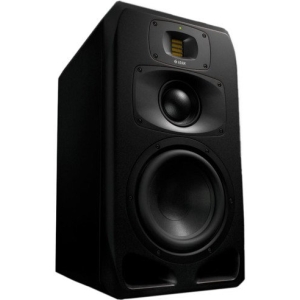

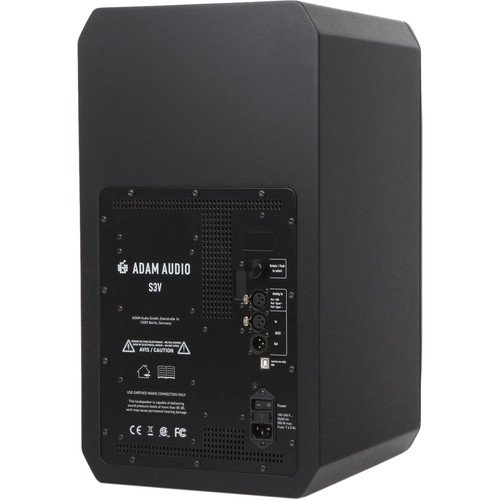

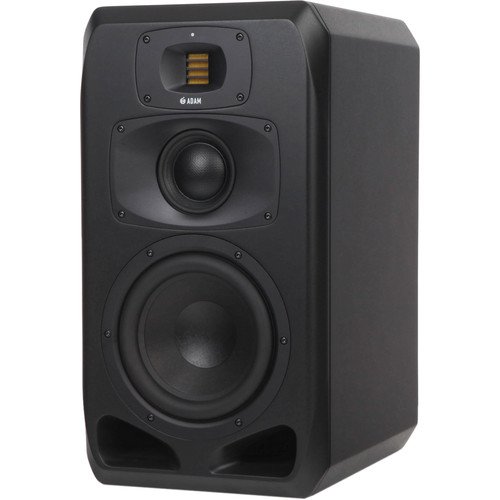

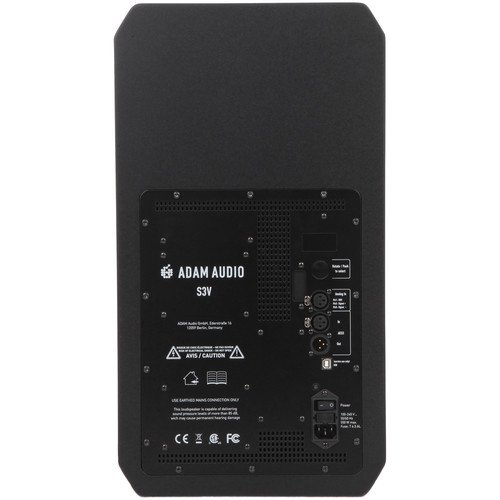

Adam Audio S3V Active 3-Way 9″ Studio Monitor with 850W Power (Vertical, Single)

Adam Audio

AED 15779 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: S3V Categories: , , Brand:

The S3V from Adam Professional Audio is an active studio reference monitor optimized for vertical use in medium or small control rooms, delivering 850W RMS with components including a 9” HexaCone woofer, 4” hybrid midrange driver, and handmade folded-ribbon tweeter, all designed to provide a wide and stable sweet spot with advanced waveguides.

Description

The S3V from Adam Professional Audio is an active studio reference monitor designed for vertical orientation in medium-sized or smaller control rooms. Capable of delivering 850W RMS of cumulative amp power, it features a 9” HexaCone woofer, 4” dome/cone hybrid midrange driver, and handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.



Features

  • 9″ HexaCone Woofer
  • 4″ Dome/Cone Hybrid Midrange Driver
  • S-ART Tweeter with HPS Waveguide
  • 500W PWM (Class D) Woofer Amplifier
  • 300W PWM (Class D) Midrange Amplifier
  • 50W Class A/B Tweeter Amplifier
  • 32 Hz – 50 kHz Frequency Response
  • Adjustable Input Sensitivity and Output
  • 6-Band Equalizer with HPF/LPF Filters
  • XLR Analog and Digital Inputs
Specification Details
Monitor Type Active 3-Way
Enclosure Bass-Reflex, Shielded
Drivers HF Driver: 1 x 2″ / 50.8 mm Ribbon Tweeter
MF Driver: 1 x 4″ / 100 mm Composite Dome/Cone Hybrid with 2.4″ / 60 mm Voice Coil
LF Driver: 1 x 9″ / 223 mm HexaCone Woofer with 2″ / 50 mm Voice Coil
Amplification HF Amplifier: Class-AB Rated at 50 W
MF Amplifier: Class-D Rated at 300 W
LF Amplifier: Class-D Rated at 500 W
Frequency Range 32 Hz to 50 kHz
Maximum Sound Pressure Level (SPL) 124 dB
Total Harmonic Distortion (THD) 0.4%
Maximum Input Level +24 dBu
EQ 1 x HF Shelf dB
1 x LF Shelf dB
Crossover Frequency Low-Pass: 250 Hz
High-Pass: 3 kHz
Audio I/O 1 x XLR Analog Input (48 Kilohms)
1 x XLR AES/EBU Digital Input
1 x XLR AES/EBU Digital Output
USB & Network I/O 1 x USB Type-B (Remote)
AC Input Power 100 to 240 VAC, 50/60 Hz
Power Consumption 550 W (Maximum)
Dimensions (W x H x D) 11.5 x 21.1 x 15″ / 293 x 536 x 380 mm
Weight 55.0 lb / 24.9 kg
Package Weight 61.75 lb
Box Dimensions (LxWxH) 28 x 19 x 16.5″
