Studio Monitors

Adam Audio S3H Active 3-Way Studio Monitor 2x7in Woofers Horizontal

Adam Audio

AED 18399 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: S3H Categories: , , Brand:

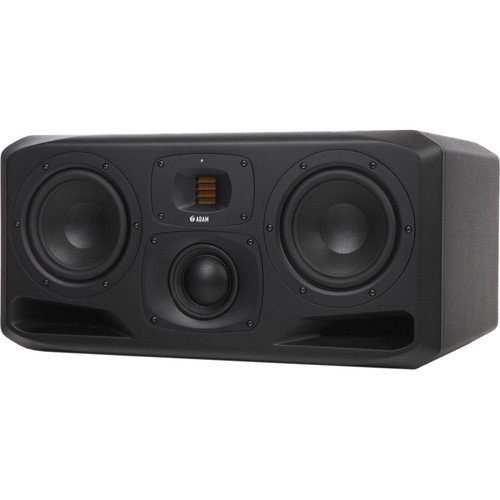

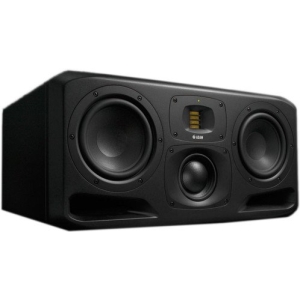

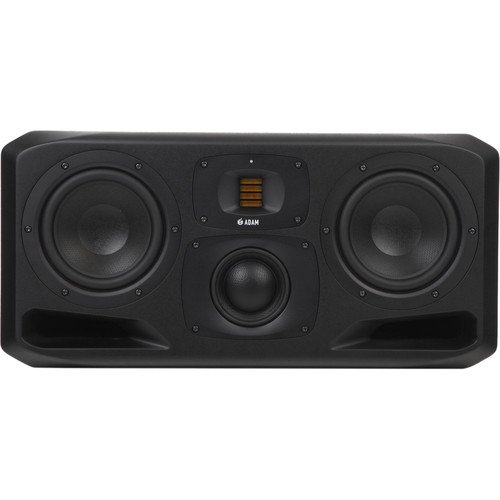

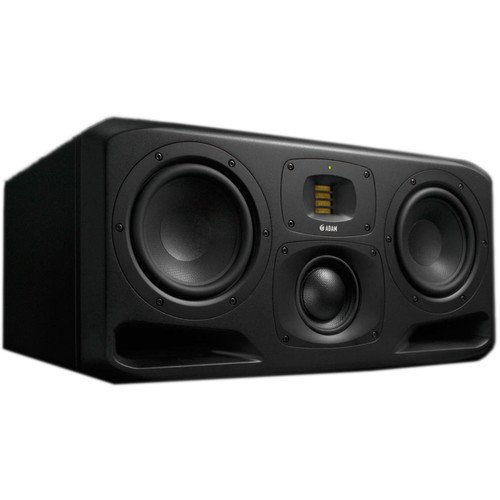

The S3H from Adam Professional Audio is an active studio reference monitor for horizontal placement in medium and smaller control rooms, delivering 1350W RMS with twin 7” HexaCone woofers, a 4” dome/cone hybrid midrange driver, and a folded-ribbon tweeter. Its waveguides and Adam-designed MPS and HPS provide a wide, stable sweet spot.

Description

The S3H from Adam Professional Audio is an active studio reference monitor designed for horizontal orientation in medium-sized and smaller control rooms. Capable of delivering 1350W RMS of cumulative amp power, it features two 7″ HexaCone woofers, one 4″ dome/cone hybrid midrange driver, and a handmade folded-ribbon tweeter. The waveguides, Adam-designed mid- and high-range propagation systems (MPS and HPS), ensure a wide, stable sweet spot.

Features

  • 2 x 7″ HexaCone Woofers
  • 4″ Dome/Cone Hybrid Midrange Driver
  • S-ART Tweeter with HPS Waveguide
  • 2 x 500W PWM (Class D) Woofer Amplifiers
  • 300W PWM (Class D) Midrange Amplifier
  • 50W Class A/B Tweeter Amplifier
  • 32 Hz – 50 kHz Frequency Response
  • Adjustable Input Sensitivity and Output
  • 6-Band Equalizer with HPF/LPF Filters
  • XLR Analog and Digital Inputs

Specifications

Specification Details
Monitor Type Active 3-Way
Enclosure Bass-Reflex, Shielded
Drivers HF Driver: 1 x 2″ / 50.8 mm Ribbon Tweeter
MF Driver: 1 x 4″ / 100 mm Composite Dome/Cone Hybrid
LF Driver: 2 x 7″ / 178 mm HexaCone Woofer
Amplification HF Amplifier: Class-AB Rated at 50 W
MF Amplifier: Class-D Rated at 300 W
2 x LF Amplifier: Class-D Rated at 500 W
Frequency Range 32 Hz to 50 kHz
Maximum SPL 126 dB
THD 0.4%
Maximum Input Level +24 dBu
EQ 1 x HF Shelf dB
1 x LF Shelf dB
Crossover Frequency Low-Pass: 250 Hz
High-Pass: 3 kHz
Audio I/O 1 x XLR Analog Input (48 Kilohms)
1 x XLR AES/EBU Digital Input
1 x XLR AES/EBU Digital Output
USB & Network I/O 1 x USB Type-B (Remote)
AC Input Power 100 to 240 VAC, 50/60 Hz
Power Consumption 550 W (Maximum)
Dimensions 23 x 11 x 15″ / 585 x 280 x 380 mm
Weight 58.6 lb / 26.6 kg
Package Weight 70.5 lb
Box Dimensions (LxWxH) 27.5 x 19 x 18″
