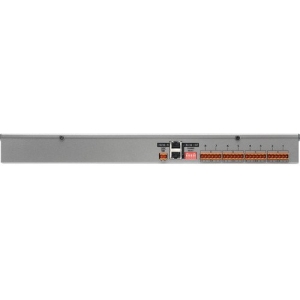

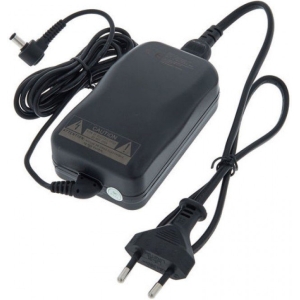

The BLU-50 is a half-rack width processor featuring four inputs and four outputs with configurable signal and logic processing, and a 48-channel BLU link digital audio bus. It offers software configurable gain, phantom power, and LED indicators for signal monitoring. Power options include an included 12VDC supply, 12-48VDC via a terminal block, or PoE+ through the Ethernet port. Controlled via HiQnet Audio Architect™ or HiQnet London Architect™, the BLU-50 integrates seamlessly with other Soundweb London devices, supporting distances up to 100m with standard cabling and beyond 10km using fiber media converters.

The BSS Audio BLU-DAN Bridge Processor provides Dante/AES67 connectivity for BLU Link devices, supporting 64 x 64 channels at 48 kHz. Features include primary and secondary RJ45 ports for fault tolerance, an additional RJ45 and RS-232 port for control, LED indicators, HiQnet Audio Architect compatibility, and a half-rack design. It comes with Cat 5e/6 cable compatibility up to 328′, rack mounting hardware, power cable, and rubber feet.

The BSS Audio Soundweb London BLU-100 12×8 Signal Processor is a networked audio routing DSP processor with 12 inputs, 8 outputs, configurable signal processing, and a 48-channel digital audio bus. It supports full configuration via HiQnet London Architect and offers a low-latency, fault-tolerant connection using standard Category 5e cabling up to 100 yards, extendable to over 24 miles with fiber media converters.

The Soundweb London BLU-BOB1 “break-out box” provides 8 channels of analog audio output expansion through a high bandwidth, fault-tolerant digital audio bus. It features a digital audio bus with 256 channels, low latency, and uses Category 5e cabling for up to 100 meters between devices. The 8 analog outputs use terminal block connectors similar to other Soundweb London products.

The 1260/1261 ZonePRO systems are designed for superior audio performance and flexibility, featuring Euroblock and RCA connectors for reliable interfacing with both professional and consumer equipment. They include comprehensive input processing tools such as gain control, EQ, paging microphone management, and more. The central Routing module supports primary source selection and source ducking. Outputs provide advanced processing like AutoWarmth® for low-frequency extension, EQ, crossover filters, and delay, making these units ideal for scalable commercial audio applications.

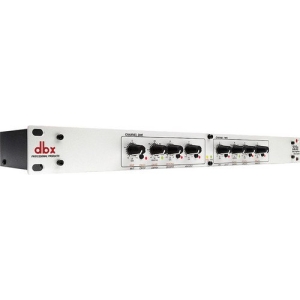

The dbx® 234s Crossover is a dual channel audio device designed to optimize speaker performance by using precision filters to separate audio signals and direct specific frequencies to the appropriate loudspeaker drivers. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls, output phase inversion, a 40 Hz low cut filter, and an optional mono summing for subwoofer output. The 234s ensures ultra low-noise operation and rugged reliability with high-quality 1/4″ TRS inputs and outputs.

The ZonePRO 640/641 systems deliver exceptional sonic performance with versatile input and output connections, including balanced Euroblock connectors, RCA interfaces for consumer equipment, and an analog input buss for scalable integration. These devices offer comprehensive processing tools such as gain control, EQ, paging microphone processing, Auto Gain Control, Compression, Feedback Suppression, and the patent-pending AutoWarmth® function for natural low-frequency enhancement. The Routing module enables primary source selection, source ducking, and priority override, while output features include EQ, Bandpass, Crossover filters, Limiting, and Delay for optimal commercial audio systems.

The ZonePRO 641/641 are designed for superior sonic performance and flexibility, featuring Euroblock and RCA connectors for balanced signals and consumer equipment. They offer comprehensive input processing tools including gain control, EQ, selectable paging microphone processing, and advanced functions like Auto Gain Control and Feedback Suppression. The routing module provides Primary Source Selection and Source Ducking. Outputs include processing tools such as AutoWarmth®, EQ, bandpass filters, and limiting. These tools ensure system optimization and scalability, making them ideal for commercial applications.
