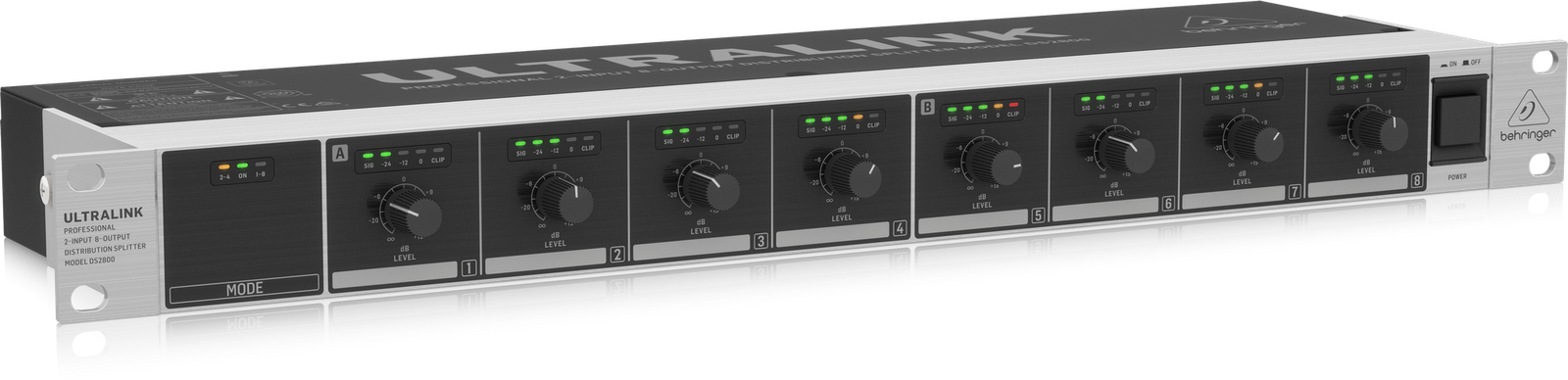

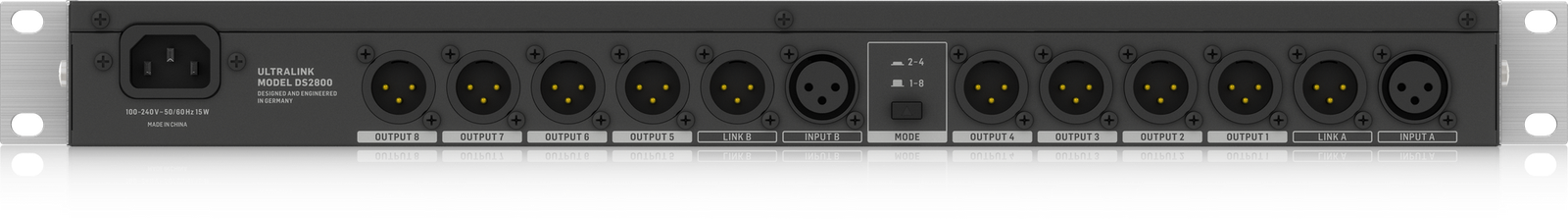

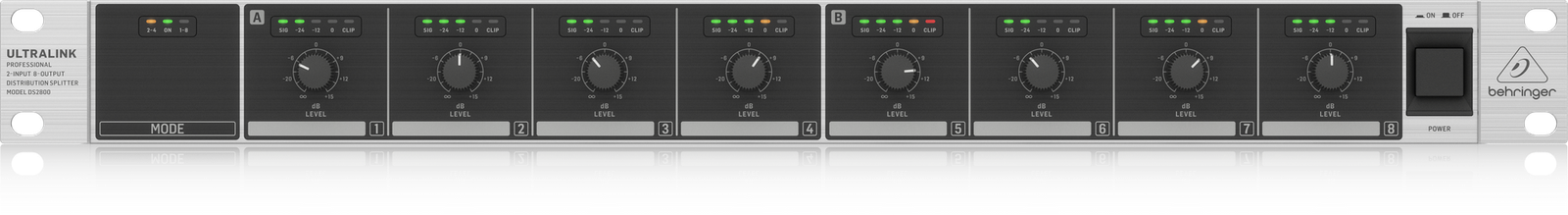

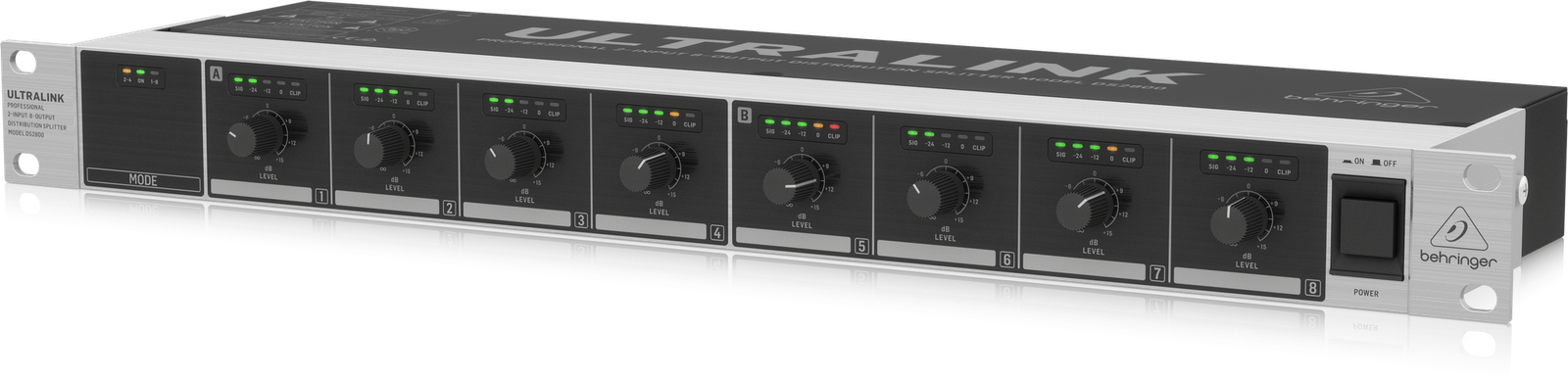

Behringer DS2800 Professional 2-Input 8-Output Distribution Splitter

Behringer

AED 684.60 inc VAT.

When it comes to providing signal distribution in commercial sound applications, the DS2800 Professional 2-Input 8-Output Distribution Splitter is the leader in its class. Extremely flexible and easy to use, the DS2800 features two modes of operation that allow you to send either 2 audio signals to 4 separate zones, or a single signal to up to 8. This level of versatility makes the DS2800 the ideal choice for a wide range of applications including everything from recording studios to shops, restaurants and more.

In stock
Enquiry Now
30 people are viewing this right now
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DS2800 Category: Brand:

Description

When it comes to providing signal distribution in commercial sound applications, the DS2800 Professional 2-Input 8-Output Distribution Splitter is the leader in its class. Extremely flexible and easy to use, the DS2800 features two modes of operation that allow you to send either 2 audio signals to 4 separate zones, or a single signal to up to 8. This level of versatility makes the DS2800 the ideal choice for a wide range of applications including everything from recording studios to shops, restaurants and more.



Features

  • Ultra-flexible and easy-to-use distribution splitter for commercial sound applications
  • Dual mode 2-In / 4 out or 1-in / 8-out operation
  • 2 ultra-low noise line inputs with separate link output connectors
  • 8 output channels each featuring independent level controls
  • 5-segment LED meters for each output to indicate signal activity
  • Servo-balanced inputs and outputs with gold-plated XLR connectors
  • Internal switch-mode power supply (100 – 240 V~) for noise-free audio and low power consumption



Specifications

Audio Connections

Input A / B XLR, balanced
Input impedance 10 kΩ balanced, 6.6 kΩ unbalanced
Max. input level +21 dBu
CMRR 64 dB typ. @ 1 kHz
Link A / B XLR, balanced
Output 1 – 8 XLR, balanced
Max. output level +28 dBu
System
Frequency response 10 Hz to 75 kHz (±3 dB)
Dynamic range 117 dB
Distortion (THD) 0.001% typ. @ +4 dBu, 1 kHz, Gain 1
Crosstalk < -77 dB @ 1 kHz
Signal-to-noise ratio 20 Hz to 20 kHz, > 97 dB @ 0 dBu
Function Controls / Switches
Output level -∞ … + 15 dB, variable
Mode 1 – 8 / 2 – 4, switchable
Displays
Power ON LED indicator
Output level 5-digit LED display: sig / -24 / -12 / 0 / clip
Mode Status LED Indicator
Power Supply
Type Switch-mode autorange power supply
Mains voltage 100-240 V, 50/60 Hz
Power consumption 15 W
Mains connection Standard IEC receptacle
Dimension / Weight
Dimensions (H x W x D) 44 x 483 x 148 mm (1.7 x 19.0 x 5.8″)
Weight 1.6 kg (3.5 lbs)
